3 Phase Online Data Center UPS System 800kVA

True Modular UPS
Adaptable 50 to 800 kVA power capacity
50 kVA UPS module (CM50)
Configuration: 16 slots
Top or bottom feed
Hot-swappable, field-replaceable Bypass module, Display module, UPS module
Key Application: Data Center

3 Phase UPS power protection, solving today’s energy challenges while setting the standard for quality and innovation with fully integrated solutions for enterprise-wide networks, data centers, mission-critical systems, and industrial/manufacturing processes.

single chassis 800kVA, max 3200kVA via parallel.


Inquiry now

UPS Overview

CMS Ture Modular No-break, its architecture can scale power as demand grows or as higher levels of availability are required, perfect integrating into Modern Data Center designs. Online Double Conversion UPS, industry-leading efficiency, availability, and performance for small, medium, large data centers and mission critical environments.

Non-isolated 3 Phase Online UPS power protection system designed to cost effctively provide high levels of availability · Sicon CMS Modular Uninterruptible Power Supply

CMS 380VAC 400VAC 415VAC 3 Phase UPS Products: 7 system frame, 3 ups module, which is designed basing on rational redundancy and projects requiement.

System frame: 50kva, 100kva, 150kva, 250kva, 350kva, 500kva, 800kva. Power module: 10kva, 25kva, 50kva. With full range ups, Sicon offer the most reasonable, cost-effective solution for projects.

Meantime, basing on rack-mount ups solution requirement, Sicon launched CMS/A Rack-Independent Technology Modular UPS basing on 25kva ups module with 100kva/200kva base unit in 2015, leading in Market.

800kVA UPS is good for Data Center projects. Sicon Data Center Solution Installation Samples:

Key Projects - 43.6MVA UPS Installed at a Cloud Data Center in Beijing

China Unicom Data Center Works with Sicon


800kVA Sicon Modular UPS Features

3/3// Uninterruptible Power Supplies 50kVA- 100kVA -150kVA -200kVA -250kVA -300kVA -350kVA -400kVA -450kVA to -to 800kVA

UPS module: 50 kVA

System frame/chassis: 350kVA, 500kVA, 800kVA

Excellent power capability

800kVA single chassis, parallelable up to 3200kVA

Transformer Free UPS technology,  lower space and weight

Online double Conversion (VFI-SS-111) · Rational redundant structure · N+X redundancy

High efficiency · AC/DC, DC/AC 95%, DC/AC 98% efficiency

Input low current harmonic distortion · THDI ≤ 3%

High input power factor · input PF ≥ 0.99

High output power factor · Output PF = 0.9

Static and Maintenance bypass switch

Short circuit and overload protection

RS232 serial ports and dry contacts

Multi-level decentralized control technology and Master-slave synchronization in sequency control

Each module automatically even shares the input and output current, all UPS modules share batteries

Selectable input/ output voltage/ frequency range

Split by-pass

Battery management:

Battery discharge management

Auto-transfer between floating and even charging

Temperature compensation

Optional SNMP, Modbus adapters

Optional configuration: GENSET, EPO, Transformer, Battery Bank, IPDS

2 year warranty

10 years spare parts support

high frequency ups

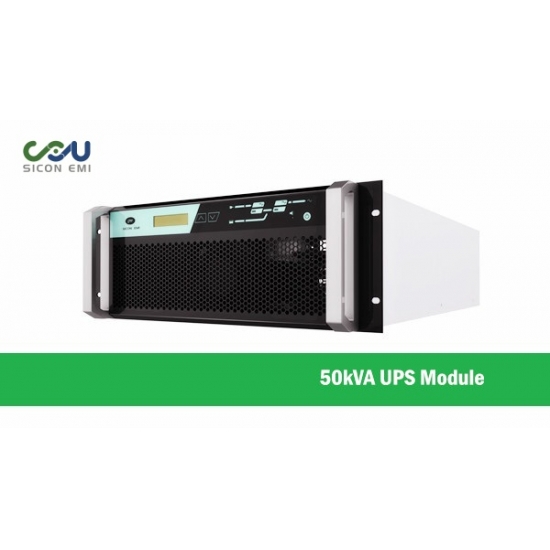

50kVA UPS module

4U with readable LCD screen · Isolated airflow with redundant fans · High power density · High efficiency · Autonomous Start-up · Cold start

Full functioned UPS, delivering a combination of converter, inverter, charger and controller


STS Module

Parallel of SCR and AC Contactor

Online replace without shutdown system · High reliablity and overload ability · Transfer time within 1ms · Self-diagnose, interlock


Application


IDC date center · Government · Telecom · Bank · Security · Transportation · Broadcast&TV network · HealthCare · Communication · E-business · Finance · etc.




Products

Model

Contact Sicon

Sicon CMS 10kVA, Scalable to 50kVA, 380V 400V 415V

CMS-50/10

enquiry@scupower.com

Sicon CMS 10kVA, Scalable to 100kVA, 380V 400V 415V

CMS-100/10

enquiry@scupower.com

Sicon CMS 25kVA, Scalable to 150kVA, 380V 400V 415V

CMS-150/25

enquiry@scupower.com

Sicon CMS 25kVA, Scalable to 200kVA, 380V 400V 415V

CMS/A-100, CMS/A-200

enquiry@scupower.com

Sicon CMS 25kVA, Scalable to 250kVA, 380V 400V 415V

CMS-250/25

enquiry@scupower.com

Sicon CMS 50kVA, Scalable to 350kVA, 380V 400V 415V

CMS-350/50

enquiry@scupower.com

Sicon CMS 50kVA, Scalable to 500kVA, 380V 400V 415V

CMS-500/50

enquiry@scupower.com

Sicon CMS 50kVA, Scalable to 800kVA, 380V 400V 415V

CMS-800/50

enquiry@scupower.com

Sicon CMS 15kVA, Scalable to 90kVA, 208V 220V 3P5W

CMS-90/15UH5

enquiry@scupower.com

Sicon CMS 15kVA, Scalable to 120kVA, 208V 220V 3P5W

CMS-120/15UH5

enquiry@scupower.com

Sicon CMS 15kVA, Scalable to 150kVA, 208V 220V 3P5W

CMS-150/15UH5

enquiry@scupower.com

Sicon CMS 15kVA, Scalable to 90kVA, 208V 220V 3P3W+PE

CMS-90/15

enquiry@scupower.com

Sicon CMS 15kVA, Scalable to 120kVA, 208V 220V 3P3W+PE

CMS-120/15

enquiry@scupower.com

Sicon CMS 15kVA, Scalable to 150kVA, 208V 220V 3P3W+PE

CMS-150/15

enquiry@scupower.com

Sicon ERMS 6kVA, Scalable to 12kVA, 220V 230V 240V 1P3W

ERMS-12/6

enquiry@scupower.com

Sicon ERMS 6kVA, Scalable to 24kVA, 220V 230V 240V 1P3W

ERMS-24/6

enquiry@scupower.com

Sicon ERMS 6kVA, Scalable to 36kVA, 380V 400V 415V

ERMS-36/6

enquiry@scupower.com


Sicon Solutions

Industrial Modular UPS N+X Solution

2N Power Solution


Sicon References

Sicon UPS at International Fair

Astronomy Case-Sicon Modular UPS Applied to the World’s Largest Single-aperture Telescope Base


Sicon Online Show Room

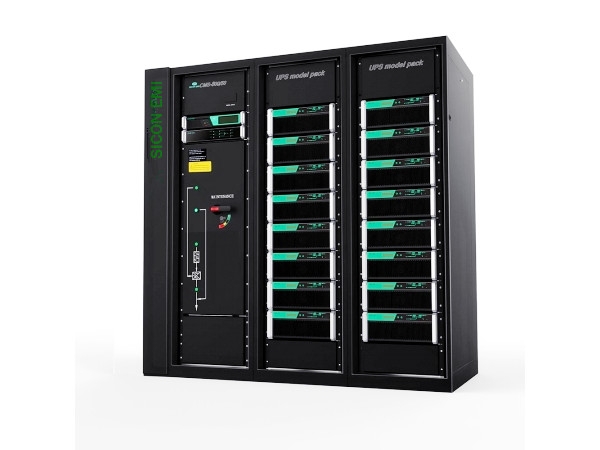

CMS-800/50
Adaptable 50 to 800 kVA power capacity
50 kVA UPS module (CM50)
Configuration: 16 slots
Components: STS module, Monitor module, UPS module, Power distribution
Top or bottom feed
System Dimensions:2200*1000*2000(W*D*H)mm
Module Dimensions:482*700*176(W*D*H)mm


Sicon800KVA Modular UPS

System model

CMS-800/50

Maximum power

800KVA

Power module model

50KVA

Mains Input

Input mode

3-phase +N +E

Input voltage

±20% (380V|400V|415V)

Input frequency

50Hz±10%, 60Hz±10%

Power woke-in (Sec.)

60sec

THDI (%)

<3%

Input PF

≥0.99

Bypass Input

Input voltage

±20% (380V| 400V|415V)

Input frequency

50 Hz, 60 Hz

Range of Frequency Synchro

50 Hz±4%, 60 Hz±4%

DC Input

Rated Input voltage

+384VDC, -384VDC

Input voltage tolerance

±345V~±440V DC

Battery charging

Charging current limited

yes

Charging ability

10 hours (2 hours back up)

Stability of charging voltage

±1%

AC output

UPS power factor

1

Output voltage

380VAC, 400VAC, 415VAC

Output frequency

±4%;±0.2% (battery supply)

Output voltage stability

±1%

Output voltage recovering time

<20ms (load 0~100% change)

Overload ability

Operate 10mins with 125% load

Transfer from mains to battery supply

0ms

Transfer from bypass to inverter supply

<1ms

Peak factor

0.125694444

Waveform distortion

≤1% ( linear load ), ≤3%( non-linear load )

Overall efficiency

≥95% (AC~AC), ≥98% (DC~AC)

Load share precision

≤5%

Operation environment

Ambient temperature

-25℃~60℃

Operating temperature

-5℃~40℃

Maximum operation altitude

≤1500m

Relative humidity

≤95% non-cadency

Protection degree

IP30

Cooling

Air cooling

Applicable safety standards

EN62040-1-1:2003 IEC60950-1:2001

Electromagnetic compatibility

EN62040-2:2006

Acoustic noise

≤55DB

Others

Cabinet

Standard 19 inch cabinet

Monitor management system

UPSupervisor

Interface

RS232, RS485 and 8 try contact, TCP/IP adapter, SNMP(optional)

Display

Touch LCD/LED Screen

Weight(kg)

700
