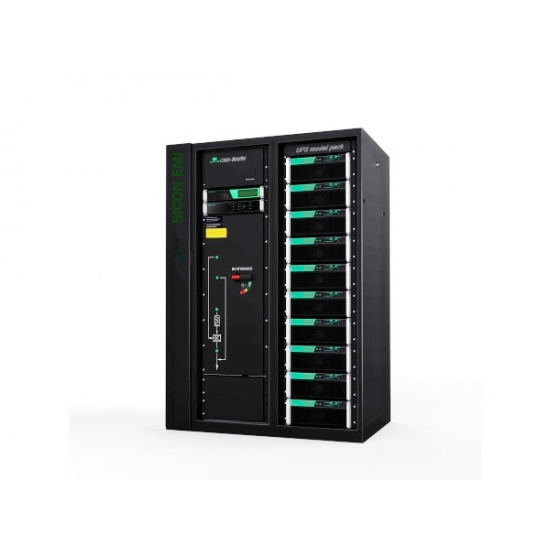

3 Phase Online UPS Solution 500kVA

True Modular No-break

Max Power: 500kVA

UPS Chassis: 500kVA

UPS module: 50kVA (4U)

3/3// 380VAC 400VAC 415VAC

Hot-swappable UPS module, Bypass module, Display module


3 Phase UPS power protection, solving today’s energy challenges while setting the standard for quality and innovation with fully integrated solutions for enterprise-wide networks, data centers, mission-critical systems, and industrial/manufacturing processes.

Dimension: 1400*1000*2000(mm, w*d*h)

Inquiry now

Overview

Sicon CMS is non-isolated, world class, redundant, scalable, 3 Phase Online UPS power protection system designed to cost effctively provide high levels of availability. Sicon CMS is a true modular uninterruptible power supply, its architecture can scale power as demand grows or as higher levels of availability are required, perfect integrating into today's data center designs. Sicon CMS online double conversion ups is industry-leading efficiency, availability, and performance for small, medium, large data centers and mission critical environments.

Breif introduction for Sicon CMS 380VAC 3 Phase UPS Products Range: 7 type system chassis, 3 type ups module, which is designed basing on rational redundancy and projects requiement.

Basing on these products, Sicon offer the most reasonable, cost-effective modular ups solution for projects.

Sicon UPS Install Reference | Sicon Plant | Sicon Support



500kVA Sicon Modular UPS Features

Uninterruptible Power Supplies 50kVA- 100kVA -150kVA - to -to 500kVA

System frame/chassis: 350kVA, 500kVA, 800kVA

UPS module: 50 kVA

500kVA single chassis, parallelable up to 2000kVA

Online double Conversion (VFI-SS-111) · Rational redundant structure · N+X redundancy

Excellent power capability

Transformer Free UPS technology,  lower space and weight

High efficiency · AC/DC, DC/AC 95%, DC/AC 98% efficiency

Input low current harmonic distortion · THDI ≤ 3%

High input power factor · input PF ≥ 0.99

High output power factor · Output PF = 0.9

Static and Maintenance bypass switch

Short circuit and overload protection

RS232 serial ports and dry contacts

Multi-level decentralized control technology and Master-slave synchronization in sequency control

Each module automatically even shares the input and output current, all UPS modules share batteries

Selectable input/ output voltage/ frequency range

Split by-pass

Battery management:

Battery discharge management| Auto-transfer between floating and even charging| Temperature compensation

Optional SNMP, Modbus adapters

Optional configuration: GENSET, EPO, Transformer, Battery Bank, IPDS

high frequency ups| 2 year warranty| 10 years spare parts support



Bypass Module

Parallel of SCR and AC Contactor

Online replace without shutdown system · High reliablity and overload ability · Transfer time within 1ms · Self-diagnose, interlock


50kVA UPS module

4U with readable LCD screen · Isolated airflow with redundant fans · High power density · High efficiency · Autonomous Start-up · Cold start

Full functioned UPS, delivering a combination of converter, inverter, charger and controller



Application
IDC Date Center · Government · Telecom · Bank · HealthCare · Communication · E-business · Finance · Security · Transportation · Broadcast&TV network · etc.




Products

Model

Contact Sicon

Sicon CMS 10kVA, Scalable to 50kVA, 380V 400V 415V

CMS-50/10

enquiry@scupower.com

Sicon CMS 10kVA, Scalable to 100kVA, 380V 400V 415V

CMS-100/10

enquiry@scupower.com

Sicon CMS 25kVA, Scalable to 150kVA, 380V 400V 415V

CMS-150/25

enquiry@scupower.com

Sicon CMS 25kVA, Scalable to 200kVA, 380V 400V 415V

CMS/A-100, CMS/A-200

enquiry@scupower.com

Sicon CMS 25kVA, Scalable to 250kVA, 380V 400V 415V

CMS-250/25

enquiry@scupower.com

Sicon CMS 50kVA, Scalable to 350kVA, 380V 400V 415V

CMS-350/50

enquiry@scupower.com

Sicon CMS 50kVA, Scalable to 500kVA, 380V 400V 415V

CMS-500/50

enquiry@scupower.com

Sicon CMS 50kVA, Scalable to 800kVA, 380V 400V 415V

CMS-800/50

enquiry@scupower.com

Sicon CMS 15kVA, Scalable to 90kVA, 208V 220V 3P5W

CMS-90/15UH5

enquiry@scupower.com

Sicon CMS 15kVA, Scalable to 120kVA, 208V 220V 3P5W

CMS-120/15UH5

enquiry@scupower.com

Sicon CMS 15kVA, Scalable to 150kVA, 208V 220V 3P5W

CMS-150/15UH5

enquiry@scupower.com

Sicon CMS 15kVA, Scalable to 90kVA, 208V 220V 3P3W+PE

CMS-90/15

enquiry@scupower.com

Sicon CMS 15kVA, Scalable to 120kVA, 208V 220V 3P3W+PE

CMS-120/15

enquiry@scupower.com

Sicon CMS 15kVA, Scalable to 150kVA, 208V 220V 3P3W+PE

CMS-150/15

enquiry@scupower.com

Sicon ERMS 6kVA, Scalable to 12kVA, 220V 230V 240V 1P3W

ERMS-12/6

enquiry@scupower.com

Sicon ERMS 6kVA, Scalable to 24kVA, 220V 230V 240V 1P3W

ERMS-24/6

enquiry@scupower.com

Sicon ERMS 6kVA, Scalable to 36kVA, 380V 400V 415V

ERMS-36/6

enquiry@scupower.com


Sicon Solutions

Industrial Modular UPS N+X Solution

2N Power Solution


Sicon References

Sicon UPS at International Fair

Astronomy Case-Sicon Modular UPS Applied to the World’s Largest Single-aperture Telescope Base


Sicon Online Show Room

Sicon Data Center Solution Installation Samples:

Key Projects - 43.6MVA UPS Installed at a Cloud Data Center in Beijing

China Unicom Data Center Works with Sicon

Product :  CMS-500/50
Adaptable 50 to 500 kVA power capacity
50 kVA UPS module (CM50)
Configuration: 10 slots
Components: STS module, Monitor module, UPS module, Power distribution
Top or bottom feed
System Dimensions:1400*1000*2000(W*D*H)mm
Module Dimensions:482*700*176(W*D*H)mm

Sicon 500KVA Modular UPS

System model

CMS-500/50

Maximum power

500KVA

Power module model

50KVA

Mains Input

Input mode

3-phase +N +E, 1-phase +N +E

Input voltage

380V/220V±20%, 400V/230V±20%, 415V/240V±20%

Input frequency

50Hz±10%, 60Hz±10%

Power woke-in (Sec.)

60sec

THDI (%)

<3%

Input PF

≥0.99

Bypass Input

Input voltage

380V/220V±20%, 400V/230V±20%, 415V/240V±20%

Input frequency

50 Hz, 60 Hz

Range of Frequency Synchro

50 Hz±4%, 60 Hz±4%

DC Input

Rated Input voltage

±384VDC

Input voltage tolerance

±345V~±440V DC

Battery charging

Charging current limited

yes

Charging ability

10 hours (2 hours back up)

Stability of charging voltage

±1%

AC output

UPS power factor

1

Output voltage

380V/220V AC, 400V/230V AC, 415V/240V AC

Output frequency

±4%;±0.2% (battery supply)

Output voltage stability

±1%

Output voltage recovering time

<20ms (load 0~100% change)

Overload ability

Operate 10mins with 125% load

Transfer from mains to battery supply

0ms

Transfer from bypass to inverter supply

<1ms

Peak factor

0.125694444

Waveform distortion

≤1% ( linear load ), ≤3%( non-linear load )

Overall efficiency

≥95% (AC~AC), ≥98% (DC~AC)

Load share precision

≤5%

Operation environment

Ambient temperature

-25℃~60℃

Operating temperature

-5℃~40℃

Maximum operation altitude

≤1500m

Relative humidity

≤95% non-cadency

Protection degree

IP30

Cooling

Air cooling

Applicable safety standards

EN62040-1-1:2003 IEC60950-1:2001

Electromagnetic compatibility

EN62040-2:2006

Acoustic noise

≤55DB

Others

Cabinet

Standard 19 inch cabinet

Monitor management system

UPSupervisor

Interface

RS232, RS485 and 8 try contact, TCP/IP adapter, SNMP(optional)

Display

Touch LCD/LED Screen

Weight(kg)

500
