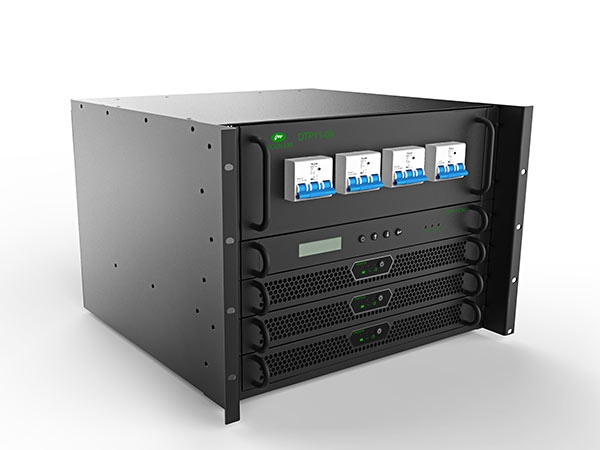

9KVA 48V Modular Inverter

Modular architecture
System power: 9KVA
Module power: 3KVA
Dimension (H×W×D) mm: 320*442*420
Inquiry now

Overview

Sicon DTP-09 Modular Inverter is pure sine wave, single phase, DC-AC inverter for critical telecom and electric power equipments. The DC input could be 48Vdc,110Vdc or 220Vdc.It is modular architecture,consisting of system rack and inverter modules, which could configure various power capacities by adding modules. With N+1 redundant design, if one inverter fails,it will withdraw from the system and the inverter system keeps supply to load.

· Versatile modular inverter system provides flexible power for telecom applications
· Expandable capacity up to 9kVA | inverter module 3kVA
· “All master” dynamic mechanism eliminates single point failure to optimize reliability
· Hot-swappable operation allows module addition or removal without powering down
· High power density and high efficiency


Feature

   1.Monitor module and inverter module are all hot swap, with self-detection and alarm function
   2.User friendly LCD+LED, accurate display of system operation statues
   3.Performance index indication and display, event record for failure tracing
   4.Protection functions: input/output under or over voltage,overload protection to protect load equipment
   5.System transfer: fast transfer under synchronize or non-synchronize
   6.Communication interface: output dry contact, RS232/485
   7.DC priority or AC priority(bypass) are available. And user could choose one as priority in monitor module.
Application

   Telecommunication station, electrical substation and environments with poor utility grid conditions.


Related Products,

Modular Inverter Model Contact Sicon
Sicon DTP 3kVA, Scalable to 9kVA, 220V 230V 240V DTP11-09 enquiry@scupower.com
Sicon DTP 3kVA, Scalable to 18kVA, 220V 230V 240V DTP11-18 enquiry@scupower.com
Sicon DTP 3kVA, Scalable to 24kVA, 220V 230V 240V DTP11-24 enquiry@scupower.com
Monoblock Inverter
Sicon DHP 1kVA 220V 230V 240V DHP11-1kVA enquiry@scupower.com
Sicon DHP 2kVA 220V 230V 240V DHP11-2kVA enquiry@scupower.com
Sicon DHP 3kVA 220V 230V 240V DHP11-3kVA enquiry@scupower.com
Modular UPS
Sicon ERMS 6kVA, Scalable to 12kVA, 220V 230V 240V 1P3W ERMS-12/6 enquiry@scupower.com
Sicon ERMS 6kVA, Scalable to 24kVA, 220V 230V 240V 1P3W ERMS-24/6 enquiry@scupower.com
Sicon ERMS 6kVA, Scalable to 36kVA, 220V 230V 240V 1P3W ERMS-36/6 enquiry@scupower.com


DTP11-09

System power: 9KVA
Module power: 3KVA
Dimension (H×W×D) mm: 320*442*420



Model DTP11-09
Max Capacity 9KVA (3 Modules Parallel )
DC Input Rated Voltage 48VDC, 110VDC, 220VDC
Voltage Range 42V57V, 94V128V, 189V256V
Input Reflected Wind Band Noise Current 10%
Input Reflected Weight Noise Current 1%
AC Output Output Voltage 220V/ 230V/ 240V
Voltage Precision ±1%
Output Frequency 50Hz/60Hz±1%
60Hz±0.6
Power Factor 0.8
Voltage Distortion 3% (Liner Load) / 5% (Non-Liner Load)
Load Peak Factor 3
Overall Efficiency ≥90%
Load Share Precision ≤5%
Overload Capacity 105~125% Load ≥60s; 126~150% Load ≥10s
Transfer Time ≤4ms
Environment Operating Temperature -5~40
Relative Humidity ≤ 93% Non-Cadency
Ambient Temperature -40~70 96% Non-Cadency
Operating Altitude ≤1000m, De-Rating By1 Each 200m Higher
Mechanical Acoustic Noise: (1m) ≤65DB
DimensionH× W×DMm 320*442*420
Rack Weight 23kg
Safety Compliance EN62040-1-1:2003 EN60950-1:2001
EN61000-4-6
RS232, RS485
Environmental Compliance ETS300 753
