ERMS Modular UPS 6-36kVA

19’’ shelf Truly Modular UPS
Full UPS functioned UPS Module
System Capicity: 6kVA - 36kVA , 6kVA UPS Module
High Frequency MODULAR UPS
Modular,hot-swappable, field-replaceable Monitor, UPS module.
Embedded modular power protection with ultra high availability and efficiency for Small Date Center.

Inquiry now Download

Overview
Sicon ERMS Uninterruptible Power Supplies is an embedded rack-mount online UPS with 1 phase ups module of low and medium power developed by SCU. With flexible structure, it could be embedded into standard 19 inch cabinet or work independently for de-centralized power supply. Sicon ERMS provides integrated power solution. Internal battery module and output PDU are available for optional configuration. It features superb input and output performance indexes. As a product with the smallest size, the highest efficiency and the greatest power density in the industry, it boasts extremely high cost-efficiency.

ups install reference | more about sicon plant | sicon support


6-36kVA Feature
 19''shelf embedded structure

 UPS module: 6 kVA; System: 12kVA, 24 kVA, 36kVA.

 Online double Conversion ups (VFI-SS-111) · Rational redundant structure · N+X redundancy

 Great performance index
     overall efficiency ≥ 95%(AC-AC), inverter efficiency ≥ 98%(DC-AC), THDI ≤ 3%, and input PF ≥ 0.99
 N+X module-level redundancy UPS System
 Multi-level decentralized control technology and Master-slave synchronization in sequency control which result in eliminate system failure bottleneck
 Each module automatically even shares the input and output current, all UPS modules share batteries
 Battery management:
 Battery discharge management, auto-transfer between floating and even charging, temperature compensation
 Monitor Function
    C/S-Oriented Architecture SICON Software which is available to monitor multiple UPS up to 600 sets;
    B/S-Oriented Architecture which is available to check via IE

 Standard configuration Manual bypass, RS232, RS485, dry contacts for local and remote communication

 Optional SNMP, Modbus adapters

 Optional configuration Input/output Transformer, Battery Bank, IPDS(Intelligent Power Distribution System)


 ERMS-36/6 with 3pcs or 6pcs ups module available with 3/1, 3/3, 1/3.


Application

Small server room, network, bank, security, transportation, broadcast&TV network, HealthCare, Communication, Finance



Products

Model

Contact Sicon

Sicon CMS 10kVA, Scalable to 50kVA, 380V 400V 415V

CMS-50/10

enquiry@scupower.com

Sicon CMS 10kVA, Scalable to 100kVA, 380V 400V 415V

CMS-100/10

enquiry@scupower.com

Sicon CMS 25kVA, Scalable to 150kVA, 380V 400V 415V

CMS-150/25

enquiry@scupower.com

Sicon CMS 25kVA, Scalable to 200kVA, 380V 400V 415V

CMS/A-100, CMS/A-200

enquiry@scupower.com

Sicon CMS 25kVA, Scalable to 250kVA, 380V 400V 415V

CMS-250/25

enquiry@scupower.com

Sicon CMS 50kVA, Scalable to 350kVA, 380V 400V 415V

CMS-350/50

enquiry@scupower.com

Sicon CMS 50kVA, Scalable to 500kVA, 380V 400V 415V

CMS-500/50

enquiry@scupower.com

Sicon CMS 50kVA, Scalable to 800kVA, 380V 400V 415V

CMS-800/50

enquiry@scupower.com

Sicon CMS 15kVA, Scalable to 90kVA, 208V 220V 3P5W

CMS-90/15UH5

enquiry@scupower.com

Sicon CMS 15kVA, Scalable to 120kVA, 208V 220V 3P5W

CMS-120/15UH5

enquiry@scupower.com

Sicon CMS 15kVA, Scalable to 150kVA, 208V 220V 3P5W

CMS-150/15UH5

enquiry@scupower.com

Sicon CMS 15kVA, Scalable to 90kVA, 208V 220V 3P3W+PE

CMS-90/15

enquiry@scupower.com

Sicon CMS 15kVA, Scalable to 120kVA, 208V 220V 3P3W+PE

CMS-120/15

enquiry@scupower.com

Sicon CMS 15kVA, Scalable to 150kVA, 208V 220V 3P3W+PE

CMS-150/15

enquiry@scupower.com

Sicon ERMS 6kVA, Scalable to 12kVA, 220V 230V 240V 1P3W

ERMS-12/6

enquiry@scupower.com

Sicon ERMS 6kVA, Scalable to 24kVA, 220V 230V 240V 1P3W

ERMS-24/6

enquiry@scupower.com

Sicon ERMS 6kVA, Scalable to 36kVA, 380V 400V 415V

ERMS-36/6

enquiry@scupower.com


Sicon Solutions

Industrial Modular UPS N+X Solution

2N Power Solution


Sicon References

Sicon UPS at International Fair

Astronomy Case-Sicon Modular UPS Applied to the World’s Largest Single-aperture Telescope Base


Sicon Online Show Room

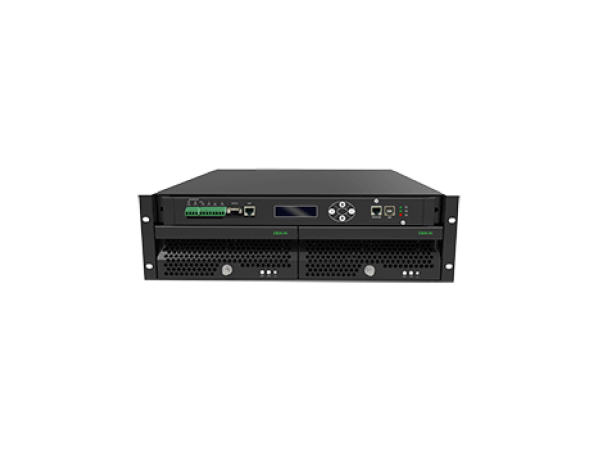

Product :  ERMS-12/6
System Max. Power: 12KVA
Module Model: ERM-06
Condiguration: 2 slots
Dimensions: 480*600*132W*D*H(mm)
Wire in/out mode: 1/1


 ERMS-12/6 12kVA Modular UPS

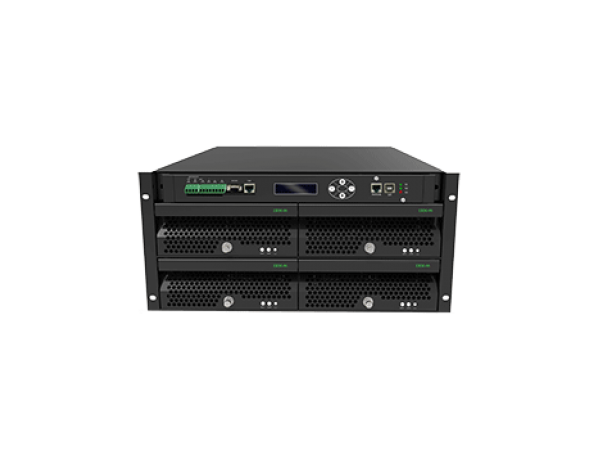

Product :  ERMS-24/6
System Max. Power: 24KVA
Module Model: ERM-06
Condiguration: 4 slots
Dimensions: 480*600*220 W*D*H(mm)
Wire in/out mode: 1/1


 ERMS-24/6 24kVA Modular UPS

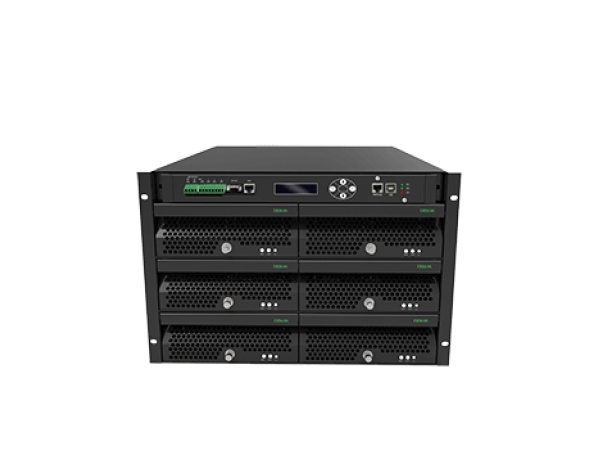

Product :  ERMS-36/6
System Max. Power: 36KVA
Module Model: ERM-06
Condiguration: 6 slots
Dimensions: 480*600*310W*D*H(mm)
Wire in/out mode: 1/1, 1/3, 3/1, 3/3


 ERMS-36/6 36kVA Modular UPS

     UPS Modular 25-200kVA (Rack independent)

System model

ERMS-12/6

ERMS-24/6

ERMS-36/6

Maximum power

12KVA

24KVA

36KVA

Power module model

ERM-06

Mains Input

Input mode

3-phase +N +E, 1-phase +N +E

Input voltage

380V/220V±20%, 400V/230V±20%, 415V/240V±20%

Input frequency

50Hz±10%, 60Hz±10%

Power woke-in (Sec.)

60sec

THDI (%)

<3%

Input PF

≥0.99

Bypass Input

Input voltage

380V/220V±20%, 400V/230V±20%, 415V/240V±20%

Input frequency

50 Hz, 60 Hz

Range of Frequency Synchro

50 Hz±4%, 60 Hz±4%

DC Input

Rated Input voltage

±240VDC

Input voltage tolerance

±216V~±246V DC

Battery charging

Charging current limited

yes

Charging ability

10 hours (2 hours back up)

Stability of charging voltage

±1%

AC output

UPS power factor

0.9

Output voltage

380V/220V AC, 400V/230V AC, 415V/240V AC

Output frequency

±4%;±0.2% (battery supply)

Output voltage stability

±1%

Output voltage recovering time

<20ms (load 0~100% change)

Overload ability

Operate 10mins with 125% load

Transfer from mains to battery supply

0ms

Transfer from bypass to inverter supply

<1ms

Peak factor

3:01

Waveform distortion

≤1% ( linear load ),  ≤3%( non-linear load )

Overall efficiency

≥95% (AC~AC),  ≥98% (DC~AC)

Load share precision

≤5%

Operation environment

Ambient temperature

-25℃~60℃

Operating temperature

-5℃~40℃

Maximum operation altitude

≤1500m

Relative humidity

≤95% non-cadency

Protection degree

IP30

Cooling

Air cooling

Applicable safety standards

EN62040-1-1:2003     IEC60950-1:2001

Electromagnetic compatibility

EN62040-2:2006

Acoustic noise

≤55DB

Others

Cabinet

Standard 19 inch cabinet

Monitor management system

UPSupervisor

Interface

RS232, RS485, 2 try contact, TCP/IP adapter

Display

LCD/LED

Weight(kg)

12

16

20
