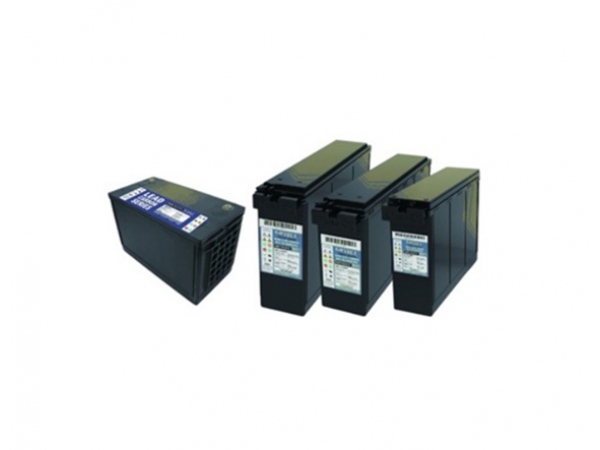

Lead Carbon Battery
Long life cycle service design: 50% DOD 2250, 80% DOD 1000, 100%DOD 650
Extreme temperature tolerance
Low cost
Inquiry now
Extreme temperature tolerance
Low cost
Overview
Lead carbon battery provides DC power supply for electric equipment, which has extreme temperature tolerance, leading charging acceptance, smallest rate of sulphate and low cost
Feature
1.Long life cycle service design:
Deep cycle technology, Excellent PSoC and cyclic performance: 50% DOD 2250, 80% DOD 1000, 100%DOD 650
2.Leading charging acceptance:
Maximum acceptable charging current 0.6C, 300% than VRLA, 0.2 to full charging lower than 7 hours.
3.Extreme temperature tolerance:
-20 degree: 16% increase capacity
+35 degree: 60% increase capacity
4.Smallest rate of sulphate:
Environmental-friendly, pollution-free
5.Compliant to major global specifications:
BS 6290: Part 4:1997, IEC 60896-21/22, Telcordia SR-4228, Bellcore GR-63-CORE & GR-1089-CORE, UL 94 V-2/V-0 Flame Retardant Polypropylene
Application
Backup power supply for energy storage systems, UPS systems,etc.
Related Products
>> Lithium Battery
>> Sealed Lead Acid Battery
>> Battery Management System
Related Solution
>> ESS & Battery Solution
Lead carbon battery provides DC power supply for electric equipment, which has extreme temperature tolerance, leading charging acceptance, smallest rate of sulphate and low cost
Feature
1.Long life cycle service design:
Deep cycle technology, Excellent PSoC and cyclic performance: 50% DOD 2250, 80% DOD 1000, 100%DOD 650
2.Leading charging acceptance:
Maximum acceptable charging current 0.6C, 300% than VRLA, 0.2 to full charging lower than 7 hours.
3.Extreme temperature tolerance:
-20 degree: 16% increase capacity
+35 degree: 60% increase capacity
4.Smallest rate of sulphate:
Environmental-friendly, pollution-free
5.Compliant to major global specifications:
BS 6290: Part 4:1997, IEC 60896-21/22, Telcordia SR-4228, Bellcore GR-63-CORE & GR-1089-CORE, UL 94 V-2/V-0 Flame Retardant Polypropylene
Application
Backup power supply for energy storage systems, UPS systems,etc.
Related Products
>> Lithium Battery
>> Sealed Lead Acid Battery
>> Battery Management System
Related Solution
>> ESS & Battery Solution
Model | V | Capacity/Ah | Capacity/Ah | Dimensions/mm | Weight/kg | Terminal Type (Bolt) | |||
(C10,1.8V@25℃) | (C20,1.75V@25℃) | (L*W*H*TH/mm) | |||||||
SHC12-40 | 12 | 36 | 43 | 229 | 139 | 200 | 205 | 16 | Inserted (#10-32 UNF) |
SHC12-65 | 12 | 59 | 67 | 273 | 174 | 201 | 204 | 24 | Inserted (1/4-20UNC) |
SHC12-100 | 12 | 91 | 100 | 341 | 173 | 213 | 216 | 34 | Inserted (1/4-20UNC) |
SHC12-110 | 12 | 103 | 114 | 345 | 173 | 275 | 278 | 43 | Inserted (1/4-20UNC) |
SHC12-100FT | 12 | 91 | 100 | 511 | 110 | 237 | 237 | 34 | Inserted (M6) |
SHC12-150FT | 12 | 150 | 154 | 559 | 126 | 285 | 285 | 50 | Inserted (M8) |
SHC12-200FT | 12 | 172 | 192 | 559 | 126 | 328 | 328 | 60 | Inserted (M8) |
SHC 2-300 | 2 | 300 | 334 | 166 | 114 | 360 | 378 | 18 | Inserted (M6) |
SHC 2-400 | 2 | 400 | 446 | 166 | 146 | 360 | 378 | 23 | Inserted (M6) |
SHC 2-600 | 2 | 600 | 668 | 166 | 210 | 360 | 378 | 33 | Inserted (M6) |
