Lithium-ion Battery Rack _ 50Ah

Battery Cell: 3.2V50Ah

Battery Pack: 48V50Ah

Battery Rack: ±240V50Ah Battery Rack, ±384V50Ah Battery Rack, etc.

Inquiry now


Overview

Lithium-ion Battery Rack is key components for ESS solution, which is made of Battery packs/modules, BMS.



Introduction of Sicon Battery Rack

Battery cells are connected in series to achieve different voltage, for example,

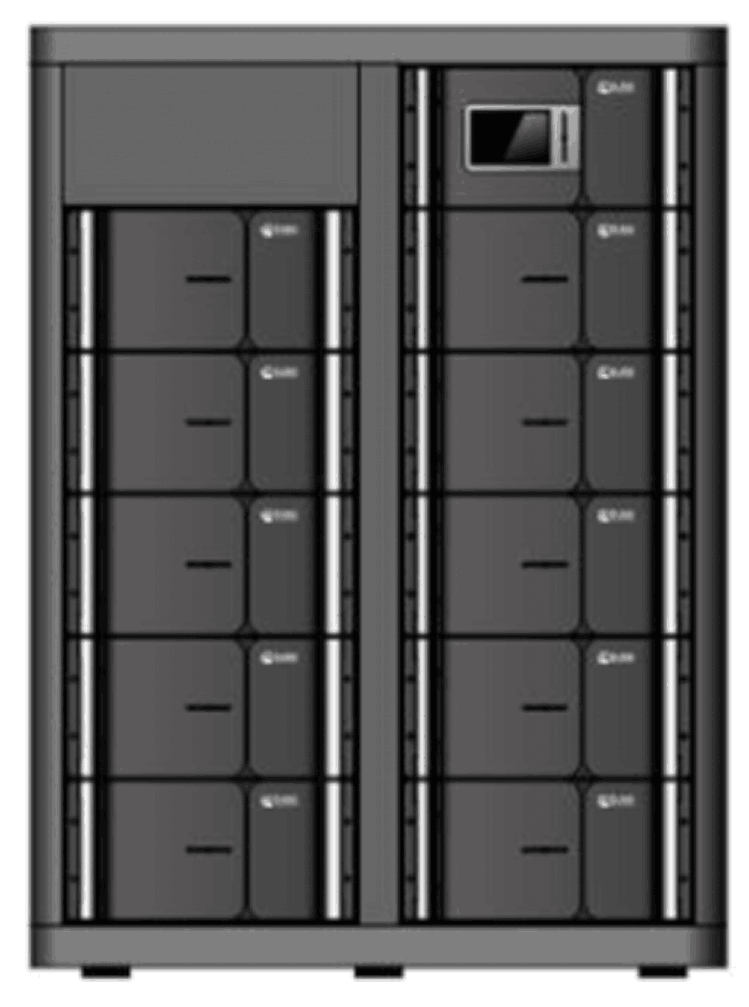

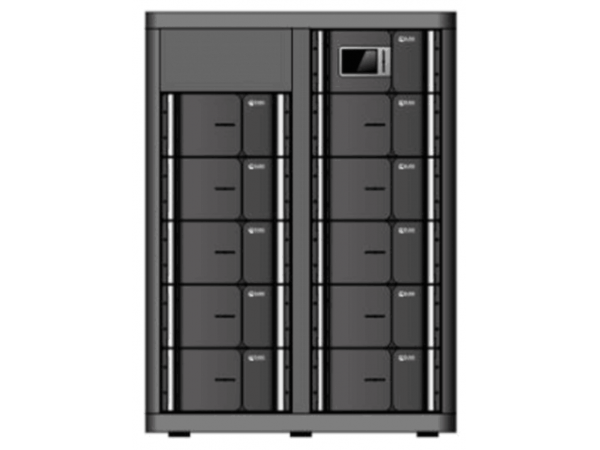

Battery Rack BC-±240/50

10 battery packs connect in parallel to form ±240V 24KWH battery cabinet. The battery rack includes 10 battery packs, 1 BCU battery cluster management unit, 1 BMU battery pack management unit etc.

Each battery pack includes 15pcs 50Ah battery cell which connected in series.

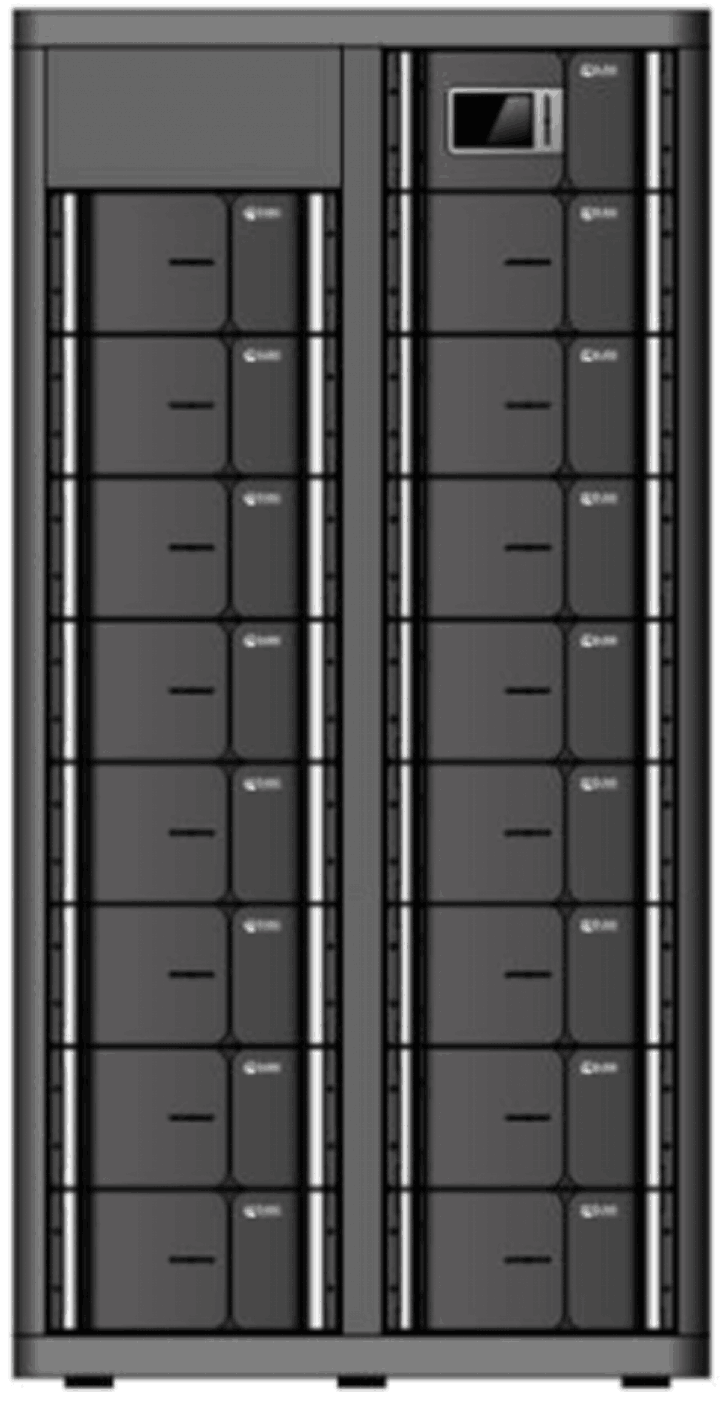

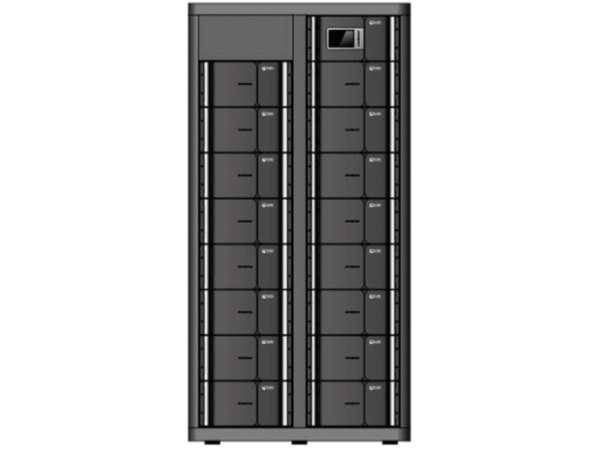

Battery Rack BC-±384/92

16 battery packs connect in parallel to form ±384V 38.4KWH battery cabinet. The battery rack includes 16 battery packs, 1 BCU battery cluster management unit, 1 BMU battery pack management unit etc.

Each battery pack includes 15pcs 50Ah battery cell which connected in series.


Application

High-value, innovative energy storage protection solution for data centers, industrial processes and critical infrastructure.


Related Solution
    >> ESS & Battery Solution




Module/Pack

Items

Specs



Total capacity

24kWH

Nominal voltage

±240V

Rated charge rate

4C@25

Max discharge rate

4C@25

Communication

CAN,RS485

Equalizing charge

Active

Cell

3.2V/50Ah LFP

Battery module

48V/50Ah(1P*15S)

Battery cabinet

±240V/50Ah(1P*150S)

Battery cabinet dimension (W*D*H)

1050mm*550mm*1400mm




Module/Pack

Items

Specs



Total capacity

38.4kWH

Nominal voltage

±384V

Rated charge rate

4C@25

Max discharge rate

4C@25

Communication

CAN,RS485

Equalizing charge

Active

Cell

3.2V/50Ah LFP

Battery module

48V/50Ah(1P*15S)

Battery cabinet

±384V/50Ah(1P*240S)

Battery cabinet dimension (W*D*H)

1050mm*550mm*2000mm
