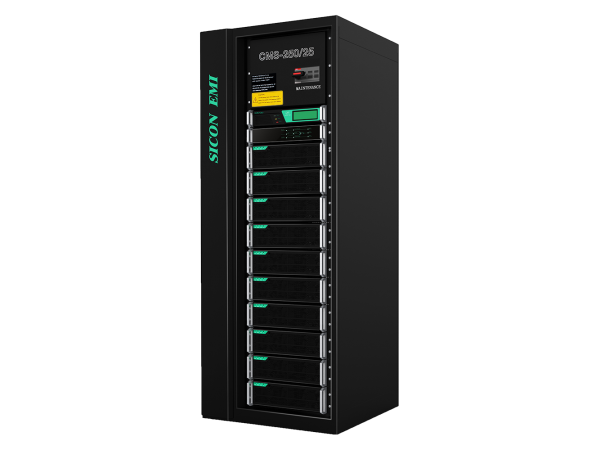

Modular Online UPS CMS-150/15UH5
Power range: 15 to 150 kVA
Spec: 120/208VAC, 127/220VAC, 50/60Hz, 3-phase
Tech: high frequency modular UPS, rational redundancy.
Modular, hot-swappable, field-replaceable STS, monitor, UPS module.
Scalable from 15KVA to 150KVA. Parallel-capable up to 600KVA.
Inquiry now
Spec: 120/208VAC, 127/220VAC, 50/60Hz, 3-phase
Tech: high frequency modular UPS, rational redundancy.
Modular, hot-swappable, field-replaceable STS, monitor, UPS module.
Scalable from 15KVA to 150KVA. Parallel-capable up to 600KVA.
Overview
CMS UPS units are non-isolated, industrial level, green UPS, adopting advanced modular power protection concept. It delivers the best combination of rectifier, filter, charger, inverter and intelligent power protection. Applying innovated current sharing rectifier control, master-slave synchronization in sequence control, multi-level decentralized control and 3-level sine wave modulation technology, it features great efficiency, flexibility and reliability.
Feature
1.Rational redundant structure
UPS module: 15 kVA; UPS System: 150 kVA
2.Great performance index: input PF ≥ 0.99, output PF:0.9: overall efficiency ≥ 93%
3.N+X module-level redundancy UPS System
4.Multi-level decentralized control technology and Master-slave synchronization in sequence control which result in eliminate system failure bottleneck
5.Each module automatically even shares the input and output current, all UPS modules share batteries
6.Battery management:
Battery discharge management, auto-transfer between floating and even charging, temperature compensation
7.Space-saving high density design, Rack-based for agility and aesthetics
8.Monitor Function
C/S-Oriented Architecture SICON Software which is available to monitor multiple UPS up to 600 sets;
B/S-Oriented Architecture which is available to check via IE
9.Standard configuration Manual maintenance bypass, SPD (Class C), RS232, RS485/RS422 Communication ports, Remote monitor software, day contacts
10.Optional configuration
Input/output Transformer, Battery Bank, IPDS (Intelligent Power Distribution System)
Application
IDC date center, government, telecom, bank, security, transportation, broadcast&TV network, HealthCare, Communication, E-business, Finance, etc.
CMS UPS units are non-isolated, industrial level, green UPS, adopting advanced modular power protection concept. It delivers the best combination of rectifier, filter, charger, inverter and intelligent power protection. Applying innovated current sharing rectifier control, master-slave synchronization in sequence control, multi-level decentralized control and 3-level sine wave modulation technology, it features great efficiency, flexibility and reliability.
Feature
1.Rational redundant structure
UPS module: 15 kVA; UPS System: 150 kVA
2.Great performance index: input PF ≥ 0.99, output PF:0.9: overall efficiency ≥ 93%
3.N+X module-level redundancy UPS System
4.Multi-level decentralized control technology and Master-slave synchronization in sequence control which result in eliminate system failure bottleneck
5.Each module automatically even shares the input and output current, all UPS modules share batteries
6.Battery management:
Battery discharge management, auto-transfer between floating and even charging, temperature compensation
7.Space-saving high density design, Rack-based for agility and aesthetics
8.Monitor Function
C/S-Oriented Architecture SICON Software which is available to monitor multiple UPS up to 600 sets;
B/S-Oriented Architecture which is available to check via IE
9.Standard configuration Manual maintenance bypass, SPD (Class C), RS232, RS485/RS422 Communication ports, Remote monitor software, day contacts
10.Optional configuration
Input/output Transformer, Battery Bank, IPDS (Intelligent Power Distribution System)
Application
IDC date center, government, telecom, bank, security, transportation, broadcast&TV network, HealthCare, Communication, E-business, Finance, etc.
| System model | CMS-150/15UH5 | ||
| Maximum power | 150KVA | ||
| Power module model | CM15-UH5 | ||
| Mains Input | Input mode | 3-phase+N+E | |
| Input voltage | 208VAC ±20% (Line to line); 120VAC±20% (Line to Neutral) | ||
| 220VAC ±20% (Line to line); 127VAC±20% (Line to Neutral) | |||
| Input frequency | 50Hz±10%, 60Hz±10% | ||
| Power woke-in (Sec.) | 60sec | ||
| THDI (%) | ≤4.5% | ||
| Input PF | ≥0.99 | ||
| Bypass Input | Input voltage | 208VAC ±20% (Line to line); 120VAC±20% (Line to Neutral) | |
| 220VAC ±20% (Line to line); 127VAC±20% (Line to Neutral) | |||
| Input frequency | 50 Hz, 60 Hz | ||
| Battery Input | Rated Input voltage | ±216VDC | |
| Battery charging | Charging current limited | yes | |
| Charging ability | 10 hours (2 hours back up) | ||
| Stability of charging voltage | ±1% | ||
| AC output | UPS power factor | 1 | |
| Output voltage | 208VAC ±20% (Line to line); 120VAC±20% (Line to Neutral) | ||
| 220VAC ±20% (Line to line); 127VAC±20% (Line to Neutral) | |||
| Output frequency | 50Hz±0.2% (battery supply), 60Hz±0.2% (battery supply) | ||
| Output voltage stability | ±1% | ||
| Output voltage recovering time | ＜20ms (load 0~100% change) | ||
| Overload ability | 105%-125%, 90s; 125-135%,10s; ＞135%, 1s | ||
| Transfer from mains to battery supply | 0ms | ||
| Transfer from bypass to inverter supply | <1ms | ||
| Peak factor | 3:01 | ||
| Waveform distortion | ≤2% ( linear load ), ≤6%( non-linear load ) | ||
| Overall efficiency | ≥93% | ||
| Load share precision | ≤5% | ||
| Operation environment | Ambient temperature | -25℃～60℃ | |
| Operating temperature | -5℃～40℃ | ||
| Maximum operation altitude | ≤1500m | ||
| Relative humidity | ≤95% non-cadency | ||
| Protection degree | IP30 | ||
| Cooling | Air cooling | ||
| Applicable safety standards | EN62040-1-1:2003 IEC60950-1:2001 | ||
| Electromagnetic compatibility | EN62040-2:2006 | ||
| Acoustic noise | ≤55DB | ||
| Others | Dimension(W*D*H)mm | 600*800*2000 (W*D*H)mm | |
| Monitor management system | UPSupervisor (optional) | ||
| Interface | RS232, RS485/422 and 8 try contact, TCP/IP, SNMP | ||
| Display | Touch LCD/LED Screen | ||
| Weight(kg) | 240kg | ||
