Single or three phase Online UPS for network,Rack Mount UPS, DSP-10KVA/15KVA/20KVA

Rated power: 10kVA/15kVA/20kVA
Wire in/out mode: 1/1, 1/3, 3/1, 3/3

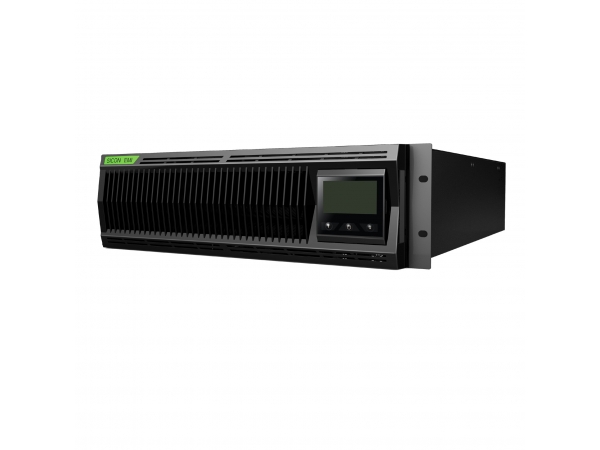

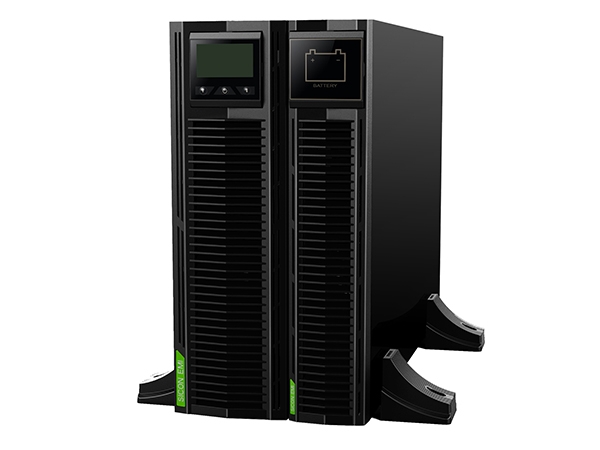

Rack mount and Tower
Optional battery pack:
Lead acid battery or Lithium battery
Inquiry now
Overview
DSP Series Rackmount UPS: High frequency On-line double conversion technology; Universal Rackmount and Tower model. Parallel function: AC output can be connected in parallel. 1+1 redundancy in power module protects the users’ data center. Application field: High power density data center, bank, security, vending machines system, Telecom/VoIP, etc.. Function: clean and persistent power supply, safeguards key equipment and Apps against shutdown, data loss and process interruption caused by power failure.

Some of these Rack Mount UPS systems have internal battery runtimes that can be extended with additional battery extension packs.


Feature
    1.Universal Rackmount and Tower model; Rackmount DSP could be embedded in 19inch standard cabinet.
    2.N+1 parallel connection is possible, redundant system ensures a more reliable power supply to the users’ load.
    3.Intelligent fan speed regulation. System adjusts cooling and sends out alarm according to the temperature in the cabinet.
    4.Intelligent battery management. System controls equalization and float charging, temperature compensation, discharge timing.
    5.Variety of intelligent communication. Remote monitoring and control, easy management, suitable for unattended operation.
    6.Variety of alarms. Real time visual alarm status available.
    7.Accurate performance via DSP control technology. Variety of protection functions. For example, AC over/under voltage, battery input over/under voltage, inrush current, over temperature, output overcurrent, short circuit protection, output over/under voltage, monitor alarm, audible and visual indication, remote notification, etc.
Application
    High power density data center, bank, security, vending machines system, Telecom/VoIP, etc.. Function: clean and persistent power supply, safeguards key equipment and Apps against shutdown, data loss and process interruption caused by power failure.
Model DSP-10KVA DSP-15KVA DSP-20KVA
Power 10KVA 15KVA 20KVA
DC input
Voltage ±240VDC
Max charging current 2A 3A 4A
Battery External battery
AC input
Input rated voltage 3 phases, 4 Wire, 380V/400V/415V
Input voltage range 304Vac~456Vac
Input current harmonic ≤3% Rated input and linear load
Input power factor 0.99(100% linear load)
Input frequency 40~70Hz
Frequency Synchro range ±10%
Frequency Synchro rated 0.5~2Hz/s
AC output
AC output voltage 220Vac/230Vac/240Vac
Output power factor 0.8
Output active power 8KW 12KW 16KW
Output frequency 50/60Hz
Output frequency stability ±0.1(battery power)
Output THDU 3%(liner load)
Output voltage accuracy ±2%
Transient range ±5%(load changing 0%~100%~0%)
Transient duration 20ms
Peak factor 3:1(rated input)
Output delay at power-on 5~60s
overload 10min 125% rated load
Overall efficiency ≥93%
Transfer time Bypass-Inverter ≤ 2ms
Parallel current unbalancedness 5%( >50% load )
Communication RS232/RS485 / SNMP (optional)
Others
Mounting Rackmount / tower
Acoustic noise ≤58dB ≤58dB ≤58dB
MTBF 100000h
Heat-dissipating method Force air cooling
Protection level IP20
Enclosure material Cladding aluminum galvanized,cold-rolled steel sheet,panel:plastic spraying processing
Mounting Rackmount
Dimension (W*D*H)mm 430*622*132 430*622*132 430*622*132
Weight (kg) 25 25 25
Mounting  tower
Dimension (W*D*H)mm 132*622*430 132*622*430 132*622*430
Weight (kg) 25 25 25
