208VAC Three Phase UPS

Power range: 15 to 90 kVA, 150k VA
Spec: 120/208VAC, 127/220VAC, 50/60Hz, 3-phase
Tech: high frequency modular UPS, rational redundancy.
Modular, hot-swappable, field-replaceable STS, monitor, UPS module.
Scalable from 15KVA to 150KVA. Parallel-capable up to 600KVA.

Inquiry now
Overview
CMS UPS units are non-isolated, industrial level, green UPS, adopting advanced modular power protection concept. It delivers the best combination of rectifier, filter, charger, inverter and intelligent power protection. Applying innovated current sharing rectifier control, master-slave synchronization in sequence control, multi-level decentralized control and 3-level sine wave modulation technology, it features great efficiency, flexibility and reliability.
Feature
    1.Rational redundant structure
    UPS module: 15 kVA; UPS System: 90 kVA, 150k VA
    2.Great performance index: input PF ≥ 0.99, output PF:0.9: overall efficiency ≥ 93%
    3.N+X module-level redundancy UPS System
    4.Multi-level decentralized control technology and Master-slave synchronization in sequence control which result in eliminate system failure bottleneck
    5.Each module automatically even shares the input and output current, all UPS modules share batteries
    6.Battery management:
    Battery discharge management, auto-transfer between floating and even charging, temperature compensation
    7.Space-saving high density design, Rack-based for agility and aesthetics
    8.Monitor Function
    C/S-Oriented Architecture SICON Software which is available to monitor multiple UPS up to 600 sets;
    B/S-Oriented Architecture which is available to check via IE
    9.Standard configuration Manual maintenance bypass, SPD (Class C), RS232, RS485/RS422 Communication ports, Remote  monitor software, day contacts
   10.Optional configuration
    Input/output Transformer, Battery Bank, IPDS (Intelligent Power Distribution System)
Application
IDC date center, government, telecom, bank, security, transportation, broadcast&TV network, HealthCare, Communication, E-business, Finance, etc.
Related Products
    >> CMS Modular UPS 10-100KVA (Hot-swappable, 10KVA UPS module)
    >> CMS Modular UPS 150-250KVA (Hot-swappable, Field-replaceable STS, N+X redundancy)
    >> Data Center And Facility UPS 350-800KVA (N+X redundancy, 50KVA UPS module)
    >> Rack Independent UPS Modular 25-200kVA (Rack independent, Full UPS functioned UPS Module)

Related Solution
    >> 2N Power Solution
    >> Industrial Modular UPS N+X Solution

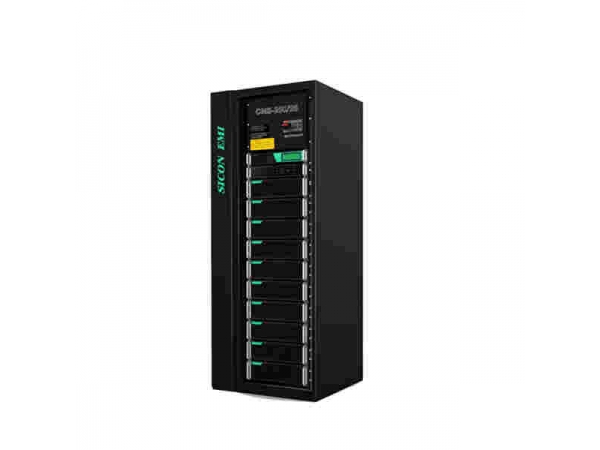

Product :  CMS-150/15UH5 Modular UPS
Adaptable 15 to 150 kVA power capacity
15 kVA UPS module
Configuration: 10 slots
Components: STS module, Monitor module, UPS module, Power distribution
Top or bottom feed
System Dimension: 600*800*2000 (W*D*H)mm
Sicon 15 to 150 kVA UPS power

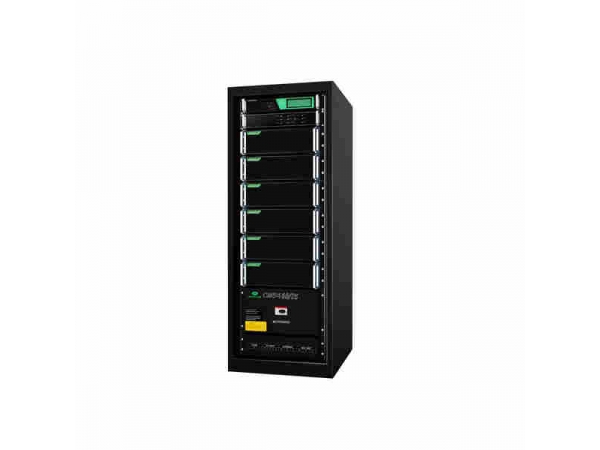

Product :  CMS-90/15UH5 Modular UPS
Adaptable 15 to 90 kVA power capacity
15 kVA UPS module
Configuration: 6 slots
Components: STS module, Monitor module, UPS module, Power distribution
Top or bottom feed
System Dimension: 600*800*1600 (W*D*H)mm
Sicon 15 to 90 kVA UPS power

System model CMS-90/15UH5 CMS-150/15UH5
Maximum power 90KVA 150KVA
Power module model CM15-UH5
Mains Input Input mode 3-phase+N+E
Input voltage 208VAC ±20% (Line to line); 120VAC±20% (Line to Neutral)
220VAC ±20% (Line to line); 127VAC±20% (Line to Neutral)
Input frequency 50Hz±10%, 60Hz±10%
Power woke-in (Sec.) 60sec
THDI (%) ≤4.5%
Input PF ≥0.99
Bypass Input Input voltage 208VAC ±20% (Line to line); 120VAC±20% (Line to Neutral)
220VAC ±20% (Line to line); 127VAC±20% (Line to Neutral)
Input frequency 50 Hz, 60 Hz
Battery Input Rated Input voltage ±216VDC
Battery charging Charging current limited yes
Charging ability 10 hours (2 hours back up)
Stability of charging voltage ±1%
AC output UPS power factor 0.9
Output voltage 208VAC ±20% (Line to line); 120VAC±20% (Line to Neutral)
220VAC ±20% (Line to line); 127VAC±20% (Line to Neutral)
Output frequency 50Hz±0.2% (battery supply), 60Hz±0.2% (battery supply)
Output voltage stability ±1%
Output voltage recovering time 20ms (load 0~100% change)
Overload ability 105%-125%, 90s; 125-135%,10s; 135%, 1s
Transfer from mains to battery supply 0ms
Transfer from bypass to inverter supply <1ms
Peak factor 3:01
Waveform distortion ≤2% ( linear load ), ≤6%( non-linear load )
Overall efficiency ≥93%
Load share precision ≤5%
Operation environment Ambient temperature -25℃~60
Operating temperature -5℃~40
Maximum operation altitude ≤1500m
Relative humidity ≤95% non-cadency
Protection degree IP30
Cooling Air cooling
Applicable safety standards EN62040-1-1:2003 IEC60950-1:2001
Electromagnetic compatibility EN62040-2:2006
Acoustic noise ≤55DB
Others Dimension(W*D*H)mm 600*800*1600 (W*D*H)mm 600*800*2000 (W*D*H)mm
Monitor management system UPSupervisor (optional)
Interface RS232, RS485/422 and 8 try contact, TCP/IP, SNMP
Display Touch LCD/LED Screen
Weight(kg) 200kg 240kg
