High Frequency MODULAR UPS
Modular,hot-swappable, field-replaceable STS, monitor, UPS module
Scalable from 50KVA to 800KVA. Parallel-capable up to 3200KVA
Inquiry now Download

Overview
Reduandant, scalable arichitecture, 96% efficency, highest reliability, data center and facility UPS protects the critical applications.

non-isolated, industrial level, green Uninterruptible Power Supplies (UPS) - Three Phase, adopting advanced modular power protection concept. Modular architecture can scale power as demand grows or as higher levels of availability are required.

RELIABILITY AND AVAILABILITY FLEXIBILITY for critical loads · According to IEC EN 62040-1 62040-2 62040-3

Available with battery of Lithium, lead acid, VRLA AGM and NiCd· original sicon cms mr rm ea modular ups supplier manufacturer

350/500/800kVA Sicon Modular UPS Features
UPS module: 50 kVA; System: 350 kVA, 500 kVA, 800 kVA.

Rational redundant structure · N+X redundancy · Double Conversion (VFI-SS-111) · Transformer-less architecture: lower space and weight

50kVA hot-swappable power modules for predictive power management and lowest MTTR

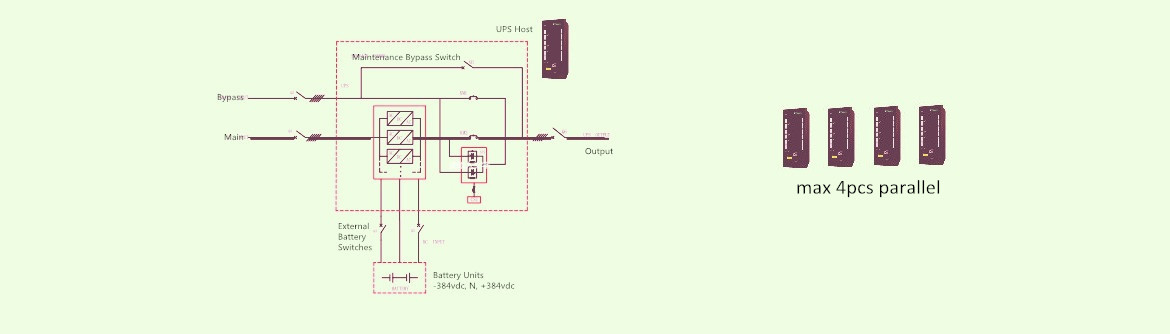

Excellent power capability, 800kVA single chassis. Parallelable up to 3.2MVA

AC/DC, DC/AC 95% · DC/AC 98% efficiency · THDI ≤ 3% · input PF ≥ 0.99 · Output PF = 0.9

Multi-level decentralized control technology and Master-slave synchronization in sequency control

Each module automatically even shares the input and output current, all UPS modules share batteries

Battery management: Battery discharge management, auto-transfer between floating and even charging, temperature compensation

Standard configuration: Manual maintenance bypass, RS232/RS485, dry contacts

Optional configuration: SNMP, GENSET, EPO, Transformer, Battery Bank, IPDS


50kVA UPS module

4U with readable LCD screen · Isolated airflow with redundant fans · High power density · High efficiency · Autonomous Start-up · Cold start

Full functioned UPS, delivering a combination of converter, inverter, charger and controller


STS Module

Parallel of SCR and AC Contactor

Online replace without shutdown system · High reliablity and overload ability · Transfer time within 1ms · Self-diagnose, interlock




Application

Date Center


Sicon Products

50-100KVA Modular UPS

25-250kVA Modular UPS

25-200kVA (Rack independent, Modular UPS)

20-400KVA Modular UPS


Sicon Solutions
Industrial Modular UPS N+X Solution

2N Power Solution


Sicon References

Sicon UPS at International Fair

Astronomy Case-Sicon Modular UPS Applied to the World’s Largest Single-aperture Telescope Base


Sicon Online Show Room



Product :  CMS-350/50
Adaptable 50 to 350 kVA power capacity
50 kVA UPS module (CM50)
Configuration: 7 slots
Components: STS module, Monitor module, UPS module, Power distribution
Top or bottom feed
System Dimensions:800*1000*2000(W*D*H)mm
Module Dimensions:482*700*176(W*D*H)mm


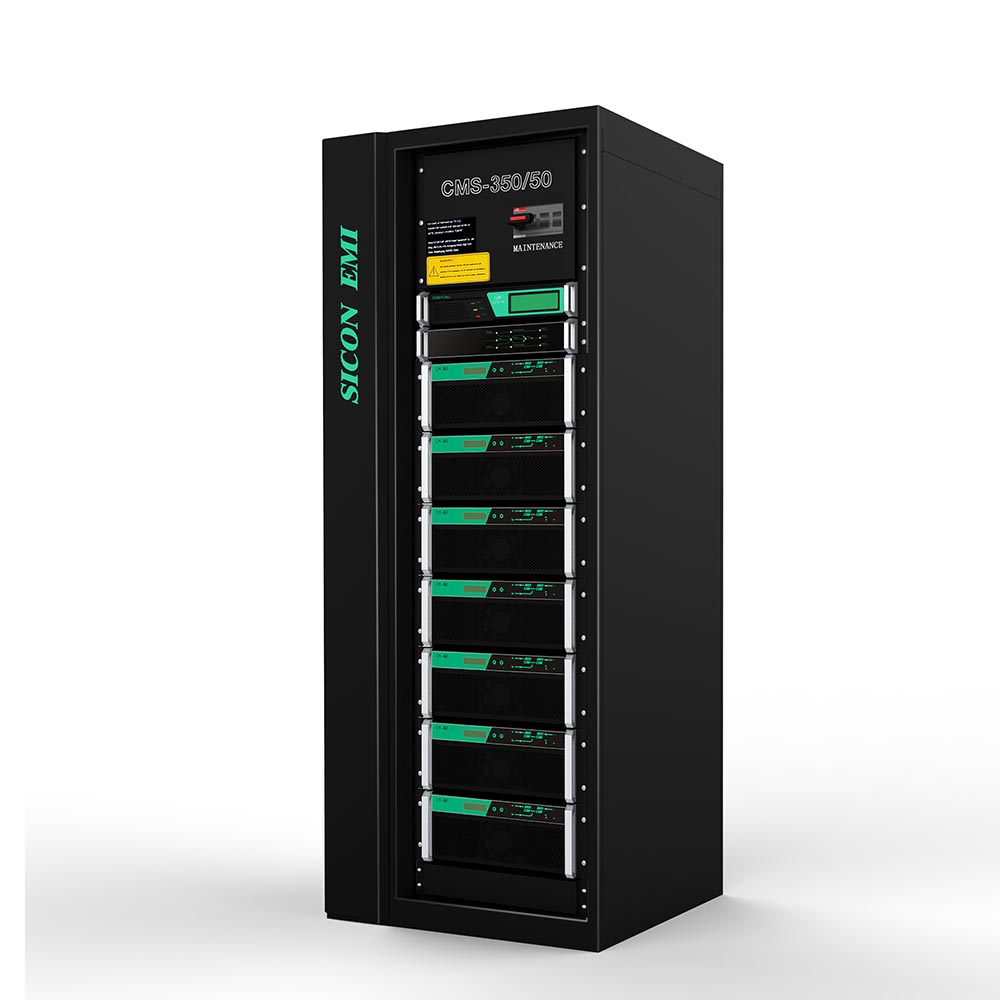

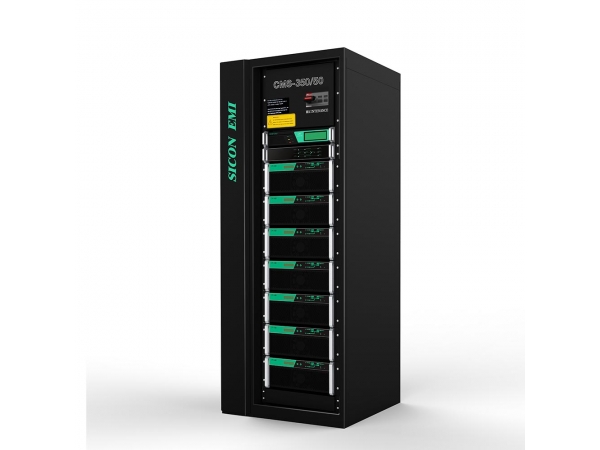

Sicon 350KVA Modular UPS

Product :  CMS-500/50
Adaptable 50 to 500 kVA power capacity
50 kVA UPS module (CM50)
Configuration: 10 slots
Components: STS module, Monitor module, UPS module, Power distribution
Top or bottom feed
System Dimensions:1400*1000*2000(W*D*H)mm
Module Dimensions:482*700*176(W*D*H)mm

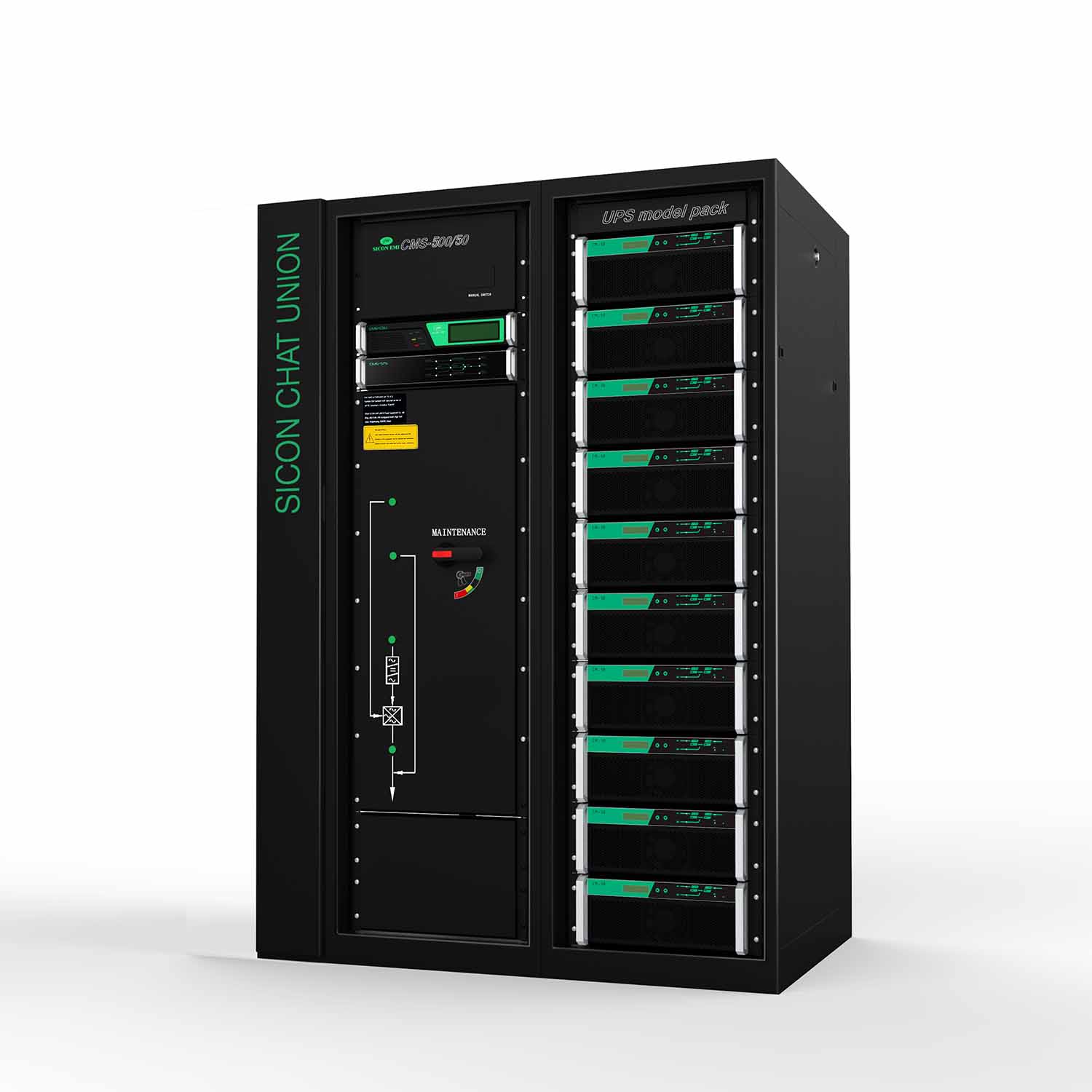

Sicon 500KVA Modular UPS

Product :  CMS-800/50
Adaptable 50 to 800 kVA power capacity
50 kVA UPS module (CM50)
Configuration: 16 slots
Components: STS module, Monitor module, UPS module, Power distribution
Top or bottom feed
System Dimensions:2000*1000*2000(W*D*H)mm
Module Dimensions:482*700*176(W*D*H)mm

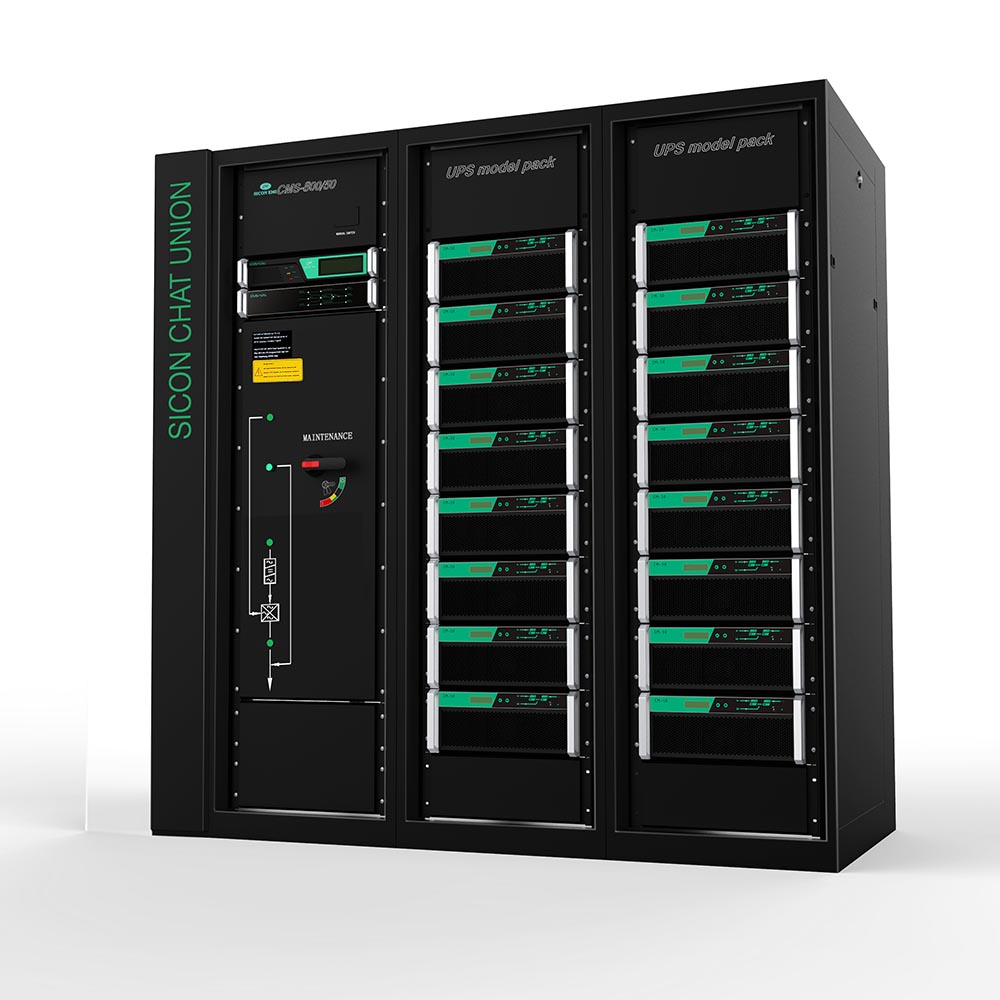

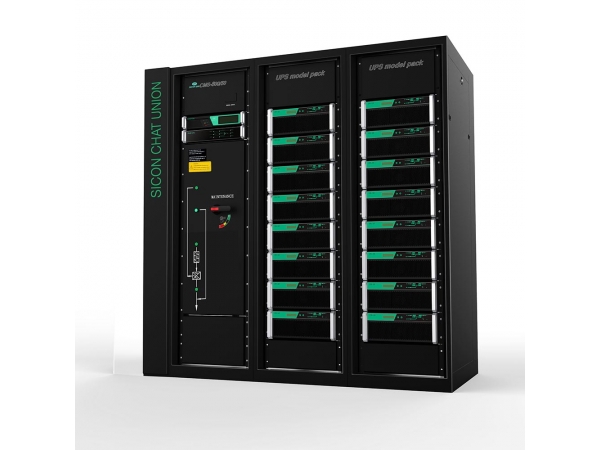

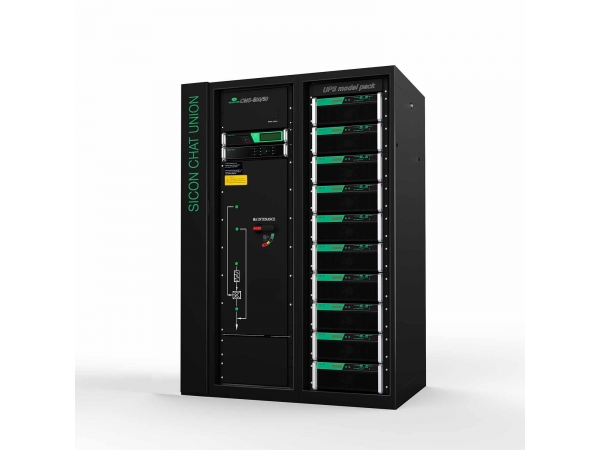

Sicon800KVA Modular UPS



   50kva 100kva    150kva 250kva



System model

CMS-350/50

CMS-500/50

CMS-800/50

Maximum power

350 kVA

500KVA

800KVA

Power module model

50KVA

Mains Input

Input mode

3-phase +N +E, 1-phase +N +E

Input voltage

380V/220V±20%, 400V/230V±20%, 415V/240V±20%

Input frequency

50Hz±10%, 60Hz±10%

Power woke-in (Sec.)

60sec

THDI (%)

<3%

Input PF

≥0.99

Bypass Input

Input voltage

380V/220V±20%, 400V/230V±20%, 415V/240V±20%

Input frequency

50 Hz, 60 Hz

Range of Frequency Synchro

50 Hz±4%, 60 Hz±4%

DC Input

Rated Input voltage

±384VDC

Input voltage tolerance

±345V~±440V DC

Battery charging

Charging current limited

yes

Charging ability

10 hours (2 hours back up)

Stability of charging voltage

±1%

AC output

UPS power factor

1

Output voltage

380V/220V AC, 400V/230V AC, 415V/240V AC

Output frequency

±4%;±0.2% (battery supply)

Output voltage stability

±1%

Output voltage recovering time

<20ms (load 0~100% change)

Overload ability

Operate 10mins with 125% load

Transfer from mains to battery supply

0ms

Transfer from bypass to inverter supply

<1ms

Peak factor

0.125694444

Waveform distortion

≤1% ( linear load ), ≤3%( non-linear load )

Overall efficiency

≥95% (AC~AC), ≥98% (DC~AC)

Load share precision

≤5%

Operation environment

Ambient temperature

-25℃~60℃

Operating temperature

-5℃~40℃

Maximum operation altitude

≤1500m

Relative humidity

≤95% non-cadency

Protection degree

IP30

Cooling

Air cooling

Applicable safety standards

EN62040-1-1:2003 IEC60950-1:2001

Electromagnetic compatibility

EN62040-2:2006

Acoustic noise

≤55DB

Others

Cabinet

Standard 19 inch cabinet

Monitor management system

UPSupervisor

Interface

RS232, RS485 and 8 try contact, TCP/IP adapter, SNMP(optional)

Display

Touch LCD/LED Screen

Weight(kg)

400

500

700
