CMS Modular UPS 120-640KVA

System Capacity: 120-640 KVA
Module Capacity: 40KVA
3/3, 3/1, 1/3, 1/1; 50/60Hz; BOTTOM/TOP feed
High Frequency MODULAR UPS
Choice of UPS module result in rational redundancy
Modular, hot-swappable, field-replaceable STS, monitor, UPS module.
Scalable from 120 KVA to 640 KVA.
Inquiry now

Overview

Sicon CMS is non-isolated, world class, redundant, scalable, 3 Phase Online UPS power protection system designed to cost effctively provide high levels of availability. Sicon CMS is a true modular uninterruptible power supply, its architecture can scale power as demand grows or as higher levels of availability are required, perfect integrating into today's data center designs. Sicon CMS online double conversion ups is industry-leading efficiency, availability, and performance for small, medium, large data centers and mission critical environments.

ups install reference | more about sicon plant | sicon support



Feature


3/3// Uninterruptible Power Supplies 40kVA- 80kVA -120kVA to -to 640kVA


UPS module: 40 kVA

System frame/chassis: 120kVA, 240kVA, 640kVA

Transformer Free UPS technology,  lower space and weight



Online double Conversion (VFI-SS-111) · Rational redundant structure · N+X redundancy

High efficiency · AC/DC, DC/AC 95%, DC/AC 98% efficiency

Input low current harmonic distortion · THDI ≤ 3%

High input power factor · input PF ≥ 0.99

High output power factor · Output PF = 0.9

Static and Maintenance bypass switch

Short circuit and overload protection

RS232 serial ports and dry contacts

Multi-level decentralized control technology and Master-slave synchronization in sequency control

Each module automatically even shares the input and output current, all UPS modules share batteries

Selectable input/ output voltage/ frequency range

Split by-pass

Battery management:

Battery discharge management

Auto-transfer between floating and even charging

Temperature compensation

Optional SNMP, Modbus adapters

Optional configuration: GENSET, EPO, Transformer, Battery Bank, IPDS

2 year warranty

10 years spare parts support

high frequency ups


Application

Date Center ups solution



Products

Model

Contact Sicon

Sicon CMS 10kVA, Scalable to 50kVA, 380V 400V 415V

CMS-50/10

enquiry@scupower.com

Sicon CMS 10kVA, Scalable to 100kVA, 380V 400V 415V

CMS-100/10

enquiry@scupower.com

Sicon CMS 25kVA, Scalable to 150kVA, 380V 400V 415V

CMS-150/25

enquiry@scupower.com

Sicon CMS 25kVA, Scalable to 200kVA, 380V 400V 415V

CMS/A-100, CMS/A-200

enquiry@scupower.com

Sicon CMS 25kVA, Scalable to 250kVA, 380V 400V 415V

CMS-250/25

enquiry@scupower.com

Sicon CMS 50kVA, Scalable to 350kVA, 380V 400V 415V

CMS-350/50

enquiry@scupower.com

Sicon CMS 50kVA, Scalable to 500kVA, 380V 400V 415V

CMS-500/50

enquiry@scupower.com

Sicon CMS 50kVA, Scalable to 800kVA, 380V 400V 415V

CMS-800/50

enquiry@scupower.com

Sicon CMS 15kVA, Scalable to 90kVA, 208V 220V 3P5W

CMS-90/15UH5

enquiry@scupower.com

Sicon CMS 15kVA, Scalable to 120kVA, 208V 220V 3P5W

CMS-120/15UH5

enquiry@scupower.com

Sicon CMS 15kVA, Scalable to 150kVA, 208V 220V 3P5W

CMS-150/15UH5

enquiry@scupower.com

Sicon CMS 15kVA, Scalable to 90kVA, 208V 220V 3P3W+PE

CMS-90/15

enquiry@scupower.com

Sicon CMS 15kVA, Scalable to 120kVA, 208V 220V 3P3W+PE

CMS-120/15

enquiry@scupower.com

Sicon CMS 15kVA, Scalable to 150kVA, 208V 220V 3P3W+PE

CMS-150/15

enquiry@scupower.com

Sicon ERMS 6kVA, Scalable to 12kVA, 220V 230V 240V 1P3W

ERMS-12/6

enquiry@scupower.com

Sicon ERMS 6kVA, Scalable to 24kVA, 220V 230V 240V 1P3W

ERMS-24/6

enquiry@scupower.com

Sicon ERMS 6kVA, Scalable to 36kVA, 380V 400V 415V

ERMS-36/6

enquiry@scupower.com


Sicon Solutions

Industrial Modular UPS N+X Solution

2N Power Solution


Sicon References

Sicon UPS at International Fair

Astronomy Case-Sicon Modular UPS Applied to the World’s Largest Single-aperture Telescope Base


Sicon Online Show Room

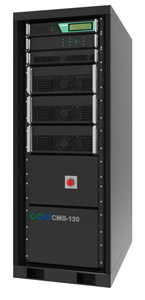

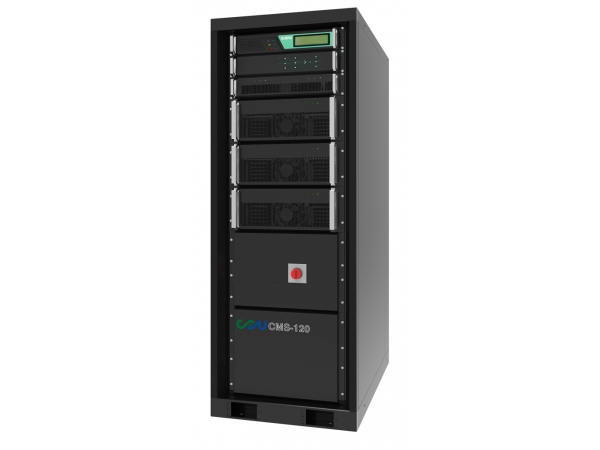

Product: CMS-120

• Adaptable 40 to 120 kVA power capacity
• 40 kVA UPS module (CM40)
• Configuration: 3 slots
• Components: STS module, Monitor module, UPS module, Power distribution
• Top or bottom feed
• System Dimension: 600*1000*1600 (W*D*H) mm
• Module Dimension: 482*700*176 (W*D*H) mm

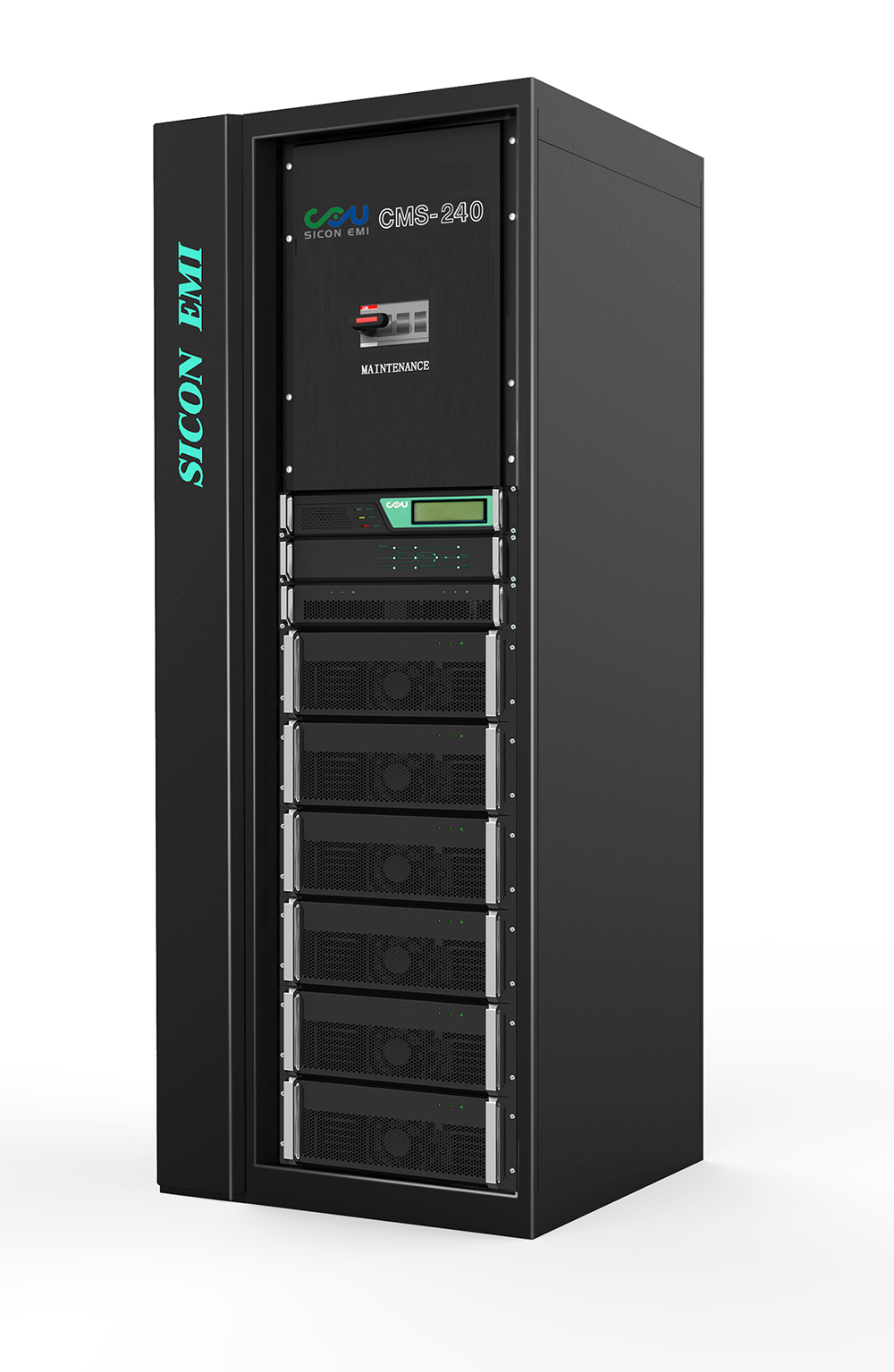

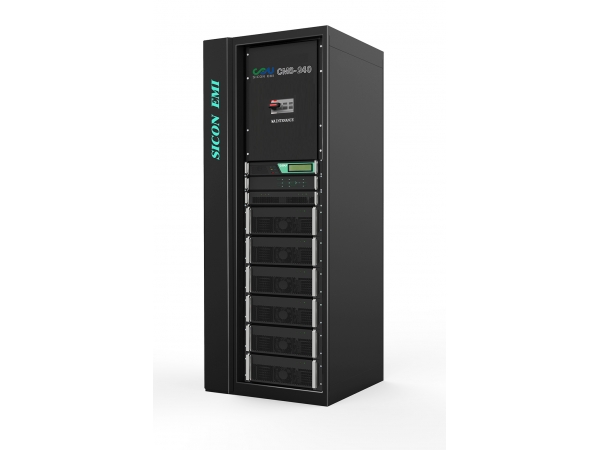

Product: CMS-240

• Adaptable 40 to 240 kVA power capacity
• 40 kVA UPS module (CM40)
• Configuration: 6 slots
• Components: STS module, Monitor module, UPS module, Power distribution
• Top or bottom feed
• System Dimensions: 800*1000*2000(W*D*H) mm
• Module Dimensions: 482*700*176 (W*D*H) mm

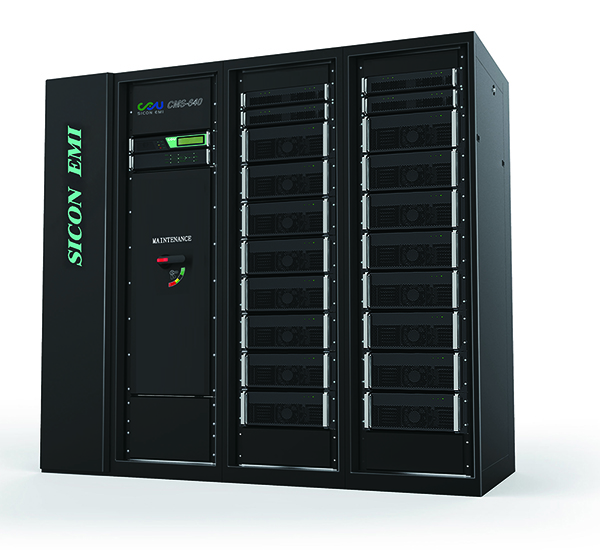

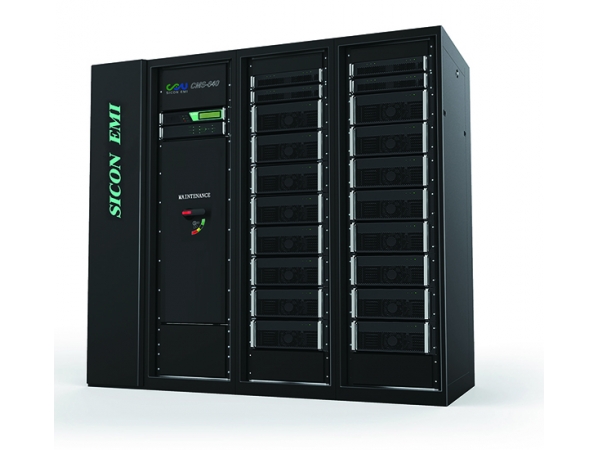

Product: CMS-640

Adaptable 40 to 640 kVA power capacity
• 40 kVA UPS module (CM40)
• Configuration: 16 slots
• Components: STS module, Monitor module, UPS module, Power distribution
• Top or bottom feed
• System Dimensions: 2200*1000*2000(W*D*H) mm
• Module Dimensions: 482*700*176(W*D*H) mm




Maximum power 120 kVA 240 kVA 640 kVA
Power module model 40 kVA
Mains Input Input mode 3-phase +N  +G
Input voltage 380Vac
Voltage tolerance -20%~+20%
Input frequency 45~65HZ
Power woke-in (Sec.) 60sec
THDI (%) ≤5%
Input PF 0.99
Bypass Input Input voltage ±20%
Input frequency 50 Hz, 60 Hz
Range of Frequency Synchro 50 Hz±4%, 60 Hz±4%
DC Input Rated Input voltage ±240VDC
Input voltage tolerance ±210V ~ ±278V DC
Battery charging Charging current limited yes
Charging ability 10 hours (2 hours back up)
Stability of charging voltage ±1%
AC output power factor 1
Output voltage 380Vac
Output frequency ±2Hz; ±0.1(battery supply)
Output voltage stability ±1%
Output voltage recovering time 20ms (load 0~100% change)
Overload ability 125%,10min
Transfer from mains to battery supply 0ms
Transfer from bypass to inverter supply <4ms
Peak factor 2.5:1
THDI  3% with linear load /  6% with non-linear load
Overall efficiency ≥95%
Load share precision ≤5%
Operation environment Ambient temperature -25 - 60
Operating temperature -5℃~40
Max operation altitude 1500m
Relative humidity 0- 95%, non-cadency
Protection degree IP21(IP31 Option)
Cooling Air cooling
Acoustic noise(1 m distance) ≤55dB
Others Dimension(W×D×H)mm 600×1000×1600 800×1000×2000 2200×1000×2000
Interface Standard: RS232, RS485 and 6 dry contact. Optional: SNMP
Display Touch LCD/LED Screen
Weight(kg) 125 400 700
