AC Charge Station
Input voltage: 220±15% / 380±15%
Output current: 16A/32A
Communication interface: CAN-BUS、RS-485、Ethernet
Dimension: 350*150*180(wall)/350*150*1500(pedestal)
Overview
EVAS series charging pile is an intelligent DC-AC charging system that promoted by SICON to meet market demands,integrated AC charging interface, the human-computer interaction interface, high and low voltage power distribution, control and protection,support a very simple card operation and a common charging mode with electric cars.Ac charging pile design change numerous for brief, simple human-computer interaction with complete control protection integration within the small size of the charging module, pile appearance novel, exquisite design, all show the low carbon environmental protection, science and technology intelligence and the core concept of pragmatism.
Feature
1.Good human-computer interaction interface: touch screen, with the keyboard,guide the user, the operation is simple, humanized design is outstanding;
2.Various charging modes: support fixed time, fixed quantity, fixed amount and automatically filled with a variety of ways;
3.Intelligent charging terminal: charging real-time display information, including charging voltage, charging current, charging power, etc., with the running state display, fault condition monitoring and display, and other functions such as the current charging mode, has been filled Time, time remaining, rechargeable battery, for battery charging and billing information, the charging parameter setting, etc;
4.Mains interruption can still be swiped over charging process in 24 hours;
5.1000 trading data records, Don't disappear when power supply drop, automatically pair with the monitoring center;
6.Provide convenient and quick contact and non-contact IC card payment method, and the paper printing function.It will be display the charge transaction settlement information in the settlement interface after charged,and complete payment operation with he background monitoring system.
7.With stop (emergency stop charging by means of manual or remote communication), output sliding sideways electric protection, over current, short circuit and SPD protection,safety function with preventing wrong operation. Interlocking function to ensure safety that the car can’t start before the charging connector is separated from electric cars.
8.Shell is beautiful、easy and durable as adopting stainless steel and plastic spraying technology. Using advertising design concept, pile could change advertising paper easily with A wide range of advertising space.
9.Perfect moisture proof, prevent mold, salt fog, dustproof, waterproof, sunscreen, windproof, guard against theft, fire and other measures, it can make safety management come true with installed camera, and record through video monitoring.
10.Support RS - 485, CAN, Ethernet, and other communication interface, provide 3 G/GPRS interface, realize the network monitoring.
Application
have the electric vehicle charging module class cars, taxis, truck, bus and other slow charging.
Related Products
>> EVDS DC Fast Charging Pile
>> EVTS DC Charging Station (Multiple Outlets, Wide Range of AC Power Input)
>> DPM DC Charging Module
Related Solution
>> EV Charging Solution
EVAS series charging pile is an intelligent DC-AC charging system that promoted by SICON to meet market demands,integrated AC charging interface, the human-computer interaction interface, high and low voltage power distribution, control and protection,support a very simple card operation and a common charging mode with electric cars.Ac charging pile design change numerous for brief, simple human-computer interaction with complete control protection integration within the small size of the charging module, pile appearance novel, exquisite design, all show the low carbon environmental protection, science and technology intelligence and the core concept of pragmatism.
Browse and buy Fast Charging Pile online at sicon-emi.com direct today.
Feature
1.Good human-computer interaction interface: touch screen, with the keyboard,guide the user, the operation is simple, humanized design is outstanding;
2.Various charging modes: support fixed time, fixed quantity, fixed amount and automatically filled with a variety of ways;
3.Intelligent charging terminal: charging real-time display information, including charging voltage, charging current, charging power, etc., with the running state display, fault condition monitoring and display, and other functions such as the current charging mode, has been filled Time, time remaining, rechargeable battery, for battery charging and billing information, the charging parameter setting, etc;
4.Mains interruption can still be swiped over charging process in 24 hours;
5.1000 trading data records, Don't disappear when power supply drop, automatically pair with the monitoring center;
6.Provide convenient and quick contact and non-contact IC card payment method, and the paper printing function.It will be display the charge transaction settlement information in the settlement interface after charged,and complete payment operation with he background monitoring system.
7.With stop (emergency stop charging by means of manual or remote communication), output sliding sideways electric protection, over current, short circuit and SPD protection,safety function with preventing wrong operation. Interlocking function to ensure safety that the car can’t start before the charging connector is separated from electric cars.
8.Shell is beautiful、easy and durable as adopting stainless steel and plastic spraying technology. Using advertising design concept, pile could change advertising paper easily with A wide range of advertising space.
9.Perfect moisture proof, prevent mold, salt fog, dustproof, waterproof, sunscreen, windproof, guard against theft, fire and other measures, it can make safety management come true with installed camera, and record through video monitoring.
10.Support RS - 485, CAN, Ethernet, and other communication interface, provide 3 G/GPRS interface, realize the network monitoring.
Application
have the electric vehicle charging module class cars, taxis, truck, bus and other slow charging.
Related Products
>> EVDS DC Fast Charging Pile
>> EVTS DC Charging Station (Multiple Outlets, Wide Range of AC Power Input)
>> DPM DC Charging Module
Related Solution
>> EV Charging Solution
|

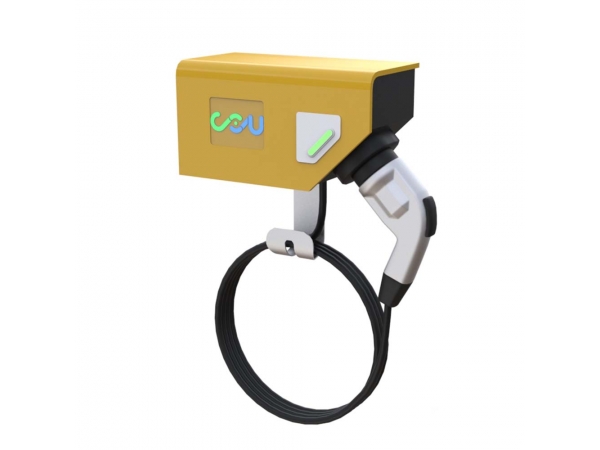

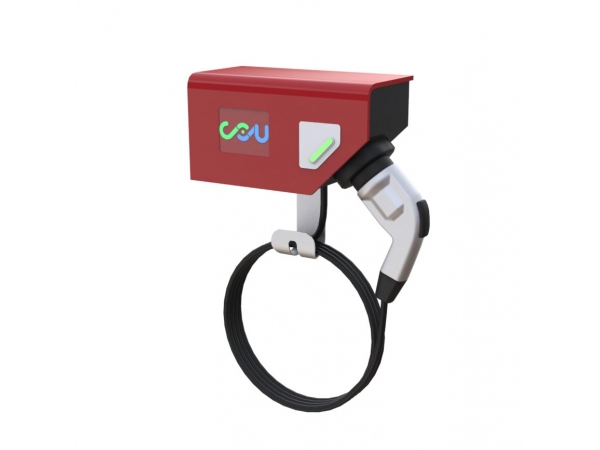

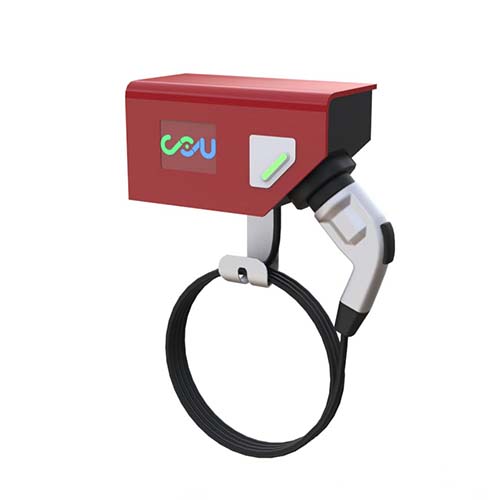

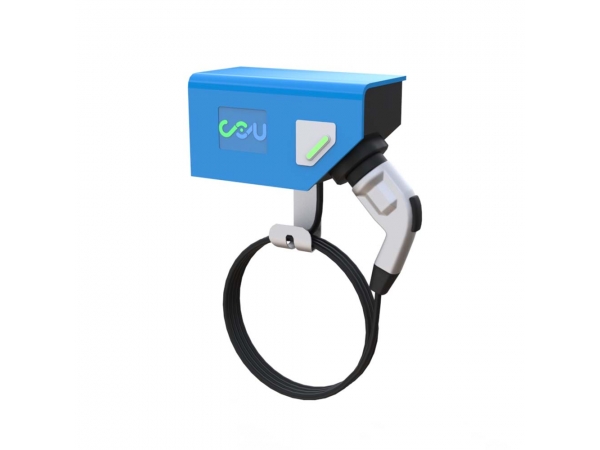

Product: EVmini Capacity: 16A, 32A. Input: single phase , protection degree: IP55. Configuring single-phase AC power meter, the consumption can be measured. Interlock function to avoid disconnecting of the connector and the car and ensure safety. |
 |
|
|

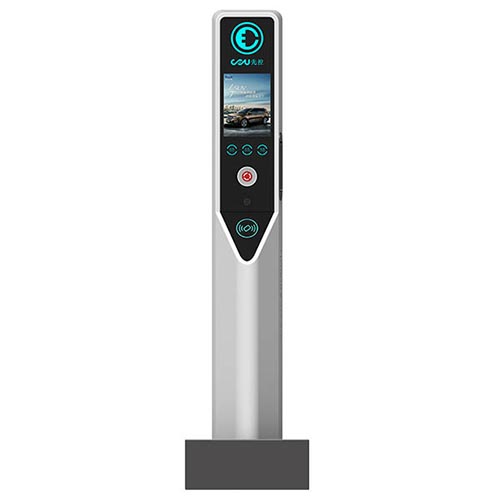

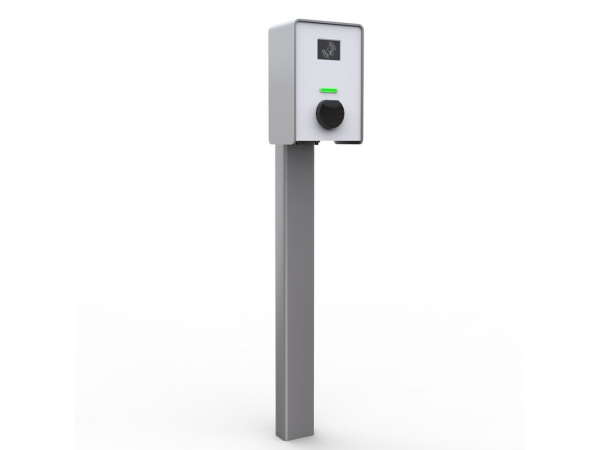

Product: EVsmart Capacity: 16A, 32A, 63A. Input: single phase (16A、32A), three phase (63A), protection degree：IP55 Configuring AC power meter, the consumption can be measured. |
 |
|
| Series | EVmini | EVsmart | |||||||||
| Model | EVAS-220/16F | EVAS-220V-32F | EVAS-220V-16C | EVAS-220/32C | EVAS-380/63C | ||||||
| EVAS-380/16F | EVAS-380V-32F | EVAS-380V-16C | EVAS-380/32C | ||||||||
| Input index | application | home | commercial | ||||||||
| Range of input voltage (V/AC) | 220±15% / 380±15% | ||||||||||
| Output current (A/AC) | 16 | 32 | 16 | 32 | 63 | ||||||
| Accuracy index | Voltage regulation accuracy (%) | ±0.5 | |||||||||
| Current regulation accuracy (%) | ±1 | ||||||||||
| Electric power measurement | Ac measurement, active level 1 (optional) | Ac measurement, active level 1 | |||||||||
| accuracy | |||||||||||
| Human-machine interaction | identity verification | ||||||||||
| Indicator type | Full color LED | ||||||||||
| LCD panel | Touch screen (optional) | Touch screen | |||||||||
| Charging | optional | standard | |||||||||
| installation | Wall mounted/pedestal mounted | ||||||||||
| Charging mode | According to amount | optional | standard | ||||||||
| According to capacity | optional | standard | |||||||||
| According to time | optional | standard | |||||||||
| Naturally charging | optional | standard | |||||||||
| Protection | Input overvoltage/over-voltage protection | standard | |||||||||
| Input over-current protection | standard | ||||||||||
| output over voltage/overcurrent protection | standard | ||||||||||
| Output short circuit | standard | ||||||||||
| Abnormal communication protection | standard | ||||||||||
| Emergency stop | standard | ||||||||||
| Environmental suitability | Ambient temperature (℃) | -40~60 | |||||||||
| Operating temperature (℃) | -20~60 | ||||||||||
| Altitude (m) | 2000 | ||||||||||
| Humidity (%) | 90 | ||||||||||
| Cooling | self cooling | ||||||||||
| Noise (dB) | ≤20dB | ||||||||||
| Communication methods | Communication interface | CAN-BUS、RS-485(optional) | CAN-BUS、RS-485(optional)Ethernet (reserve) | ||||||||
| charging interface | charging interface | GB/T20234.2-2011 | |||||||||
| interface number | 1(optional) | 1 or 2 (optional) | |||||||||
| interface extension | extensible | ||||||||||
| Protection degree | IP degree | IP55 | |||||||||
| Safety protection | Current leakage | ≤3.5mA | |||||||||
| Insulation resistance | >10MΩ | ||||||||||
| Insulation voltage resistance | 2000VAC | ||||||||||
| Impulse voltage resistance | 5000VAC | ||||||||||
| Electromagnetic compatibility | Electrostatic Discharge Immunity | 3 level | |||||||||
| Radio Frequency Electromagnetic | 3 level | ||||||||||
| Field Radiated Immunity | |||||||||||
| Electrical fast transient/burst immunity | 3 level | ||||||||||
| Surge immunity | 3 level | ||||||||||
| Immunity to Conducted Disturbance, | 3 level | ||||||||||
| Induced by RF Fields | |||||||||||
| Power frequency magnetic field immunity | 4 level | ||||||||||
| Color | Eight kinds of color option | ||||||||||
| Dimensions (W * D * H) (mm) | 350*150*180 | 270*250*1700 | |||||||||
