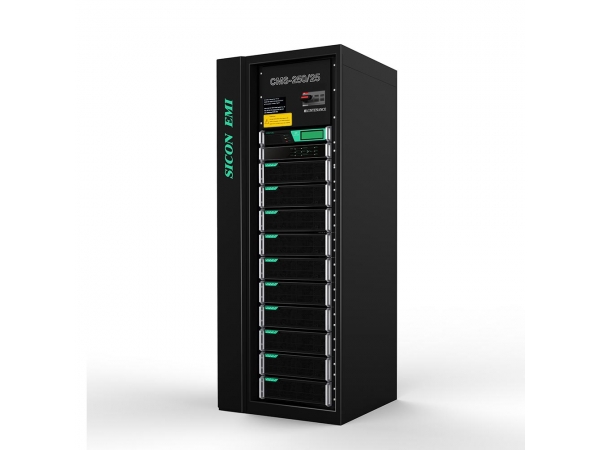

Sicon Modular Online UPS Power CMS-250/25

Power range: 25KVA-250KVA
Spec: 220/380VAC, 50/60Hz, 3-phase
Tech: high frequency modular UPS, Choice of UPS module (10KVA,25KVA,50KVA) result in rational redundancy. Modular, hot-swappable, field-replaceable STS, monitor, UPS module. Scalable from 25KVA to 250KVA. Parallel-capable up to 1000KVA.

Inquiry now
Overview
CMS UPS units are non-isolated, industrial level, green UPS, adopting advanced modular power protection concept. CMS Modular architecture can scale power as demand grows or as higher levels of availability are required. CMS UPS is industry-leading efficiency, availability, and performance for small, medium, and large data centers and mission critical environments.
Feature
    1.Rational redundant structure
    2.UPS module: 25 kVA; System: 250kVA
    3.Great performance index:overall efficiency ≥ 95%(AC-AC), inverter efficiency ≥ 98%(DC-AC), THDI ≤ 3%, and input PF ≥ 0.99 N+X module-level redundancy UPS System
    4.Multi-level decentralized control technology and Master-slave synchronization in sequency control which result in eliminate system failure bottleneck
    5.Each module automatically even shares the input and output current, all UPS modules share batteries
    6.Battery management: Battery discharge management, auto-transfer between floating and even charging, temperature compensation
    7.Space-saving high density design, Rack-based for agility and aesthetics
    8.Monitor Function:C/S-Oriented Architecture SICON Software which is available to monitor multiple UPS up to 600 sets;B/S-Oriented Architecture which is available to check via IE
    9.Standard configuration:Manual maintenance bypass, SPD(Class C), RS232, RS485/RS422 Communication ports, Remote monitor software, day contacts
    10.Optional configuration:EPO, Input/output Transformer, Battery Bank, IPDS(Intelligent Power Distribution System)
Application
    IDC date center, government,telecom,bank,security,transportation,broadcast&TV network, HealthCare, Communication, E-business,Finance etc.
System model CMS-250/25
Maximum power 25 kVA
Power module model 25 kVA
Mains Input Input mode 3-phase +N +E, 1-phase +N +E
Input voltage 380V/220V±20%, 400V/230V±20%, 415V/240V±20%
Input frequency 50Hz±10%, 60Hz±10%
Power woke-in (Sec.) 60sec
THDI (%) 3%
Input PF ≥0.99
Bypass Input Input voltage 380V/220V±20%, 400V/230V±20%, 415V/240V±20%
Input frequency 50 Hz, 60 Hz
Range of Frequency Synchro 50 Hz±4%, 60 Hz±4%
DC Input Rated Input voltage ±384VDC
Input voltage tolerance ±345V~±440V DC
Battery charging Charging current limited yes
Charging ability 10 hours (2 hours back up)
Stability of charging voltage ±1%
AC output UPS power factor 1
Output voltage 380V/220V AC, 400V/230V AC, 415V/240V AC
Output frequency ±4%;±0.2% (battery supply)
Output voltage stability ±1%
Output voltage recovering time 20ms (load 0~100% change)
Overload ability Operate 10mins with 125% load
Transfer from mains to battery supply 0ms
Transfer from bypass to inverter supply <1ms
Peak factor 3:01
Waveform distortion ≤1% ( linear load ), ≤3%( non-linear load )
Overall efficiency ≥95% (AC~AC), ≥98% (DC~AC)
Load share precision ≤5%
Operation environment Ambient temperature -25℃~60
Operating temperature -5℃~40
Maximum operation altitude ≤1500m
Relative humidity ≤95% non-cadency
Protection degree IP30
Cooling Air cooling
Applicable safety standards EN62040-1-1:2003 IEC60950-1:2001
Electromagnetic compatibility EN62040-2:2006
Acoustic noise ≤55DB
Others Cabinet Standard 19 inch cabinet
Monitor management system UPSupervisor
Interface RS232, RS485 and 8 try contact, TCP/IP adapter, SNMP(optional)
Display Touch LCD/LED Screen
Weight(kg) 220
