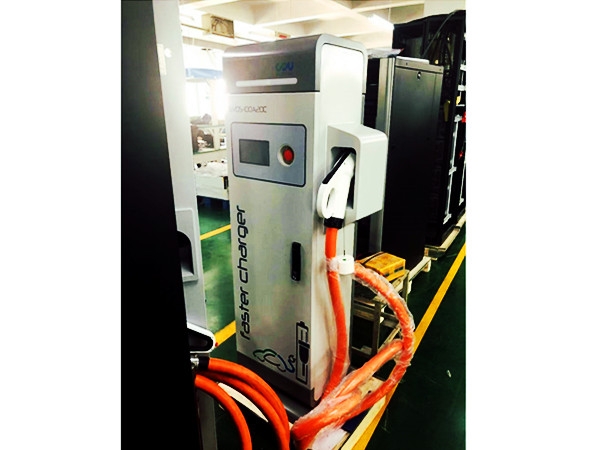

Bharat DC001 15kW EV Charger
EVDS-100A20C Fast Charging Station
Environment: Indoor / outdoor
Flexible multi-protocol design: GB/T
Application:
The Bharat DC 001 EV charger is designed to charge 48V/60V/72V electric vehicles with output power 15kW continuously.
Overview
The Bharat DC 001 EV charger is designed to charge 48V/60V/72V electric vehicles with output power 15kW continuously.
Feature
l 15kW DC fast charger supporting Bharat DC 001 specifications
l DC output range 40V~100V, 200A max
l High performance 40V~100V 15kW rectifier(DC power module)
l 2W vehicle charging at 48V with 3.3kW as optional configuration
l Reliable, Robust, modular hardware
l Simple, quick and easy installation
l LCD touch screen& user friendly interface
l Supports the open communication protocol OCPP
l RFID authorization
|
Model |
EVDS-100A20C |
|
|
Dimension |
500*300*1700 |
|
|
Input |
||
|
Rated input voltage |
415Vac |
|
|
Range of input voltage |
332V~456V |
|
|
Input AC limiting voltage |
600V |
|
|
Input frequency |
50/60Hz; Range:45Hz~65Hz |
|
|
Input PF |
≥0.99 |
|
|
Input AC voltage asymmetry degree |
≤5% |
|
|
Inrush starting current |
≤110% of working maximum current |
|
|
Output |
||
|
Output voltage |
40V-100V |
48V |
|
Output current |
200A |
50A（optional） |
|
Voltage regulation accuracy |
≤0.5% |
|
|
Current regulation accuracy |
Current≥30A,≤1%;Current<30A ,≤0.3A |
|
|
Stabilized current precision |
≤1% |
|
|
Stabilized voltage precision |
≤0.5% |
|
|
Peak to peak noise voltage of DC output |
≤0.5% (0MHz～20MHz ) |
|
|
Load effect |
±0.5%Vo (0～100% load) |
|
|
Dynamic response time |
≤200us |
|
|
Start up&Shutdown overshoot |
≤1%Vo |
|
|
Soft start time |
3~8s |
|
|
Overall efficiency |
95% |
|
|
Charging module parallel unbalanced degree |
≤±5% |
|
|
Model |
EVDS-100A20C |
|
|
Dimension |
500*300*1700 |
|
|
Input |
||
|
Rated input voltage |
415Vac |
|
|
Range of input voltage |
332V~456V |
|
|
Input AC limiting voltage |
600V |
|
|
Input frequency |
50/60Hz; Range:45Hz~65Hz |
|
|
Input PF |
≥0.99 |
|
|
Input AC voltage asymmetry degree |
≤5% |
|
|
Inrush starting current |
≤110% of working maximum current |
|
|
Output |
||
|
Output voltage |
40V-100V |
48V |
|
Output current |
200A |
50A（optional） |
|
Voltage regulation accuracy |
≤0.5% |
|
|
Current regulation accuracy |
Current≥30A,≤1%;Current<30A ,≤0.3A |
|
|
Stabilized current precision |
≤1% |
|
|
Stabilized voltage precision |
≤0.5% |
|
|
Peak to peak noise voltage of DC output |
≤0.5% (0MHz～20MHz ) |
|
|
Load effect |
±0.5%Vo (0～100% load) |
|
|
Dynamic response time |
≤200us |
|
|
Start up&Shutdown overshoot |
≤1%Vo |
|
|
Soft start time |
3~8s |
|
|
Overall efficiency |
95% |
|
|
Charging module parallel unbalanced degree |
≤±5% |
|
