350kW EVHS CCS HPC Ultra Fast Charging Station

Environment: Outdoor/Indoor

Design: CCS 2

Application:
public operations such as highway rest stops, petrol stations, airport etc.
private operations such as EV dealers, EV fleets etc.
Compatible car brands: BMW, Volkswagen, GM, Porsche, Audi, Peugeot, Citroen, Kia, Renault, Daimler, Mercedes, Jaguar

Inquiry now


Product description

EVHS-350, High Power Ultra Fast Charging Station is a new and innovative solution to the growing demand for fast high current charging of next-generation electric vehicles(E-Bus and Luxury EVs). EVHS-350 system adopts modular structure design and the most advanced ultra-fast charging technology. It consists of one power unit and 2 charge posts.

It’s a Fast Charger to charge any CCS Compatible eBus or eVehicles with 350kw, 500A max.



Main features


350 kW DC fast charger supporting CCS2

DC power up to 350 kW

Wide voltage range: 150-1000V
HPC Solution, Supports CCS connector up to 500A liquid-cooled cables
Reliable, robust, modular hardware

Simple, quick and easy installation

Daylight readable touch screen display

RFID authorization

Low operational noise

Customizable

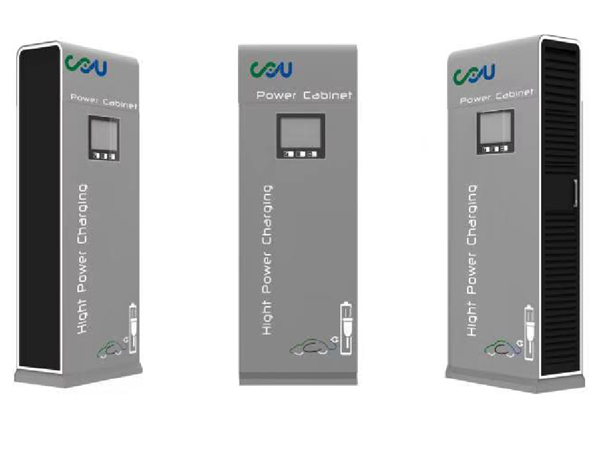

HPC Power Unit 350kW

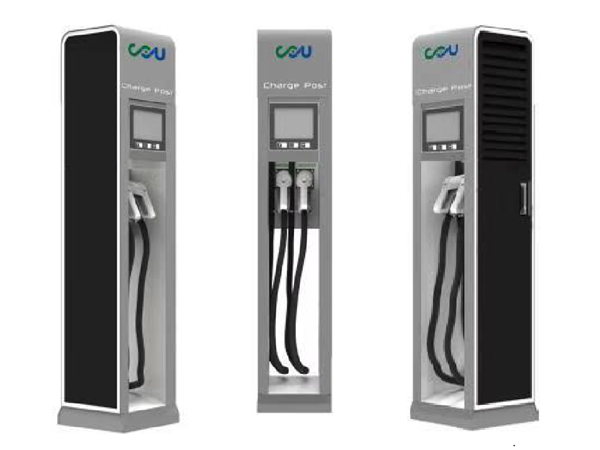

HPC Dispenser 500A/outlet

AC Input for the DC Output

Power connection

3P + N + PE

Voltage range

400 Vac ± 20 %

Frequency

50 Hz or 60 Hz

Power factor

> 0.99

Overall efficiency

95%

DC Output

Voltage

150Vdc to 1000Vdc

Max Current

500A

Nominal Power

350kW

General Specifications

Combo DC output (Mode-4)

DC-Interface

CCS 2

Display

10’’ TFT Color screen

RFID system

ISO/IEC14443A/B, Mifare;
(Optional: FeliCa™ 1, NFC reader mode, ISO/IEC15693, Calypso, Legic)

Network connection

 Standard configuration: LAN Interface;

 Support 2G/3G/4G/Wi-Fi modem.

Communication Protocols

OCPP 1.6J

Environment

Indoor / Outdoor

Operating temperature

 -35ºC-60ºC ( -20ºC to -30ºC, heating required)

Storage Temperature

 -40 ºC to +70 ºC

Operating humidity

≤95% non-condensing

Altitude

Up to 1000 m

Protection degree

IP54 , IK10

Acoustic noise

<55 dB
