Modular UPS 75-900kW (Li-ion BATT)

System Capicity: 75kW - 900kW

Module Capicity: 75kW

Wire in/out mode: 1/1, 1/3, 3/1, 3/3

Monitor module, bypass module and power module all are online hot swappable
Overall efficiency >96% (AC-AC), inverter efficiency >98% (DC-AC), input THDI<3%, input PF>0.99

Output PF 1

Inquiry now

Overview

Sicon CMS modular UPS, special used to IDC data center, is a high-end product launched to market by sicon adopting “Energy saving, green, environmental protection” concept. It delivers the best combination of rectifier, filter, charger, inverter and intelligent power protection. Applying innovative current sharing rectifier control, master-slave synchronization in sequence control, multi-level decentralized control and 3-level sine wave modulation technology, it features great efficiency, flexibility and reliability, reduces the investment, operation, maintenance cost.
CMS series modular UPS is a new type modular UPS, which integrated digital technology and new semiconductor technology, can completely eliminate the impact of various grid problems on key loads. Adopting 75KVA power modules, it features high power density, reliable, high efficiency and intelligence, provides ideal power supply protection for customers’ large and medium places.



Features

• Adopting modular structure, composed of monitor module, bypass module, control module and power module in parallel, power module N+X redundancy, hot swappable and scalable online.

• Parallel-capable up to 4sets UPS, meet N+1, 2N, △ 2N requirements;
• Monitor module, bypass module and power module all are hot swappable online;
• Wire in/out mode: 1/1, 1/3, 3/1, 3/3;
• Adopting non master-slave control, multi-level decentralized control eliminating the system failure bottleneck;
• All power modules share the batteries;
• Perfect battery management function: Battery self-discharge function, auto-transfer between floating and equal charging, temperature compensation and automatic share current;
• Any module has balanced distribution function for input, output and charging power;
• Overall efficiency >96% (AC-AC), inverter efficiency >98% (DC-AC), input THDI<3%, input PF>0.99;
• Continuous current mode (CCM) is adopted for AC input to reduce interference to power grid (RFI/EMI);
• Appearance in accordance with industry specifications. Can meet the load-bearing requirements of ordinary buildings with small size and weight;
• Option input and output K value isolation transformer;
• Standard configuration with manual maintenance breaker, RS232, RS484/RS422 communication ports and remote monitor software. Option SNMP, SPD and input&output breaker;
• Multiple work mode: online, ECO, iECO mode;
• System has energy storage function.


Application

IDC date center · Government · Telecom · Bank · Security · Transportation · Broadcast&TV network · HealthCare · Communication · E-business · Finance · etc.



Related Products

30-240kW Modular UPS based on 30kW UPS module

50-500kW Modular UPS based on 50kW UPS module


Contact Sicon Team


Youtube Videos:
SCU Modular UPS 3Phase 900kW Modular Uninterruptible Power Supply: https://youtu.be/wI_zL7q-znA

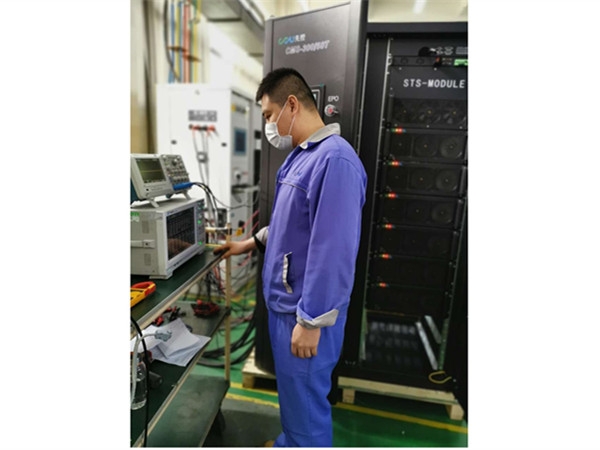

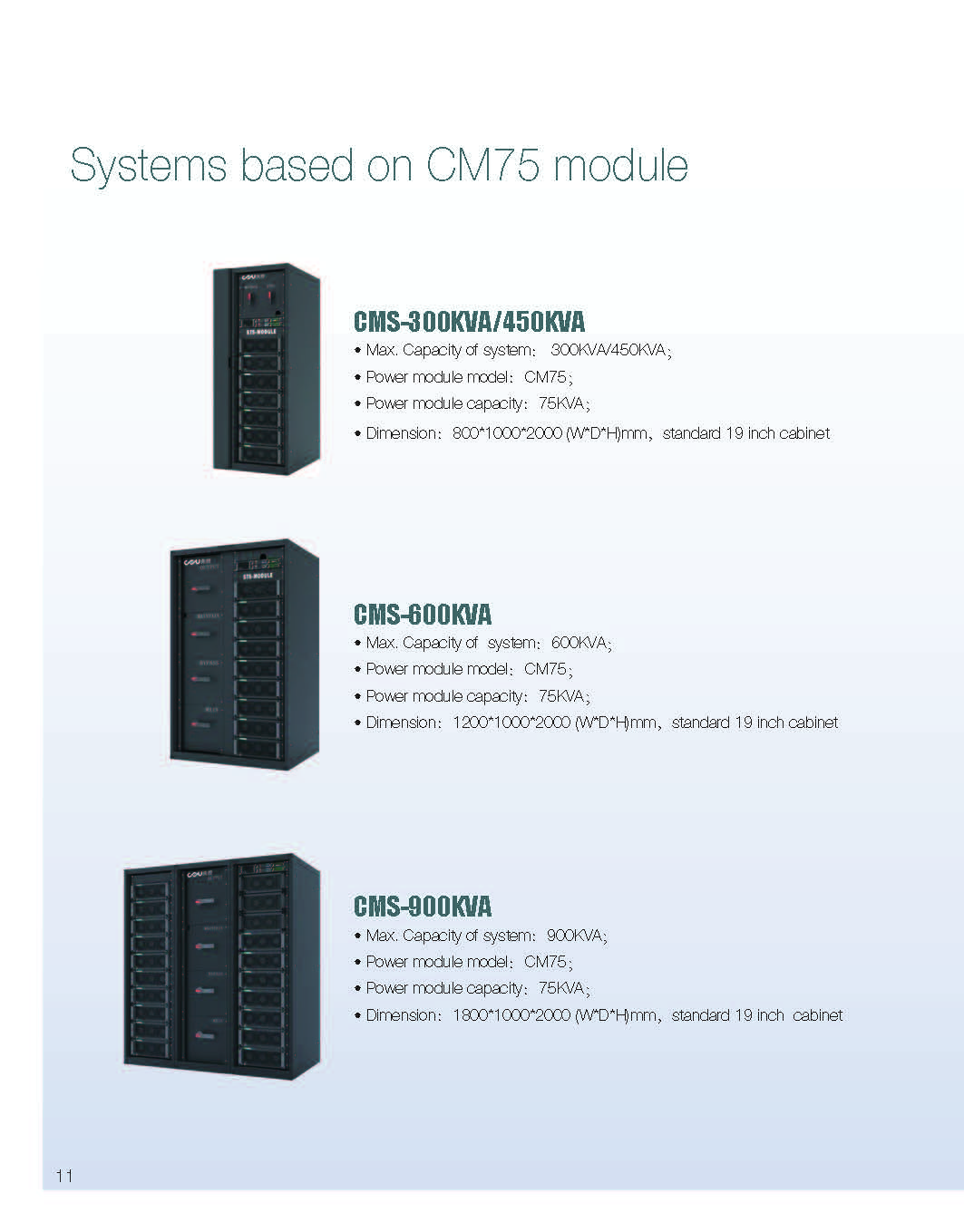

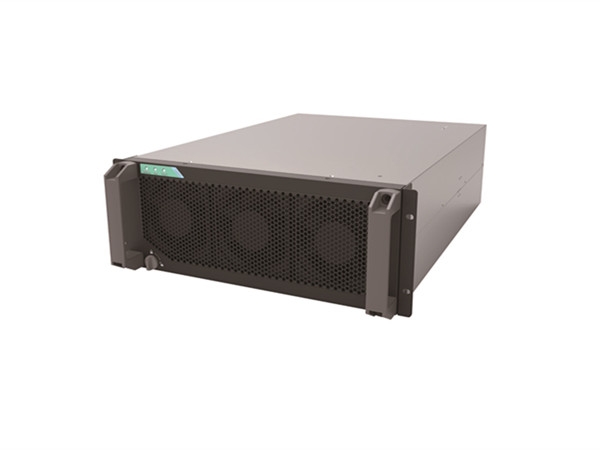

Systems based on 75kW UPS module

CMS-300/450

• Max. Capacity of system:300kW/450kW;

• Power module mode: CM75;

• Power module capacity: 75kW;

• Dimension: 800*1000*2000 (W*D*H)mm, standard 19 inch cabinet

 300kW/400kW Lithium Modular UPS

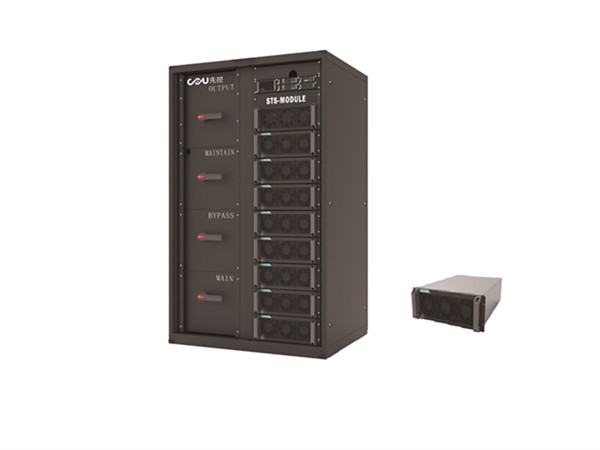

CMS-600

• Max. Capacity of system: 600kW;

• Power module model: CM75;

• Power module capacity: 75kW;

• Dimension: 1200*1000*2000 (W*D*H)mm, standard 19 inch cabinet

 600kW Lithium Modular UPS

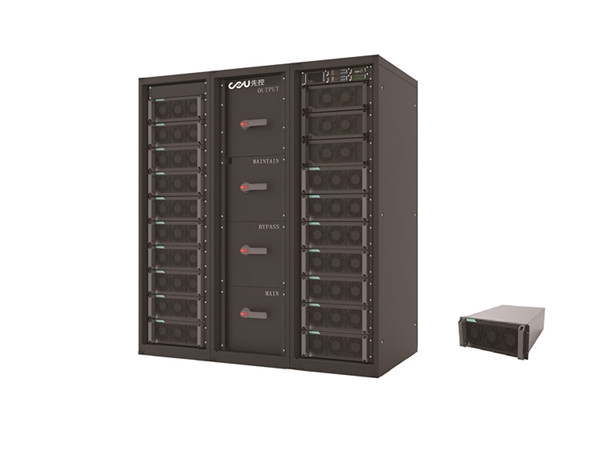

CMS-900

• Max. Capacity of system: 900kW;

• Power module mode: CM75;

• Power module capacity: 75kW;

• Dimension: 1800*1000*2000 (W*D*H)mm, standard 19 inch cabinet

900kW Lithium Modular UPS

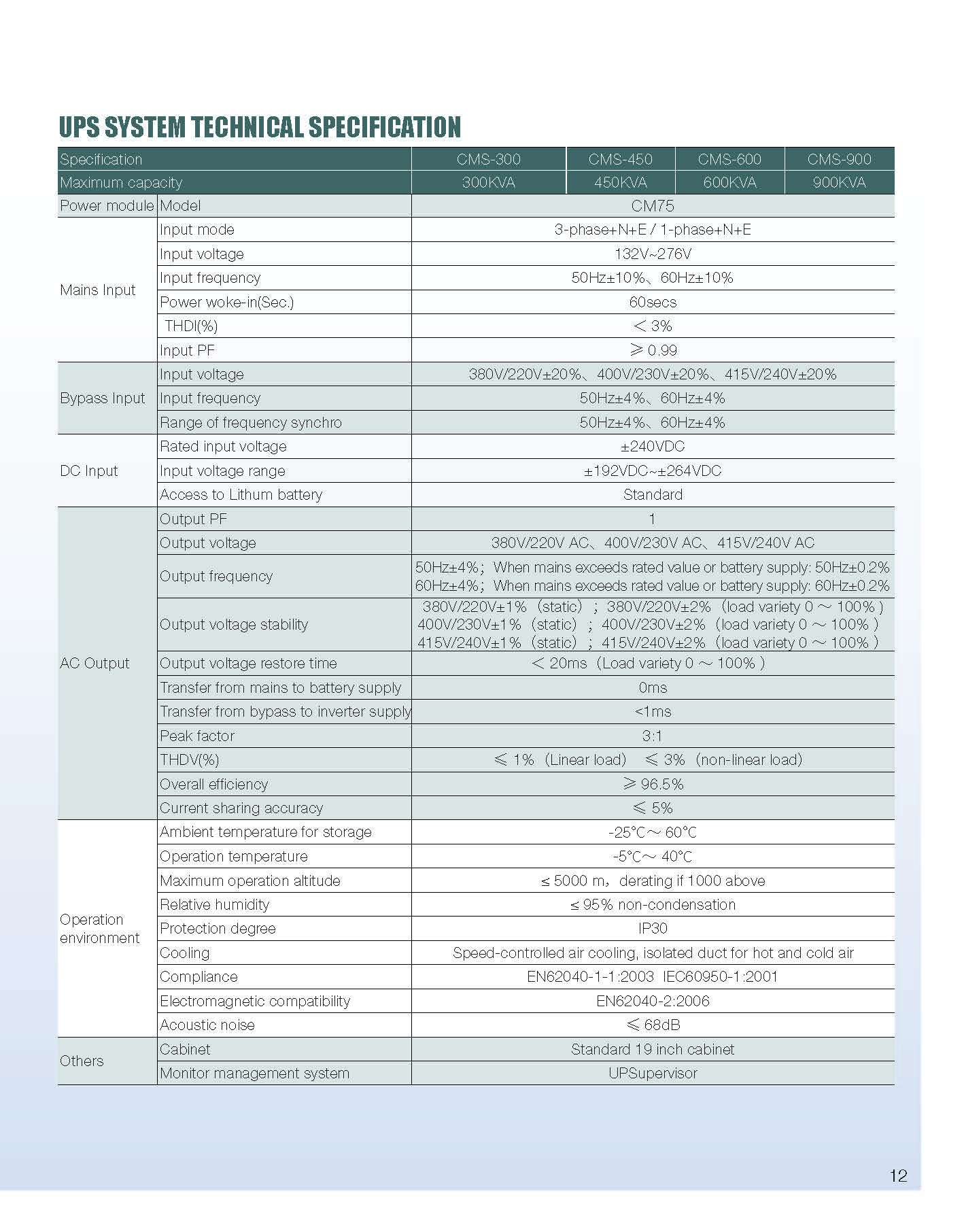

UPS SYSTEM TEHCNICAL SPECIFICATION


Specification

CMS-450                CMS-600                CMS-900

Output

Max Configurable Power

450kW/ 450kVA          600kW/ 600kVA          900kW/ 900kVA

Nominal Output Voltage

380/400/415 Vac, 3P4W (+PE) (share N with Bypass)

Frequency

50/60 Hz

Frequency tracking range

50/60Hz +/- 6 %

Frequency tracking rate

0.1 - 3 Hz/s (settable)

Topology

Online double conversion

Waveform type

Sine wave

Overload ability

10 minutes at 125%

Output Voltage THD

Less than 2 % ( Linear load )

Less than 4 % ( non-Linear load )

Output Voltage Tolerance

+/- 1% static

Input

Nominal Input Voltage

380/400/415 Vac, 3P4W (+PE)

TN/TT power distribution system

Input Voltage Range

132 - 276 Vac ( If 132 - 176 Vac, 50% load max. )

Input Frequency

50/60 Hz ( range: 40 - 70 Hz )

Input Power factor

0.99 (0.99), full load (half load)

Input current

957A, rated 3

THD

3%
