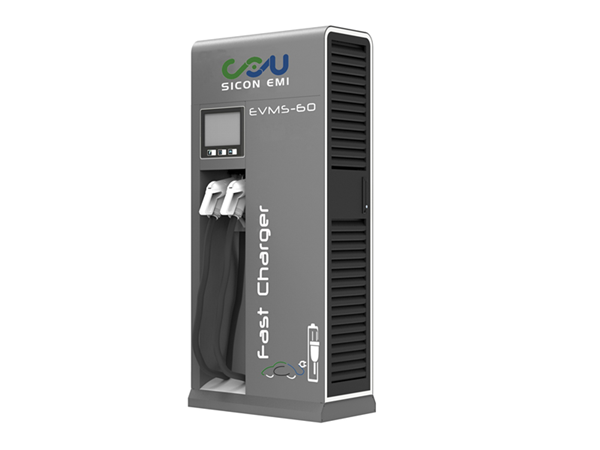

60kW EVMS CCS CHAdeMO EV Charger
EVMS Fast Charging Station
Environment: Indoor / outdoor
Flexible multi-protocol design: CCS, CHAdeMO and AC
Application:
public operations such as highway rest stops, petrol stations, airport etc.
private operations such as EV dealers, EV fleets etc.
Compatible car brands: BMW, Volkswagen, GM, Porsche, Audi, Nissan, Mitsubishi, Peugeot, Citroen, Kia, Renault, Daimler, Tesla, Smart, Mercedes, Jaguar
Environment: Indoor / outdoor
Flexible multi-protocol design: CCS 2, CHAdeMO and AC TYPY 2
Compatible EV range: ePassenger car, eBus, eTruck, eAircraft, eShip
Compatible car brands: BMW, Volkswagen, GM, Porsche, Audi, Nissan, Mitsubishi, Peugeot, Citroen, Kia, Renault, Daimler, Tesla, Smart, Mercedes
Product description

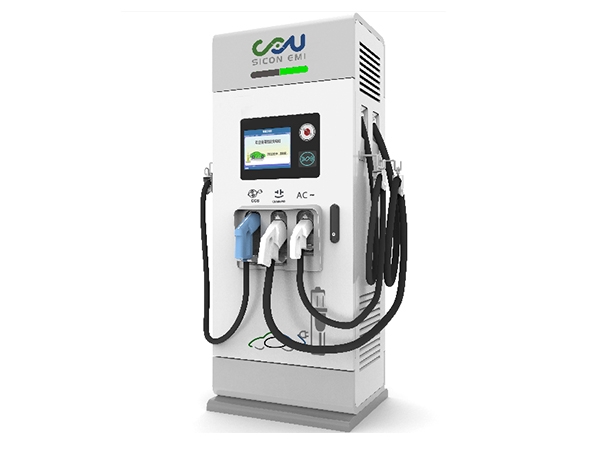

The EVMS-60 is a Fast Charging station able to charge all current and next generation vehicles with CCS, CHAdeMO and AC Type 2.
EVMS-60 charging station is a configurable single, dual or triple outlet(default) 60 kW fast charging station, supporting the charging needs of each customer. Application: highway rest stops, petrol stations, EV dealers, busy urban areas, etc.
Main features
60 kW DC fast charger supporting multiple standards as CCS 2, CHAdeMO, AC Type 2
Multiple outputs: DC power up to 60 kW, AC power up to 43 kVA
Reliable, robust, modular hardware
Simple, quick and easy installation
Daylight readable touch screen display
RFID authorization
Low operational noise
OCPP1.6J
Possible configurations
Typical Solution:
* 60kW CCS 2, CHAdeMO, 22kW AC TYPE 2
* 60kW CCS 2, CHAdeMO, 43kW AC TYPE 2
Popular Solution for European Market:
* 60kW Dual CCS 2, 22kW AC TYPE 2
* 60kW Dual CCS 2
* 60kW CCS 2, CHAdeMO
Customerized configuration:
Available
Youtube Videos:
SCU Electric Vehicle DC Fast Charging Station_CCS2, CHAdeMO, GBT: https://youtu.be/ocEgMMVwF0w
|
AC Input for the DC Output |
|
|
Power connection |
3P + N + PE |
|
Voltage range |
400 Vac ± 20 % |
|
Frequency |
50 Hz or 60 Hz |
|
Nominal input current & power |
87 A, 60 kVA |
|
Power factor |
> 0.99 |
|
Overall efficiency |
95% |
|
DC Output |
|
|
Voltage |
150Vdc to 1000 Vdc |
|
Max Current |
200A |
|
AC Output |
|
|
Voltage |
400 Vac |
|
Current |
63 A |
|
Nominal Power |
43 kVA |
|
General Specifications |
|
|
Multi-standard DC outputs (Mode-4), with AC (Mode-3) |
|
|
DC-Interface |
CCS 2, CHAdeMO |
|
AC-Interface |
Type 2 Plug (43kW)(default) |
|
Display |
10’’ TFT Color screen |
|
RFID system |
ISO/IEC14443A/B, Mifare; |
|
Network connection |
3G (GSM or CDMA) | LAN | Wi-Fi |
|
Communication Protocols |
OCPP 1.6 |
|
Environment |
Indoor / outdoor |
|
Operating temperature |
-35ºC-60ºC ( -20ºC to -30ºC, heating required) |
|
Storage Temperature |
-40 ºC to +70 ºC |
|
Operating humidity |
≤95% non-condensing |
|
Altitude |
Up to 2000 m |
|
Protection degree |
IP54 , IK10 |
|
Acoustic noise |
<55 dB |
|
Dimension (W*D*H) mm |
600*450*1850 |
|
Compliance and safety |
CE EN 61851-1:2011
EN 61851-22:2002
DIN 70121, ISO 15118 |
|
AC Input for the DC Output |
|
|
Power connection |
3P + N + PE |
|
Voltage range |
400 Vac ± 20 % |
|
Frequency |
50 Hz or 60 Hz |
|
Power factor |
> 0.99 |
|
Overall efficiency |
95% |
|
DC Output |
|
|
Voltage |
150Vdc to 1000 Vdc |
|
Max Current |
200A |
|
AC Output |
|
|
Voltage |
400 Vac |
|
Current |
63 A |
|
Nominal Power |
43 kW |
|
General Specifications |
|
|
Multi-standard DC outputs (Mode-4), with AC (Mode-3) |
|
|
DC-Interface |
CCS 2, CHAdeMO |
|
AC-Interface |
Type 2 Plug (43kW)(default) |
|
Display |
10’’ TFT Color screen |
|
RFID system |
ISO/IEC14443A/B, Mifare; |
|
Network connection |
Standard configuration: LAN Interface; |
|
Communication Protocols |
OCPP 1.6J |
|
Environment |
Indoor / outdoor |
|
Operating temperature |
-35ºC-60ºC ( -20ºC to -30ºC, heating required) |
|
Storage Temperature |
-40 ºC to +70 ºC |
|
Operating humidity |
≤95% non-condensing |
|
Altitude |
Up to 1000 m |
|
Protection degree |
IP54 , IK10 |
|
Acoustic noise |
<55 dB |
|
Dimension (W*D*H) mm |
600*450*1850 |
|
Compliance and safety |
CE EN 61851-1:2011
EN 61851-22:2002 DIN 70121, ISO 15118
|
