UPS Lithium-Ion Battery_ 92Ah
Battery Cell: 3.2V92Ah
Battery Pack: 51.2V92Ah
Battery Rack: ±240V92Ah Battery Rack (±256V92Ah)
Overview
UPS Lithium Ion Battery is key components for ESS solution, which is made of Battery packs/modules, BMS.
Introduction of Sicon Battery Rack
Battery cells are connected in series to achieve different voltage, for example,

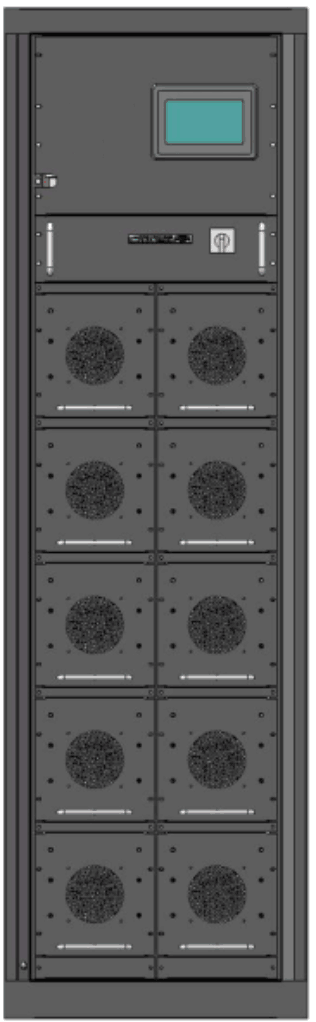

Battery Rack BC-±240/92
10 battery packs connect in parallel to form ±240V 47KWH battery cabinet. The UPS Li Ion Battery rack includes 10 battery packs, 1 BCU battery cluster management unit, 1 BMU battery pack management unit etc.

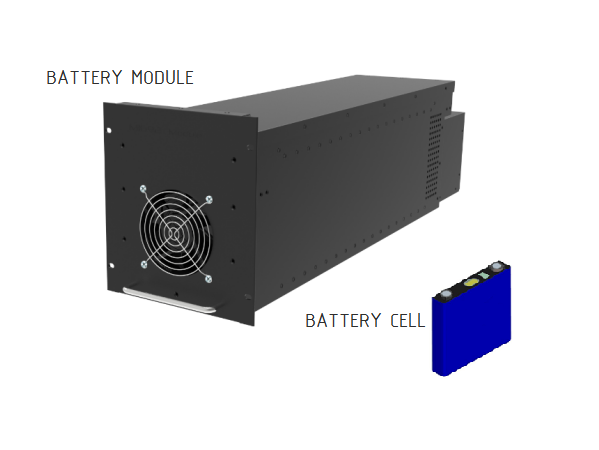

Each battery pack includes 16pcs 92Ah battery cell which connected in series.
Application
High-value, innovative energy storage protection solution for data centers, industrial processes and critical infrastructure.
Related Solution
>> ESS & Battery Solution
Module/Pack
Items
Specs
Total capacity
47kWH
Nominal voltage
±240V
Rated charge rate
2C@25℃
Max discharge rate
2C@25℃
Communication
CAN,RS485
Equalizing charge
Active
Cell
3.2V/92Ah LFP
Battery module
51.2V/92Ah(1P*16S)
Battery cabinet
±240V/92Ah(1P*160S)
Battery cabinet dimension (W*D*H)
600mm*1000mm*2000mm
