150kW EVMS CCS EV Charger

Environment: Indoor / outdoor

Design: CCS

Application:
public operations such as highway rest stops, petrol stations, airport etc.
private operations such as EV dealers, EV fleets etc.
Compatible car brands: BMW, Volkswagen, GM, Porsche, Audi, Peugeot, Citroen, Kia, Renault, Daimler, Mercedes, Jaguar

Inquiry now

Product description

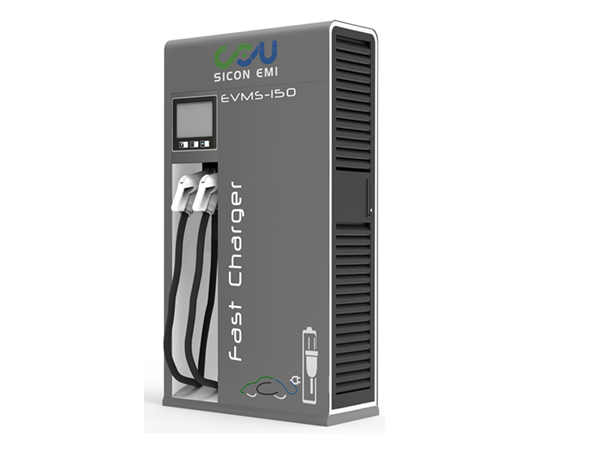

EVMS-150, high power charger for E-Bus and Luxury EVs. It’s a Fast Charger to charge any CCS Compatible Bus or Vehicles with 150kw.



Main features

150 kW DC fast charger supporting CCS2

DC power up to 150 kW

Reliable, robust, modular hardware

Simple, quick and easy installation

Daylight readable touch screen display

RFID authorization

Low operational noise

Customizable



Youtube Videos:

SCU Electric Vehicle DC Fast Charging Station_CCS2, CHAdeMO, GBT: https://youtu.be/ocEgMMVwF0w


AC Input for the DC Output

Power connection

3P + N + PE

Voltage range

400 Vac ± 20 %

Frequency

50 Hz or 60 Hz

Power factor

> 0.99

Overall efficiency

95%

DC Output

Voltage

150Vdc to 1000Vdc

Max Current

200A

Nominal Power

60 to 150kW

General Specifications

Combo DC output (Mode-4)

DC-Interface

CCS2

Display

10’’ TFT Color screen

RFID system

ISO/IEC14443A/B, Mifare;
(Optional: FeliCa™ 1, NFC reader mode, ISO/IEC15693, Calypso, Legic)

Network connection

3G (GSM or CDMA) | LAN | Wi-Fi

Communication Protocols

OCPP 1.6

Environment

Indoor / outdoor

Operating temperature

 -35ºC-60ºC ( -20ºC to -30ºC, heating required)

Storage Temperature

 -40 ºC to +70 ºC

Operating humidity

≤95% non-condensing

Altitude

Up to 2000 m

Protection degree

IP54 , IK10

Acoustic noise

<55 dB


AC Input for the DC Output

Power connection

3P + N + PE

Voltage range

400 Vac ± 20 %

Frequency

50 Hz or 60 Hz

Power factor

> 0.99

Overall efficiency

95%

DC Output

Voltage

150Vdc to 1000Vdc

Max Current

200A

Nominal Power

60 to 150kW

General Specifications

Combo DC output (Mode-4)

DC-Interface

CCS 2

Display

10’’ TFT Color screen

RFID system

ISO/IEC14443A/B, Mifare;
(Optional: FeliCa™ 1, NFC reader mode, ISO/IEC15693, Calypso, Legic)

Network connection

 Standard configuration: LAN Interface;

 Support 2G/3G/4G/Wi-Fi modem.

Communication Protocols

OCPP 1.6J

Environment

Indoor / Outdoor

Operating temperature

 -35ºC-60ºC ( -20ºC to -30ºC, heating required)

Storage Temperature

 -40 ºC to +70 ºC

Operating humidity

≤95% non-condensing

Altitude

Up to 2000 m

Protection degree

IP54 , IK10

Acoustic noise

<55 dB



Optional Configuration: CHAdeMO, AC TYPE 2.
