Power Conversion System (PCS) 2000kw

High power PCS 300-2000KW;

Wide DC input range;

Off grid inverting function

Inquiry now

Overview

MPCS adopts advanced digital control technology, optimizes the control performance, improves the reliability of the system, and realizes the uninterrupted switching between on-grid discharge, on-grid charging and off-grid operation. PCS system has a wide DC input range, which can better meet the charge and discharge requirements of different battery combinations. At the same time, PCS system adopts modular design in structure and power, which increases the diversity of battery connection and reduces the number of parallel battery groups under the same power output. It can better manage the battery, improve the battery life and the economic benefits of the energy storage system.


Features


  • The system includes grid connection mode, off grid mode, hybrid mode and other working modes;
  • Three level control technology, high efficiency and high power quality;
  • It can accept power grid dispatching,with RS485, CAN, Ethernet and other communication modes;
  • Low voltage ride through and reactive power compensation function;
  • Off grid inverting function, miro-grid composed of energy storage battery, PCS and PV battery board, to ensure uninterrupted power supply;
  • 100% unbalanced load capacity during off grid operation;
  • 110% of rated output power can be operated for a long time;
  • Adopt AC and DC dual input redundant power supply to ensure stable operation of control point source;
  • Modular system design improves the diversity of connection between battery pack and PCS system;
  • Adopt forward wind and up wind mode for full frontal maintenance.


Related Products
    >> Lead Carbon Battery
    >> Lithium Battery
    >> Sealed Lead Acid Battery


Related Solution
    >> ESS & Battery Solution

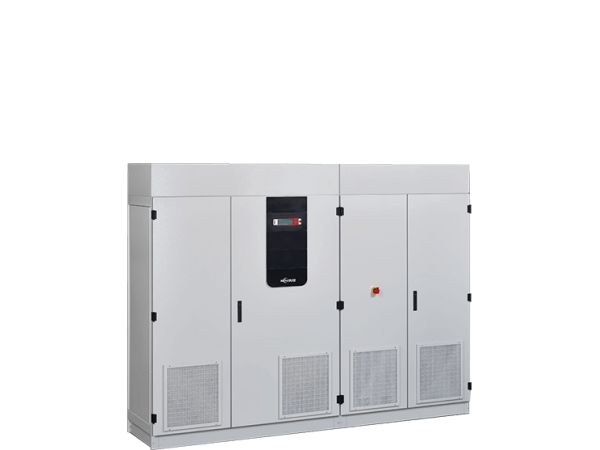

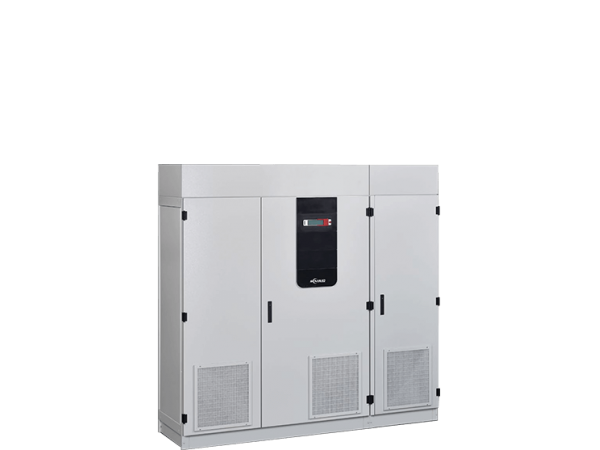

EHPCS-500/100

EHPCS-1000/100

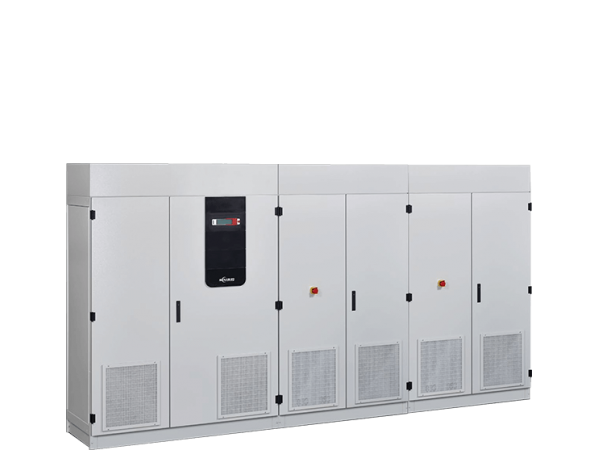

EPCS-2000/100


Model / Power

EPCS300/100;300 kW

EPCS400/100;400 kW

EPCS500/100;500 kW

EPCS600/100;600 kW

EPCS800/100;800 kW

EPCS1000/100;1000 kW

EPCS2000/100;2000 kW

DC parameter

voltage range when full load (V)

600-850

AC parameter

Rated grid voltage (V)

3W+N+PE, 380

3W+N+PE, 380V/10k/35k

Rated grid frequency (Hz)

50

Basic parameter

Max. efficiency

97.5%

Isolation mode

option isolated transfomer

On/off grid switching

STSoption without STS

display

Touch screen

Communication interface

RS485CANLAN

Communication protocol

Modbus-RTUModbus-TCPCAN2.0B

standards

CE,IEC62477,IEC61000
