Modular UPS 30-240kW (Li-ion BATT)

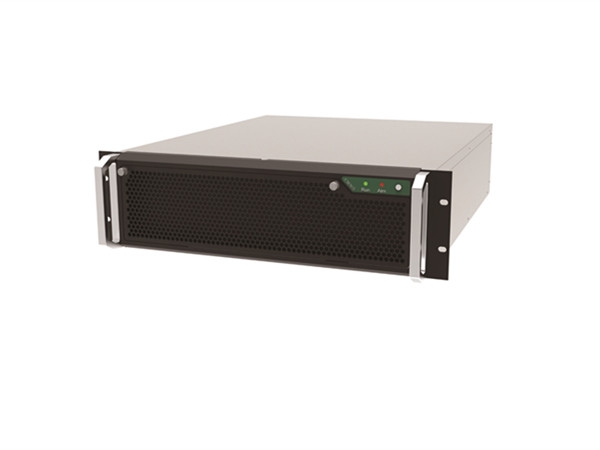

Module Capicity: 30kW
Wire in/out mode: 1/1, 1/3, 3/1, 3/3
Monitor module, bypass module and power module all are online hot swappable
Overall efficiency >96% (AC-AC), inverter efficiency >98% (DC-AC), input THDI<3%, input PF>0.99
Output PF 1
Overview
Sicon CMS modular UPS, special used to IDC data center, is a high-end product launched to market by sicon adopting “Energy saving, green, environmental protection” concept. It delivers the best combination of rectifier, filter, charger, inverter and intelligent power protection. Applying innovative current sharing rectifier control, master-slave synchronization in sequence control, multi-level decentralized control and 3-level sine wave modulation technology, it features great efficiency, flexibility and reliability, reduces the investment, operation, maintenance cost.
CMS series modular UPS is a new type modular UPS, which integrated digital technology and new semiconductor technology, can completely eliminate the impact of various grid problems on key loads. Adopting 30KVA power modules, it features high power density, reliable, high efficiency and intelligence, provides ideal power supply protection for customers’ large and medium places.
Features
• Adopting modular structure, composed of monitor module, bypass module, control module and power module in parallel, power module N+X redundancy, hot swappable and scalable online.
• Parallel-capable up to 4sets UPS, meet N+1, 2N, △ 2N requirements;
• Monitor module, bypass module and power module all are hot swappable online;
• Wire in/out mode: 1/1, 1/3, 3/1, 3/3;
• Adopting non master-slave control, multi-level decentralized control eliminating the system failure bottleneck;
• All power modules share the batteries;
• Perfect battery management function: Battery self-discharge function, auto-transfer between floating and equal charging, temperature compensation and automatic share current;
• Any module has balanced distribution function for input, output and charging power;
• Overall efficiency >96% (AC-AC), inverter efficiency >98% (DC-AC), input THDI<3%, input PF>0.99;
• Continuous current mode (CCM) is adopted for AC input to reduce interference to power grid (RFI/EMI);
• Appearance in accordance with industry specifications. Can meet the load-bearing requirements of ordinary buildings with small size and weight;
• Option input and output K value isolation transformer;
• Standard configuration with manual maintenance breaker, RS232, RS484/RS422 communication ports and remote monitor software. Option SNMP, SPD and input&output breaker;
• Multiple work mode: online, ECO, iECO mode;
• System has energy storage function.
Application
IDC date center · Government · Telecom · Bank · Security · Transportation · Broadcast&TV network · HealthCare · Communication · E-business · Finance · etc.
Related Products
50-500kW Modular UPS based on 50kW UPS module
75-900kW Modular UPS based on 75kW UPS module
Youtube Videos:
SCU Modular UPS 3Phase 900kW Modular Uninterruptible Power Supply: https://youtu.be/wI_zL7q-znA
|
Systems based on 30kW UPS module |
|
|

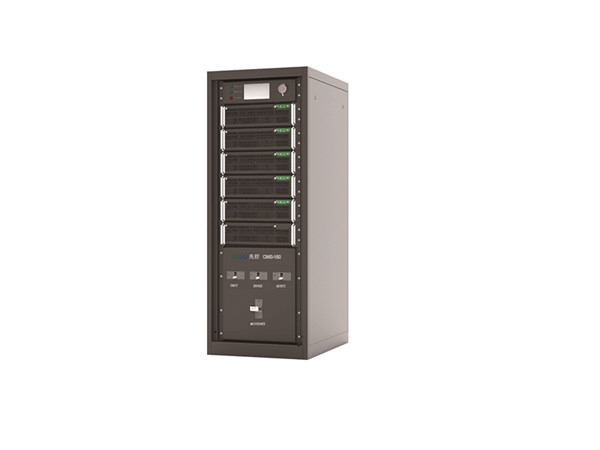

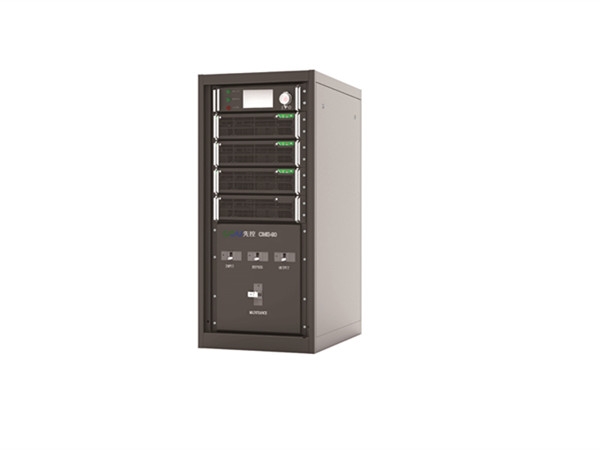

CMS-060/090 • Max. Capacity of system: 60kW/90kW; • Power module model: CM30; • Power module capacity: 30kW; • Dimension: 600*800*1400(W*D*H)mm, standard 19” cabinet |
|
|

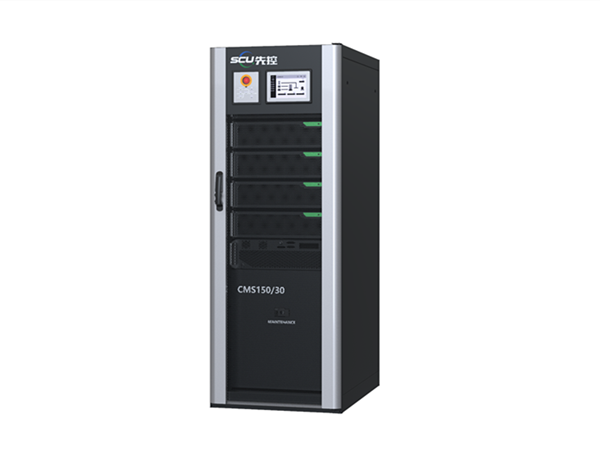

CMS-120/150 • Max. Capacity of system: 120kW/150kW; • Power module model: CM30; • Power module capacity: 30kW; • Dimension: 600*800*1600(W*D*H)mm, standard 19” cabinet |
|
|

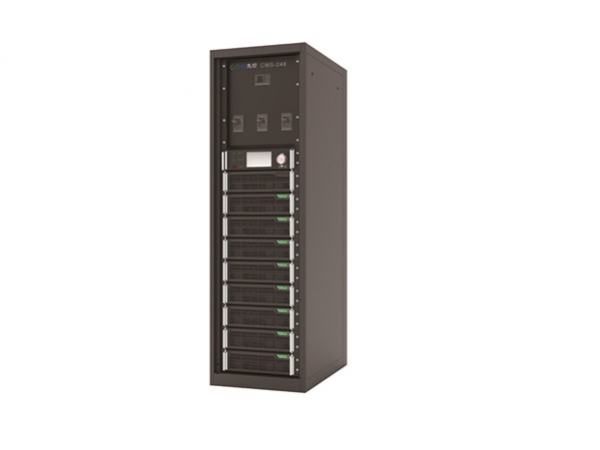

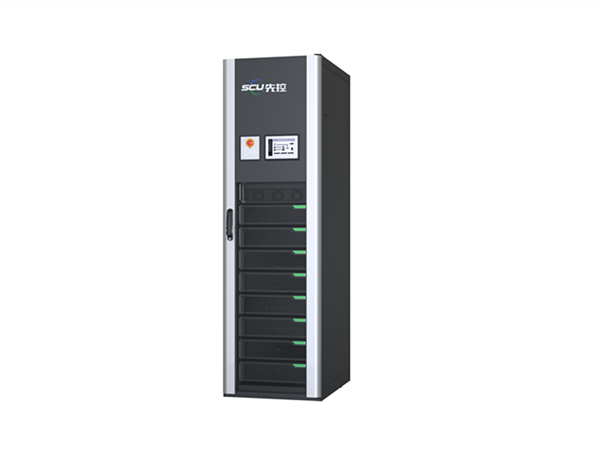

CMS-180/210/240 • Max. Capacity of system: 180kW/210kW/240kW; • Power module model: CM30; • Power module capacity: 30kW; • Dimension: 600*800*2000(W*D*H)mm, standard 19” cabinet
|
 |
|
System model |
CMS-060 |
CMS-090 |
CMS-120 |
CMS-150 |
CMS-180 |
CMS-210 |
CMS-240 |
|
|
Maximum power |
60 kW |
90 kW |
120 kW |
150 kW |
180 kW |
210 kW |
240KW |
|
|
Power module model |
CM30 |
|||||||
|
Mains Input |
Input mode |
3-phase +N +E, 1-phase +N +E |
||||||
|
Input voltage |
176V-264V |
|||||||
|
Input frequency |
50Hz±10%, 60Hz±10% |
|||||||
|
Power woke-in (Sec.) |
60sec |
|||||||
|
THDI (%) |
＜3% |
|||||||
|
Input PF |
≥0.99 |
|||||||
|
Bypass Input |
Input voltage |
380V/220V±20%, 400V/230V±20%, 415V/240V±20% |
||||||
|
Input frequency |
50 Hz, 60 Hz |
|||||||
|
Range of Frequency Synchro |
50 Hz±4%, 60 Hz±4% |
|||||||
|
DC Input |
Rated Input voltage |
±240VDC |
||||||
|
Input voltage tolerance |
±192VDC~±264V DC |
|||||||
|
AC output |
Output PF |
1 |
||||||
|
Output voltage |
380V/220V AC, 400V/230V AC, 415V/240V AC |
|||||||
|
Output frequency |
50Hz±4%;When mains exceeds rated value or power supplying by battery: 50±0.2% 50Hz±4%;When mains exceeds rated value or power supplying by battery: 60±0.2% |
|||||||
|
Output voltage stability |
±1%(static);±2%(Load variety 0~100%) |
|||||||
|
Output voltage recovering time |
＜20ms (load 0~100%) |
|||||||
|
Overload ability |
Operate 10mins with 125% load |
|||||||
|
Transfer from mains to battery supply |
0ms |
|||||||
|
Transfer from bypass to inverter supply |
<1ms |
|||||||
|
Peak factor |
3:1 |
|||||||
|
Waveform distortion |
≤1% ( linear load ), ≤3%( non-linear load ) |
|||||||
|
Overall efficiency |
≥96 |
|||||||
|
Load share precision |
≤5% |
|||||||
|
Operation environment |
Ambient temperature |
-25℃～60℃ |
||||||
|
Operating temperature |
-5℃～40℃ |
|||||||
|
Maximum operation altitude |
≤5000m, derating if above 1000m |
|||||||
|
Relative humidity |
≤95% non-condensation |
|||||||
|
Protection degree |
IP30 |
|||||||
|
Cooling |
Speed-controlled air cooling, Isolated duct for hot and cold air |
|||||||
|
Applicable safety standards |
EN62040-1-1:2003 IEC60950-1:2001 |
|||||||
|
Electromagnetic compatibility |
EN62040-2:2006 |
|||||||
|
Acoustic noise |
≤55dB |
|||||||
|
Others |
Cabinet |
Standard 19 inch cabinet |
||||||
|
Monitor management system |
UPSupervisor |
|||||||
|
Interface |
RS232, RS485 and 8 try contact, SNMP(optional) |
|||||||
|
Display |
LCD/LED |
|||||||
