EVMS EV Charging Stack

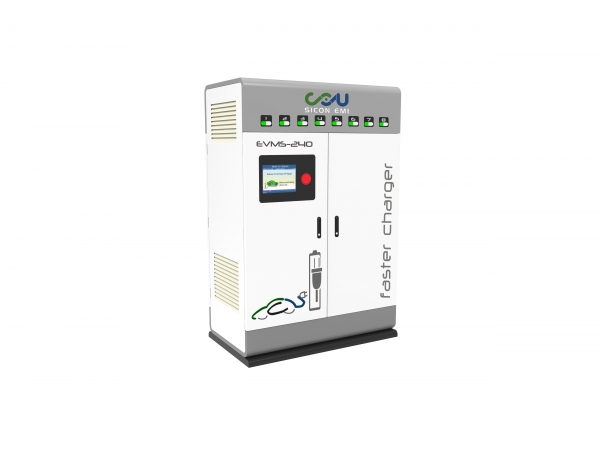

EVMS EV Charging Stack (Power Stack + Charge Post)
Application:
Parking lots and charging station where multiple DC charging service required.
Overview: EVMS series EV charging stack is a split-type charging system meeting multiple standards CCS, CHAdeMO, GB/T.
Adopting modular design concept and forefront power electronic technology,consists of power stack, control units and charge posts.Both Indoor and Outdoor types available.
Feature
Flexible multi-protocol designed: CCS, CHAdeMO, GB/T.
Flexible power distribution function, dynamically adjust output power according to the demand of electric vehicles.
Multi outlets to charge multiple vehicles simultaneously, the output and power as follows:
240KW indoor / outdoor type stack: 2, 4, 8 outlets, each output 0 ~ 60KW or 0 ~ 120KW;
360KW indoor type stack: 2 ~ 12 outlets, 30 ~ 180KW flexible output.
12.1 inch LCD/LED screen to display information in real time, easy operation and humanized user interface;
Support various online payment methods;
Insulation monitoring function, automatically turn off output to ensure safe charging;
High adaptability of temperature range, isolated heat dissipation air ducts, power heat dispassion is separated from control circuit to ensure dust-free of control unit.
High efficiency, high reliability, ultra low radiation, fast maintenance, flexible capacity expansion, energy efficiency and environmental protection.
|
Model |
EVMS-240 |
EVMS-360 |
|||
|
Use environment |
Outdoor/Indoor |
Indoor |
|||
|
System capacity |
240KW |
360KW |
|||
|
Maximum outlets |
8 |
12 |
|||
|
Output capacity of each route |
15~60KW or 0~120kw |
30 ~ 180kw |
|||
|
Input voltage |
400VAC±20% |
||||
|
Input voltage range |
260V~530V (260V~304VAC, output power derating 50%) |
||||
|
Current share precision |
<3% |
||||
|
Power factor |
>0.99 |
||||
|
Working frequency |
50/60HZ |
||||
|
Output voltage |
200VDC-500VDC/ 300VDC-750VDC/150VDC-1000VDC |
||||
|
Current regulation accuracy |
<1% |
||||
|
Voltage regulation accuracy |
<0.5% |
||||
|
Current share precision |
<3% |
||||
|
Overall efficiency |
95% |
||||
|
BMS auxiliary power supply |
12V/10A |
||||
|
Communication interface |
Ethernet, CAN/RS485, 3G/4G |
||||
|
Acoustic noise(dB) |
≤60dB |
||||
|
Protection degree |
DC power stack |
IP55(outdoor) |
IP30(indoor) |
||
|
charge post |
IP55(outdoor) |
||||
|
Dimension |
DC power stack |
1300*750*1950 |
900*1000*2000 |
||
|
Power distribution control cabinet |
- |
600*1000*2000 |
|||
|
charge post |
320*280*1740 |
||||
|
Model |
EVMS-240 |
EVMS-360 |
|||
|
Use environment |
Outdoor/Indoor |
Indoor |
|||
|
System capacity |
240KW |
360KW |
|||
|
Maximum outlets |
8 |
12 |
|||
|
Output capacity of each route |
15~60KW or 0~120kw |
30 ~ 180kw |
|||
|
Input voltage |
400VAC±20% |
||||
|
Input voltage range |
260V~530V (260V~304VAC, output power derating 50%) |
||||
|
Current share precision |
<3% |
||||
|
Power factor |
>0.99 |
||||
|
Working frequency |
50/60HZ |
||||
|
Output voltage |
200VDC-500VDC/ 300VDC-750VDC/150VDC-1000VDC |
||||
|
Current regulation accuracy |
<1% |
||||
|
Voltage regulation accuracy |
<0.5% |
||||
|
Current share precision |
<3% |
||||
|
Overall efficiency |
95% |
||||
|
BMS auxiliary power supply |
12V/10A |
||||
|
Communication interface |
Ethernet, CAN/RS485, 3G/4G |
||||
|
Acoustic noise(dB) |
≤60dB |
||||
|
Protection degree |
DC power stack |
IP55(outdoor) |
IP30(indoor) |
||
|
charge post |
IP55(outdoor) |
||||
|
Dimension |
DC power stack |
1300*750*1950 |
900*1000*2000 |
||
|
Power distribution control cabinet |
- |
600*1000*2000 |
|||
|
charge post |
320*280*1740 |
||||
