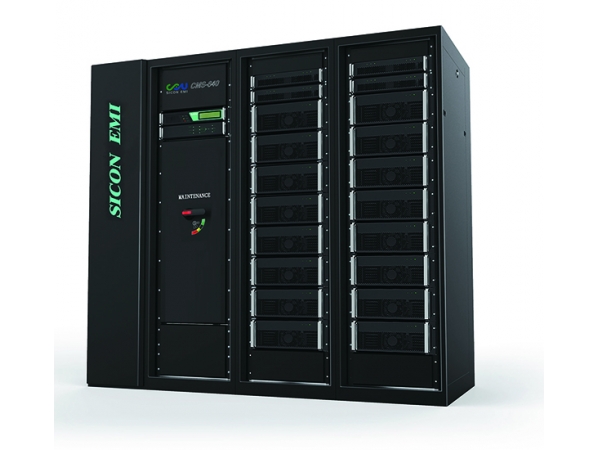

CMS Modular UPS 640 KVA
Module Capacity: 40KVA
3/3, 3/1, 1/3, 1/1; 50/60Hz; BOTTOM/TOP feed
High Frequency MODULAR UPS
Choice of UPS module result in rational redundancy
Modular, hot-swappable, field-replaceable STS, monitor, UPS module.
Overview
CMS UPS units are non-isolated, industrial level, green UPS, adopting advanced modular power protection concept. CMS Modular architecture can scale power as demand grows or as higher levels of availability are required. CMS UPS is industry-leading efficiency, availability, and performance for small, medium, and large data centers and mission critical environments.
Automatic control system of data rooms, communication rooms and power industry, power supply system of petrochemical industry, security prevention system of intelligent building and other mission critical environments.
Feature
Application
Small and medium-sized data center, government, telecom, bank, security, transportation, broadcast &TV network, HealthCare, Communication, E-business, Finance, etc.
Want to get more CMS Modular UPS product information, welcome to view more! Any question, please feel free to contact us.
Related Products
>> CMS Modular UPS 120-640KVA (Hot-swappable, 40KVA UPS module)
>> Rack Independent UPS Modular 25-200kVA (Rack independent, Full UPS functioned UPS Module)
>>Data Center And Facility UPS 350-800KVA (N+X redundancy, 50KVA UPS module)
|
Product: CMS-640
• Adaptable 40 to 640 kVA power capacity |
|
| CMS System model | CMS-640 | |
| Maximum power | 640 kVA | |
| Power module model | 40 kVA | |
| Mains Input | Input mode | 3-phase +N +G |
| Input voltage | 380Vac | |
| Voltage tolerance | -20%~+20% | |
| Input frequency | 45~65HZ | |
| Power woke-in (Sec.) | 60sec | |
| THDI (%) | ≤5% | |
| Input PF | ＞0.99 | |
| Bypass Input | Input voltage | ±20% |
| Input frequency | 50 Hz, 60 Hz | |
| Range of Frequency Synchro | 50 Hz±4%, 60 Hz±4% | |
| DC Input | Rated Input voltage | ±240VDC |
| Input voltage tolerance | ±210V ~ ±278V DC | |
| Battery charging | Charging current limited | yes |
| Charging ability | 10 hours (2 hours back up) | |
| Stability of charging voltage | ±1% | |
| AC output | power factor | 1 |
| Output voltage | 380Vac | |
| Output frequency | ±2Hz; ±0.1(battery supply) | |
| Output voltage stability | ±1% | |
| Output voltage recovering time | ＜20ms (load 0~100% change) | |
| Overload ability | 125%,10min | |
| Transfer from mains to battery supply | 0ms | |
| Transfer from bypass to inverter supply | <4ms | |
| Peak factor | 2.5:1 | |
| THDI | ＜ 3% with linear load / ＜ 6% with non-linear load | |
| Overall efficiency | ≥95% | |
| Load share precision | ≤5% | |
| Operation environment | Ambient temperature | -25℃ - 60℃ |
| Operating temperature | -5℃～40℃ | |
| Max operation altitude | 1500m | |
| Relative humidity | 0- 95%, non-cadency | |
| Protection degree | IP21(IP31 Option) | |
| Cooling | Air cooling | |
| Acoustic noise(1 m distance) | ≤55dB | |
| Others | Dimension(W×D×H)mm | 600×1000×1600 |
| Interface | Standard: RS232, RS485 and 6 dry contact. Optional: SNMP | |
| Display | Touch LCD/LED Screen | |
| Weight(kg) | 700 | |
