DPJ Smart PDU
DPJ series intelligent modular power distribution system provides flexible and utilized power solution.
Components

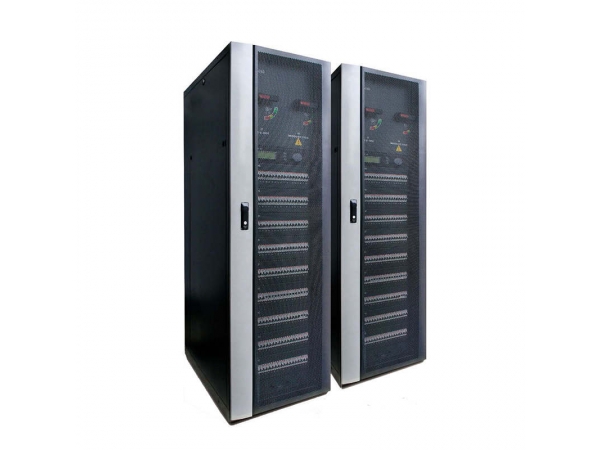

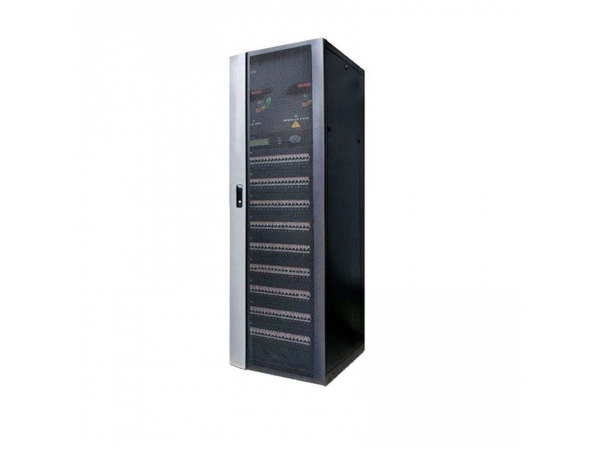

Standard System cabinet(input & output IMPDS or output IMPDS )
Output power distribution module
System monitor module
Overview
SICON-EMI DPJ series intelligent modular power distribution system (IMPDS) provides safe, manageable, scalable, maintenance input and output power distribution solution for UPS. We have Input & output IMPDS and output IMPDS. The IMPDS can real detect various index of the outlet optimize the cable management. The modular structure outlet switch supports online expansion and maintenance, and simplifies the installation and commission.
Feature
System functions:
1.The standard 19 inch 42U network-based cabinet structure
2.Surge Protection Module: surge protection module (Class C) as standard configuration. And Class B Module is also available on demand.
3.Closing the manual maintenance bypass, the UPS will not be connected to the power distribution system. The output power for load will not be shutdown
4.Mains dual input automatic transfer system – ATS (optional): ATS can offer the redundancy of input power supply and highly increase reliability of power system.
5.Output K-value isolation transformer (optional): The rated output power of transformer is the same as max rated power of the system under continuous full-load operation. This can effectively isolate the input power supply.
Monitor functions:
1.The system has strong monitor function. User can check the various performance index of the outlets and systems by local or remote monitor
Components of DPJ DPJ series intelligent modular power distribution system provides flexible and utilized power solution. Components
2.Standard System cabinet(input & output IMPDS or output IMPDS )
3.Output power distribution module
4.System monitor module
5.Mains dual input automatic transfer system (ATS)
6.Output K-value isolation transformer
Application
It is mainly used in the data center of various application sectors of finance, telecom, enterprises and government etc.
Related Products
>> DPQ STS 1 Phase & 3 Phase(2 Input Static Transfer Switch)
SICON-EMI DPJ series intelligent modular power distribution system (IMPDS) provides safe, manageable, scalable, maintenance input and output power distribution solution for UPS. We have Input & output IMPDS and output IMPDS. The IMPDS can real detect various index of the outlet optimize the cable management. The modular structure outlet switch supports online expansion and maintenance, and simplifies the installation and commission.
Feature
System functions:
1.The standard 19 inch 42U network-based cabinet structure
2.Surge Protection Module: surge protection module (Class C) as standard configuration. And Class B Module is also available on demand.
3.Closing the manual maintenance bypass, the UPS will not be connected to the power distribution system. The output power for load will not be shutdown
4.Mains dual input automatic transfer system – ATS (optional): ATS can offer the redundancy of input power supply and highly increase reliability of power system.
5.Output K-value isolation transformer (optional): The rated output power of transformer is the same as max rated power of the system under continuous full-load operation. This can effectively isolate the input power supply.
Monitor functions:
1.The system has strong monitor function. User can check the various performance index of the outlets and systems by local or remote monitor
Components of DPJ DPJ series intelligent modular power distribution system provides flexible and utilized power solution. Components
2.Standard System cabinet(input & output IMPDS or output IMPDS )
3.Output power distribution module
4.System monitor module
5.Mains dual input automatic transfer system (ATS)
6.Output K-value isolation transformer
Application
It is mainly used in the data center of various application sectors of finance, telecom, enterprises and government etc.
Related Products
>> DPQ STS 1 Phase & 3 Phase(2 Input Static Transfer Switch)
|
Product : Input & Output IMPDS Max 6 modules Consist of: Maintenance bypass, Monitor module, Breaker, Output power distribution module, Toll box, Output K-value isolation transformer, ATS, Terminals, Thunder-proof, COM port |
 |
|
|
Product : Output IMPDS Max 9 modules Consist of: Input power distribution, Maintenance bypass, Monitor module, Output power distribution module, Toll box, Terminals, COM port |
 |
|
|
Product : DPJ-CSU Monitor Module Easy and friendly six key menu Adopting decentralize control technology, the system monitor module can be changed online. Communication( local and remote ) |
|
|
|
Product : Output Power Distribution Module Modular structure, hot swap Easy and safe operations, maintenance and expansion Each module has 18 outlets. The outlet current can be set from 6A -32A. Flexible configuration according to the load. The system contains six power distribution module maximum, which can reach up to total 18-108\162 outlets |
|
|
|
Product : Mains Dual Input Automatic Transfer System (ATS) In case of any power supply failure, the control system will automatically and immediately switch into another powersupply input. ATS can offer the redundancy of input power supply and highly increase reliability of power system. |
|
|
|
Product : Output K-Value Isolation Transformer (Optional) The rated output power of transformer is the same as max rated power of the system under continuous full-load operation. It can effectively isolate the input power supply, and suppress the harmonics It functions to obtain the N- PE voltage in the safe standard rang |
|
|
| Model | DPJ-060 | DPJ-100 | DPJ-150 | DPJ-200 | DPJ-240 | |
| Capacity | 60KVA | 100KVA | 150KVA | 200KVA | 240KVA | |
| Matched UPS capacity | 60KVA | 100KVA | 150KVA | 200KVA | 240KVA | |
| UPS input breaker | 160A | 200A | 250A | 320A | —— | |
| UPS bypass breaker | 160A | 200A | 250A | 320A | —— | |
| UPS output breaker | 160A | 200A | 250A | 320A | 400A | |
| Manual bypass breaker | 160A | 200A | 250A | 320A | 400A | |
| ATS (optional) | 160A | 200A | 250A | 320A | 400A | |
| Overall efficiency | ﹥99% | |||||
| Mains input | Two-source | ATS (optional) | ||||
| Connection | 3-phase + N + E, 1-phase + N + E | |||||
| Voltage | 380V / 220V | |||||
| Frequency | 50/60HZ | |||||
| AC output | Connection | 3-phase + N + E, 1-phase + N + E, | ||||
| Voltage | 380V / 220V | |||||
| AC output outlets | Outlet outlets | 18 outlets per group, 18~108 /162outlet max | ||||
| Capacity of outlets breaker | 16～32A,1phase or 3-phase | |||||
| outlets breaker installation | Modular structure, online add or remove | |||||
| Communication | Standard RS485, RS422,RS232 | |||||
| Thunder-proof | Class C 5KV/20KVA (standard),class B (optional) | |||||
| EPO/REPO | optional | |||||
| K-value isolated transformer | optional | |||||
| Protection | IP30 | |||||
| Operation Temperature | -10℃～+40℃ | |||||
| Relative Humidity | 10%～90% non-cadency | |||||
| System structure | Standard 19 inch 42U IT cabinet | |||||
| Dimension W*D*H(mm) | 600*800*2000 | |||||
| Conformance | 3C approvals | |||||
