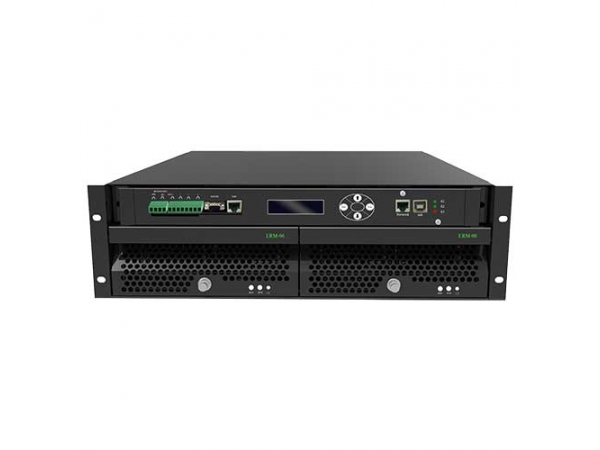

Modular UPS for Bank, ERMS-12/6
19’’ shelf
Truly Modular UPS
Full UPS functioned UPS Module
6kVA - 12kVA 6kVA UPS Module
High Frequency MODULAR UPS
Modular,hot-swappable, field-replaceable Monitor, UPS module.
Embedded modular power protection with ultra high availability and efficiency for Small Date Center.
Inquiry now
Truly Modular UPS
Full UPS functioned UPS Module
6kVA - 12kVA 6kVA UPS Module
High Frequency MODULAR UPS
Modular,hot-swappable, field-replaceable Monitor, UPS module.
Embedded modular power protection with ultra high availability and efficiency for Small Date Center.
Overview
ERMS series UPS is an embedded modular UPS of low and medium power developed by Sicon. With flexible structure, it could be embedded in standard 19 inch cabinet or work independently for de-centralized power supply. ERMS provides integrated power solution. Internal battery module and output PDU are available for optional configuration. It features superb input and output performance indexes. As a product with the smallest size, the highest efficiency and the greatest power density in the industry, it boasts extremely high cost-efficiency.
Feature
1.19’’ shelf embedded structure
2.UPS module: 6 kVA; System: 12kVA
3.Great performance index
overall efficiency ≥ 95%(AC-AC), inverter efficiency ≥ 98%(DC-AC), THDI ≤ 3%, and input PF ≥ 0.99
4.N+X module-level redundancy UPS System
5.Multi-level decentralized control technology and Master-slave synchronization in sequency control which result in eliminate system failure bottleneck
6.Each module automatically even shares the input and output current, all UPS modules share batteries
7.Battery management:
Battery discharge management, auto-transfer between floating and even charging, temperature compensation
8.Monitor Function
C/S-Oriented Architecture SICON Software which is available to monitor multiple UPS up to 600 sets;
B/S-Oriented Architecture which is available to check via IE
9.Standard configuration Manual bypass, RS232, RS485, dry contacts, TCP/IP adapter for local and remote communication,
10.Optional configuration Input/output Transformer, Battery Bank, IPDS(Intelligent Power Distribution System)
Application
ERMS series UPS is an embedded modular UPS of low and medium power developed by Sicon. With flexible structure, it could be embedded in standard 19 inch cabinet or work independently for de-centralized power supply. ERMS provides integrated power solution. Internal battery module and output PDU are available for optional configuration. It features superb input and output performance indexes. As a product with the smallest size, the highest efficiency and the greatest power density in the industry, it boasts extremely high cost-efficiency.
Feature
1.19’’ shelf embedded structure
2.UPS module: 6 kVA; System: 12kVA
3.Great performance index
overall efficiency ≥ 95%(AC-AC), inverter efficiency ≥ 98%(DC-AC), THDI ≤ 3%, and input PF ≥ 0.99
4.N+X module-level redundancy UPS System
5.Multi-level decentralized control technology and Master-slave synchronization in sequency control which result in eliminate system failure bottleneck
6.Each module automatically even shares the input and output current, all UPS modules share batteries
7.Battery management:
Battery discharge management, auto-transfer between floating and even charging, temperature compensation
8.Monitor Function
C/S-Oriented Architecture SICON Software which is available to monitor multiple UPS up to 600 sets;
B/S-Oriented Architecture which is available to check via IE
9.Standard configuration Manual bypass, RS232, RS485, dry contacts, TCP/IP adapter for local and remote communication,
10.Optional configuration Input/output Transformer, Battery Bank, IPDS(Intelligent Power Distribution System)
Application
Small server room, network, bank, security, transportation, broadcast&TV network, HealthCare, Communication, Finance
| System model | ERMS-12/6 | |
| Maximum power | 12KVA | |
| Power module model | ERM-06 | |
| Mains Input | Input mode | 3-phase +N +E, 1-phase +N +E |
| Input voltage | 380V/220V±20%, 400V/230V±20%, 415V/240V±20% | |
| Input frequency | 50Hz±10%, 60Hz±10% | |
| Power woke-in (Sec.) | 60sec | |
| THDI (%) | ＜3% | |
| Input PF | ≥0.99 | |
| Bypass Input | Input voltage | 380V/220V±20%, 400V/230V±20%, 415V/240V±20% |
| Input frequency | 50 Hz, 60 Hz | |
| Range of Frequency Synchro | 50 Hz±4%, 60 Hz±4% | |
| DC Input | Rated Input voltage | ±240VDC |
| Input voltage tolerance | ±216V~±246V DC | |
| Battery charging | Charging current limited | yes |
| Charging ability | 10 hours (2 hours back up) | |
| Stability of charging voltage | ±1% | |
| AC output | UPS power factor | 0.9 |
| Output voltage | 380V/220V AC, 400V/230V AC, 415V/240V AC | |
| Output frequency | ±4%;±0.2% (battery supply) | |
| Output voltage stability | ±1% | |
| Output voltage recovering time | ＜20ms (load 0~100% change) | |
| Overload ability | Operate 10mins with 125% load | |
| Transfer from mains to battery supply | 0ms | |
| Transfer from bypass to inverter supply | <1ms | |
| Peak factor | 3:01 | |
| Waveform distortion | ≤1% ( linear load ), ≤3%( non-linear load ) | |
| Overall efficiency | ≥95% (AC~AC), ≥98% (DC~AC) | |
| Load share precision | ≤5% | |
| Operation environment | Ambient temperature | -25℃～60℃ |
| Operating temperature | -5℃～40℃ | |
| Maximum operation altitude | ≤1500m | |
| Relative humidity | ≤95% non-cadency | |
| Protection degree | IP30 | |
| Cooling | Air cooling | |
| Applicable safety standards | EN62040-1-1:2003 IEC60950-1:2001 | |
| Electromagnetic compatibility | EN62040-2:2006 | |
| Acoustic noise | ≤55DB | |
| Others | Cabinet | Standard 19 inch cabinet |
| Monitor management system | UPSupervisor | |
| Interface | RS232, RS485, 2 try contact, TCP/IP adapter | |
| Display | LCD/LED | |
| Weight(kg) | 12 | |
