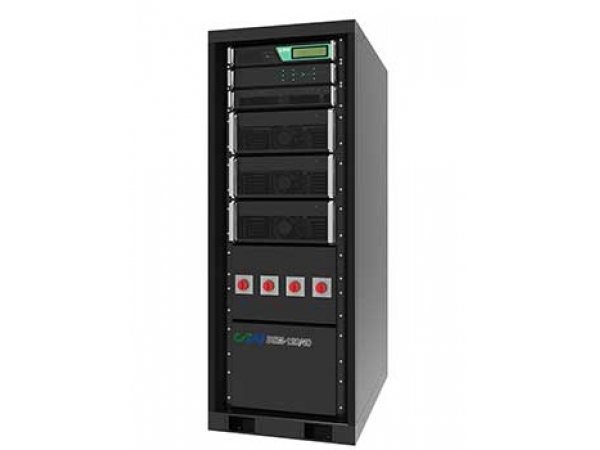

Sicon Modular UPS DSM-120/40
System Capacity: 120 KVA
Module Capacity: 40KVA
3/3, 3/1, 1/3, 1/1; 50/60Hz; BOTTOM/TOP feed
High Frequency MODULAR UPS
Choice of UPS module result in rational redundancy
Modular, hot-swappable, field-replaceable STS, monitor, UPS module.
Inquiry now
Module Capacity: 40KVA
3/3, 3/1, 1/3, 1/1; 50/60Hz; BOTTOM/TOP feed
High Frequency MODULAR UPS
Choice of UPS module result in rational redundancy
Modular, hot-swappable, field-replaceable STS, monitor, UPS module.
Overview
DSM UPS units are non-isolated, industrial level, green UPS, adopting advanced modular power protection concept. DSM Modular architecture can scale power as demand grows or as higher levels of availability are required. DSM UPS is industry-leading efficiency, availability, and performance for small, medium, and large data centers and mission critical environments.
Feature
1.Rational redundant structure
2.UPS module: 40kVA; System: 120kVA
3.Online hot swappable: all module online hot swappable, maintenance, expansion.
4.Great performance index：overall efficiency ≥ 94%(AC-AC), inverter efficiency ≥ 98%(DC-AC), THDI ≤ 5%, and input PF﹥0.99, N+X module-level redundancy UPS System
5.Multi-level decentralized control technology and Master-slave synchronization in sequency control which result in eliminate system failure bottleneck
6.Each module automatically even shares the input and output current, all UPS modules share batteries
7.Battery management: Battery discharge management, auto-transfer between floating and even charging, temperature compensation
8.Space-saving high density design, Rack-based for agility and aesthetics
9.Standard configuration: Manual maintenance bypass, SPD(Class C), RS232, RS485 Communication ports, SNMP (optional), Remote monitor software, dry contacts
10.Optional configuration: EPO, Input/output Transformer, Battery Bank, IPDS(Intelligent Power Distribution System)
Application
Small and medium-sized data center, government, telecom, bank, security, transportation, broadcast &TV network, HealthCare, Communication, E-business, Finance, etc.
Related Products
>> CMS Modular UPS 50-100KVA (Hot-swappable, 10KVA UPS module)
>> Rack Independent UPS Modular 25-200kVA (Rack independent, Full UPS functioned UPS Module)
DSM UPS units are non-isolated, industrial level, green UPS, adopting advanced modular power protection concept. DSM Modular architecture can scale power as demand grows or as higher levels of availability are required. DSM UPS is industry-leading efficiency, availability, and performance for small, medium, and large data centers and mission critical environments.
Feature
1.Rational redundant structure
2.UPS module: 40kVA; System: 120kVA
3.Online hot swappable: all module online hot swappable, maintenance, expansion.
4.Great performance index：overall efficiency ≥ 94%(AC-AC), inverter efficiency ≥ 98%(DC-AC), THDI ≤ 5%, and input PF﹥0.99, N+X module-level redundancy UPS System
5.Multi-level decentralized control technology and Master-slave synchronization in sequency control which result in eliminate system failure bottleneck
6.Each module automatically even shares the input and output current, all UPS modules share batteries
7.Battery management: Battery discharge management, auto-transfer between floating and even charging, temperature compensation
8.Space-saving high density design, Rack-based for agility and aesthetics
9.Standard configuration: Manual maintenance bypass, SPD(Class C), RS232, RS485 Communication ports, SNMP (optional), Remote monitor software, dry contacts
10.Optional configuration: EPO, Input/output Transformer, Battery Bank, IPDS(Intelligent Power Distribution System)
Application
Small and medium-sized data center, government, telecom, bank, security, transportation, broadcast &TV network, HealthCare, Communication, E-business, Finance, etc.
Related Products
>> CMS Modular UPS 50-100KVA (Hot-swappable, 10KVA UPS module)
>> Rack Independent UPS Modular 25-200kVA (Rack independent, Full UPS functioned UPS Module)
| DSM System model | DSM-120/40 | |
| Maximum power | 120 kVA | |
| Power module model | 40 kVA | |
| Mains Input | Input mode | 3-phase +N +G |
| Input voltage | 380Vac | |
| Voltage tolerance | -20%~+20% | |
| Input frequency | 45~65HZ | |
| Power woke-in (Sec.) | 60sec | |
| THDI (%) | ≤5% | |
| Input PF | ＞0.99 | |
| Bypass Input | Input voltage | ±20% |
| Input frequency | 50 Hz, 60 Hz | |
| Range of Frequency Synchro | 50 Hz±4%, 60 Hz±4% | |
| DC Input | Rated Input voltage | ±240VDC |
| Input voltage tolerance | ±210V ~ ±278V DC | |
| Battery charging | Charging current limited | yes |
| Charging ability | 10 hours (2 hours back up) | |
| Stability of charging voltage | ±1% | |
| AC output | power factor | 0.8 |
| Output voltage | 380Vac | |
| Output frequency | ±2Hz; ±0.1(battery supply) | |
| Output voltage stability | ±1% | |
| Output voltage recovering time | ＜20ms (load 0~100% change) | |
| Overload ability | 125%,10min | |
| Transfer from mains to battery supply | 0ms | |
| Transfer from bypass to inverter supply | <4ms | |
| Peak factor | 2.5:1 | |
| THDU | ＜ 3% with linear load / ＜ 6% with non-linear load | |
| Overall efficiency | ≥94% | |
| Load share precision | ≤5% | |
| Operation environment | Ambient temperature | -25℃ - 60℃ |
| Operating temperature | -5℃～40℃ | |
| Max operation altitude | 1500m | |
| Relative humidity | 0- 95%, non-cadency | |
| Protection degree | IP21(IP31 Option) | |
| Cooling | Air cooling | |
| Acoustic noise(1 m distance) | ≤55dB | |
| Others | Dimension(W×D×H)mm | 600×1000×1600 |
| Interface | Standard:RS232, RS485 and 6 dry contact(4 output; 2 input) Optional: SNMP | |
| Display | Touch LCD/LED Screen | |
| Weight(kg) | 125 | |
