Single Phase UPS for Network DSP11-6KVA/10KVA
Rated power: 6kVA/10kVA
Wire in/out mode: 1/1

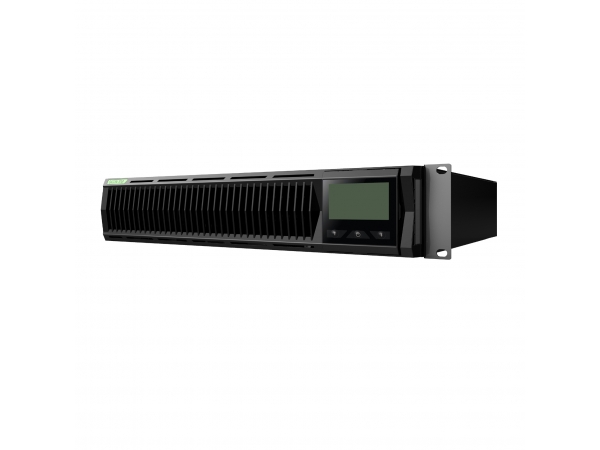

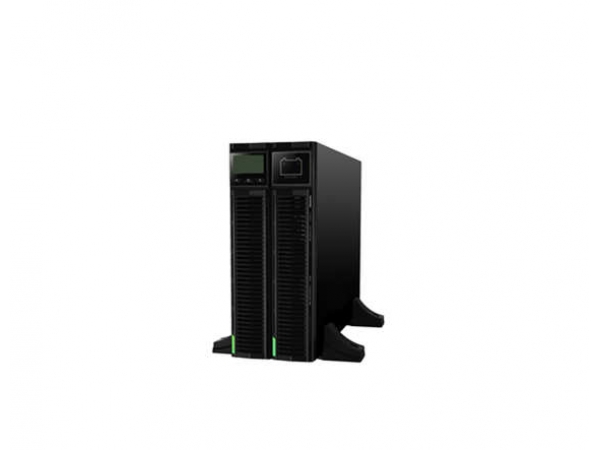

Rack mount and tower
Optional battery pack:
Lead acid battery or Lithium battery
Inquiry now
Wire in/out mode: 1/1
Rack mount and tower
Optional battery pack:
Lead acid battery or Lithium battery
Overview
DSP Series Rackmount UPS: High frequency On-line double conversion technology; Universal Rackmount and Tower model. Parallel function: AC output can be connected in parallel. 1+1 redundancy in power module protects the users’ data center. Application field: High power density data center, bank, security, vending machines system, Telecom/VoIP, etc.. Function: clean and persistent power supply, safeguards key equipment and Apps against shutdown, data loss and process interruption caused by power failure.
Feature
1.Universal Rackmount and Tower model; Rackmount DSP could be embedded in 19inch standard cabinet.
2.N+1 parallel connection is possible, redundant system ensures a more reliable power supply to the users’ load.
3.Intelligent fan speed regulation. System adjusts cooling and sends out alarm according to the temperature in the cabinet.
4.Intelligent battery management. System controls equalization and float charging, temperature compensation, discharge timing.
5.Variety of intelligent communication. Remote monitoring and control, easy management, suitable for unattended operation.
6.Variety of alarms. Real time visual alarm status available.
7.Accurate performance via DSP control technology. Variety of protection functions. For example, AC over/under voltage, battery input over/under voltage, inrush current, over temperature, output overcurrent, short circuit protection, output over/under voltage, monitor alarm, audible and visual indication, remote notification, etc.
Application
High power density data center, bank, security, vending machines system, Telecom/VoIP, etc.. Function: clean and persistent power supply, safeguards key equipment and Apps against shutdown, data loss and process interruption caused by power failure.
DSP Series Rackmount UPS: High frequency On-line double conversion technology; Universal Rackmount and Tower model. Parallel function: AC output can be connected in parallel. 1+1 redundancy in power module protects the users’ data center. Application field: High power density data center, bank, security, vending machines system, Telecom/VoIP, etc.. Function: clean and persistent power supply, safeguards key equipment and Apps against shutdown, data loss and process interruption caused by power failure.
Feature
1.Universal Rackmount and Tower model; Rackmount DSP could be embedded in 19inch standard cabinet.
2.N+1 parallel connection is possible, redundant system ensures a more reliable power supply to the users’ load.
3.Intelligent fan speed regulation. System adjusts cooling and sends out alarm according to the temperature in the cabinet.
4.Intelligent battery management. System controls equalization and float charging, temperature compensation, discharge timing.
5.Variety of intelligent communication. Remote monitoring and control, easy management, suitable for unattended operation.
6.Variety of alarms. Real time visual alarm status available.
7.Accurate performance via DSP control technology. Variety of protection functions. For example, AC over/under voltage, battery input over/under voltage, inrush current, over temperature, output overcurrent, short circuit protection, output over/under voltage, monitor alarm, audible and visual indication, remote notification, etc.
Application
High power density data center, bank, security, vending machines system, Telecom/VoIP, etc.. Function: clean and persistent power supply, safeguards key equipment and Apps against shutdown, data loss and process interruption caused by power failure.
| Model | DSP11-6KVA | DSP11-10KVA | ||
| Power | 6KVA | 10KVA | ||
| DC input | ||||
| Voltage | 92/240VDC | |||
| Max charging current | 3A | 5A | ||
| Battery | External battery | |||
| AC input | ||||
| Input rated voltage | 1 phase, 3 Wire, 220V/230V/240V | |||
| Input voltage range | 176Vac~264Vac | |||
| Input current harmonic | ≤3% Rated input and linear load | |||
| Input power factor | 0.99(100% linear load) | |||
| Input frequency | 40~70Hz | |||
| Frequency Synchro range | ±10% | |||
| Frequency Synchro rated | 0.5~2Hz/s | |||
| AC output | ||||
| AC output voltage | 220Vac/230Vac/240Vac | |||
| Output power factor | 0.8 | |||
| Output active power | 4.8KW | 8KW | ||
| Output frequency | 50/60Hz | |||
| Output frequency stability | ±0.1(battery power) | |||
| Output THDU | 3%(liner load) | |||
| Output voltage accuracy | ±2% | |||
| Transient range | ±5%(load changing 0%~100%~0%) | |||
| Transient duration | 20ms | |||
| Peak factor | 3:1(rated input) | |||
| Output delay at power-on | 5~60s | |||
| overload | 5min 125% rated load | |||
| Overall efficiency | 92% | 93% | ||
| Transfer time Bypass-Inverter | ≤ 4ms | |||
| Parallel current unbalancedness | 5%( ＞50% load ) | |||
| Communication | RS232/USB / SNMP (optional) | |||
| Others | ||||
| Mounting | Rackmount / tower | |||
| Acoustic noise | ≤55dB | ≤58dB | ||
| MTBF | 100000h | |||
| Heat-dissipating method | Force air cooling | |||
| Protection level | IP20 | |||
| Enclosure material | Cladding aluminum galvanized,cold-rolled steel sheet,panel:plastic spraying processing | |||
| Mounting | Rackmount | |||
| Dimension (W*D*H)mm | 430*622*88 | 430*622*88 | ||
| Weight (kg) | 17 | 17 | ||
| Mounting | tower | |||
| Dimension (W*D*H)mm | 190*369*318 | 190*369*318 | ||
| Weight (kg) | 12 | 16 | ||
