VRM Car Charger
Input voltage:90-264V,
Single module power:3.3KW、6.0KW;
THDI<3%, input PF>0.99
Efficiency: 95%
Digital control technology
Inquiry now
Single module power:3.3KW、6.0KW;
THDI<3%, input PF>0.99
Efficiency: 95%
Digital control technology
Overview

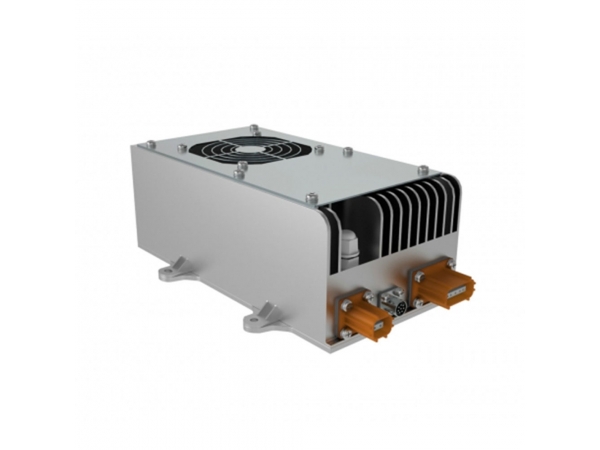

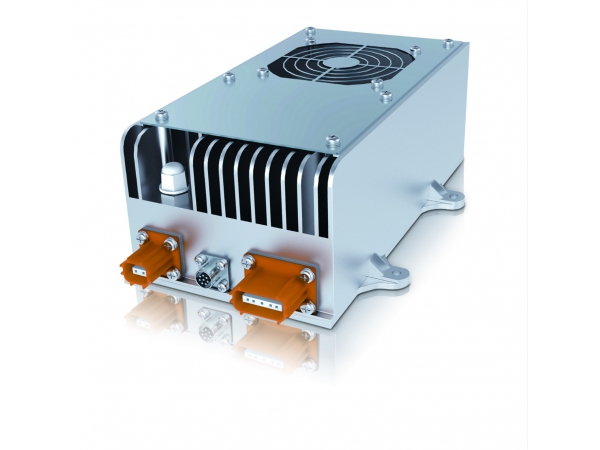

VRM360 series is an intelligent On-board DC Vehicle charging pile promoted by SICON to meet market demands.It adopts advanced modular structure design concept and cutting-edge electronic circuit technology.As on-board build-in power module matched electric car,it transfers AC mains to DC power supplied for electric cars,providing reliable DC power supply for electric car battery.Rectifier module input is single-phase mains,output DC is 200VDC-450VDC / 250VDC-650VDC / 300VDC-750VDC,meet the demand of different voltage battery pack.It features boot self-check、AC input over/under voltage protection、output overload protection、over temperature protection inside the module. Active power factor calibration technology and DC-DC conversion technology adopt full digital DSP control technology. The DC-DC power circuit uses alternating tri-level series resonance soft switch technology, the efficiency of which can reach 300KHz, with high reliability, high availability, high maintainability and high efficiency.
Feature
1.Wide input voltage range:90-264V, input surge protection design,single module power:3.3KW、6.0KW;
2.Using DSP digital control technology,realizing pure digital control from input to output;
3.Adopting decrease power device bearing stress alternating series resonance soft switch technology
4.Input harmonic<3%, input PF 0.99, system efficiency >95%;
5.Ultra wide output voltage range 250~420VDC,adjustable,and could meet the demand of varies voltage of battery pack;
6.Low output DC ripple,has no effect on battery life;
7.Monitor equipped with standard CAN communication interface,easy to exchange data with external device;
8.Protections such as over voltage protection、under voltage alarm at input side,over current、short circuit protection at output side;
9.It has 13.8VDC auxiliary power,for BMS in car.
Application
Vehicles with: on-board DC charger such as electric cars, taxis, engineering vehicles and coaches.
VRM360 series is an intelligent On-board DC Vehicle charging pile promoted by SICON to meet market demands.It adopts advanced modular structure design concept and cutting-edge electronic circuit technology.As on-board build-in power module matched electric car,it transfers AC mains to DC power supplied for electric cars,providing reliable DC power supply for electric car battery.Rectifier module input is single-phase mains,output DC is 200VDC-450VDC / 250VDC-650VDC / 300VDC-750VDC,meet the demand of different voltage battery pack.It features boot self-check、AC input over/under voltage protection、output overload protection、over temperature protection inside the module. Active power factor calibration technology and DC-DC conversion technology adopt full digital DSP control technology. The DC-DC power circuit uses alternating tri-level series resonance soft switch technology, the efficiency of which can reach 300KHz, with high reliability, high availability, high maintainability and high efficiency.
Feature
1.Wide input voltage range:90-264V, input surge protection design,single module power:3.3KW、6.0KW;
2.Using DSP digital control technology,realizing pure digital control from input to output;
3.Adopting decrease power device bearing stress alternating series resonance soft switch technology
4.Input harmonic<3%, input PF 0.99, system efficiency >95%;
5.Ultra wide output voltage range 250~420VDC,adjustable,and could meet the demand of varies voltage of battery pack;
6.Low output DC ripple,has no effect on battery life;
7.Monitor equipped with standard CAN communication interface,easy to exchange data with external device;
8.Protections such as over voltage protection、under voltage alarm at input side,over current、short circuit protection at output side;
9.It has 13.8VDC auxiliary power,for BMS in car.
Application
Vehicles with: on-board DC charger such as electric cars, taxis, engineering vehicles and coaches.
| Model | VRM360P20000W | VRM360P6000W | VRM360P3200W |
| Input capacity | 20KW | 6.0KW | 3.3KW |
| Range of input voltage | 220Vac/380Vac | 220Vac | |
| Input frequency | 50/60HZ | ||
| Input PF | 0.99 | ||
| THDI | ≤3% | ||
| efficiency | 95% | ||
| Output voltage | 200VDC-450VDC / 250VDC-650VDC / 300VDC-750VDC | ||
| BMS auxiliary power | 13.8VDC | ||
| Output current | 10.3A/360V;7.5A/13.8VDC | ||
| Voltage regulation accuracy | ＜0.5%(13.8VDC＜1%) | ||
| Current regulation accuracy | ＜1% | ||
| Peak-to-Peak noise voltage of DC output | ＜1% | ||
| Overshoot | ＜10% | ||
| Soft-start time | 5S | ||
| Operating temperature | -40℃~65℃ | ||
| Storage temperature | -40℃~70℃ | ||
| Relative Humidity | 5%-95%,40℃±2℃,non-condensing | ||
| altitude | 4000m | ||
| dimension | 385*410*97 | 250*410*97 | 250*265*97 |
| Cooling | Air cooling/water cooling | ||
| Protection degree | IP67 | ||
