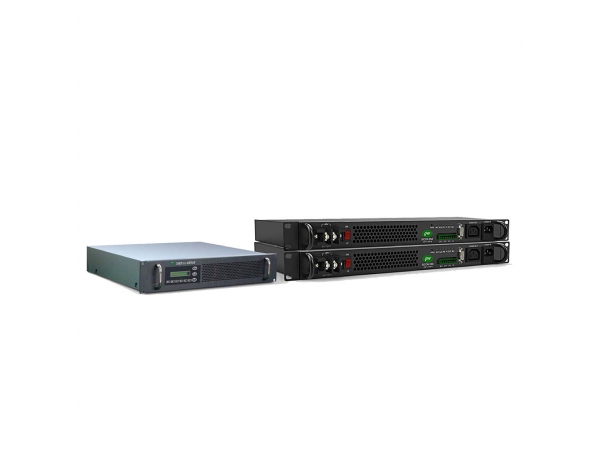

DHP RM Inverter 1-3KVA
DC-AC inverter
DC input: 48VDC, 110VDC or 220VDC
AC output: 220VAC Pure sine wave, single phase
Inquiry now
DC input: 48VDC, 110VDC or 220VDC
AC output: 220VAC Pure sine wave, single phase
Overview
DHP11 series Inverter is DC-AC sine wave inverter.
It is rated for 1KVA, 2KVA, 3KVA at 48 V, 110V, 220 V, 50Hz.
It is designed for telecommunication and electric power equipments.
Feature
1.SPWM modulation, microprocessor, and software program technology all contribute to the reliability and stability of the inverter
2.Using industry level microprocessor device from INTE, MICROCHIP
3.Rated power: 1KVA, 2KVA, 3KVA
4.AC input first or DC input first can be choice by client
5.Human friendly interactive LCD Display
6.DC input: 48 V, 110V, 220 V
7.Communication: RS232, dry contact
8.Protections: With Input over/Low voltage protection; output over/Low voltage protection; output overload, short circuit protection; over temperature protection, battery Low voltage protection alarm or shutdown
Application
elecommunication station, electrical substation and environments with poor utility grid conditions.
Related Products
>> Modular Inverter 3-18KVA
DHP11 series Inverter is DC-AC sine wave inverter.
It is rated for 1KVA, 2KVA, 3KVA at 48 V, 110V, 220 V, 50Hz.
It is designed for telecommunication and electric power equipments.
Feature
1.SPWM modulation, microprocessor, and software program technology all contribute to the reliability and stability of the inverter
2.Using industry level microprocessor device from INTE, MICROCHIP
3.Rated power: 1KVA, 2KVA, 3KVA
4.AC input first or DC input first can be choice by client
5.Human friendly interactive LCD Display
6.DC input: 48 V, 110V, 220 V
7.Communication: RS232, dry contact
8.Protections: With Input over/Low voltage protection; output over/Low voltage protection; output overload, short circuit protection; over temperature protection, battery Low voltage protection alarm or shutdown
Application
elecommunication station, electrical substation and environments with poor utility grid conditions.
Related Products
>> Modular Inverter 3-18KVA
| Model | DHP11-1KVA | DHP11-2KVA | DHP11-3KVA | |
| Rated Capacity | 1KVA | 2 kVA | 3 kVA | |
| Input | DC input rated voltage | 48VDC, 110VDC, 220VDC | ||
| range | 40V~60V, 92V~132V, 187V~264V | |||
| AC input rated voltage | 220VAC（single phase） | |||
| AC input voltage range | 176~264VAC | |||
| AC input frequency range | 47Hz~53Hz | |||
| power factor | Comply with EN605552 | |||
| output | output voltage | 220VAC±3% （DC input） | ||
| power factor | 0.7 ( inductive load, capacitive load ) | |||
| voltage distortion | ≤3%（linear load）; ≤8%（non-linear load） | |||
| frequency | 50Hz±0.5% | |||
| peak factor | 3:01 | |||
| overall efficiency | ≥88% （DC input） | |||
| dynamic response transient range | output voltage ≤10%（load 10%～100% or 100～10%） | |||
| acoustic noise：（1m） | ≤55dB | |||
| environment | operating temperature | -5℃~40℃ | ||
| relative humidity | 0～95％non-cadency | |||
| operating altitude | ≤1000m | |||
| ambient temperature | -40℃~70℃ | |||
| others | cooling | Air cooling with fan | ||
| protection | IP20 | |||
| Dimension（W*D*H）mm | 430*250*88 | |||
| weight | ≤5kg | |||
