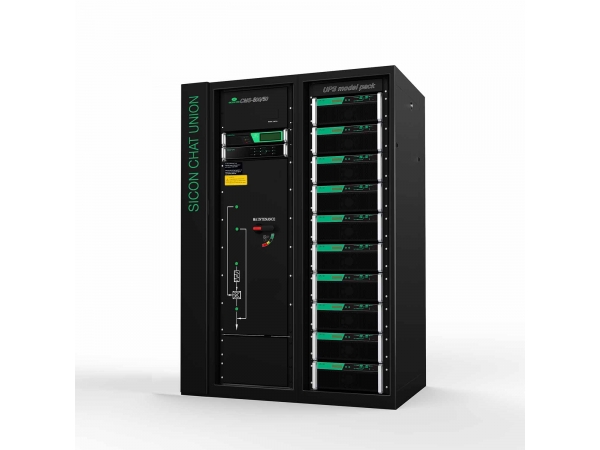

Sicon Modular Online UPS Power CMS-500/50
Power range: 50KVA-500KVA
Spec: 220/380VAC, 50/60Hz, 3-phase
Tech: high frequency modular UPS, rational redundancy. Modular, hot-swappable, field-replaceable STS, monitor, UPS module. Scalable from 50KVA to 500KVA. Parallel-capable up to 2000KVA.
Inquiry now
Spec: 220/380VAC, 50/60Hz, 3-phase
Tech: high frequency modular UPS, rational redundancy. Modular, hot-swappable, field-replaceable STS, monitor, UPS module. Scalable from 50KVA to 500KVA. Parallel-capable up to 2000KVA.
Overview
CMS UPS units are non-isolated, industrial level, green UPS, adopting advanced modular power protection concept. CMS Modular architecture can scale power as demand grows or as higher levels of availability are required. CMS UPS is industry-leading efficiency, availability, and performance for small, medium, and large data centers and mission critical environments.
Feature
1.Rational redundant structure
2.UPS module: 50 kVA; System: 500kVA
3.Great performance index：overall efficiency ≥ 95%(AC-AC), inverter efficiency ≥ 98%(DC-AC), THDI ≤ 3%, and input PF ≥ 0.99 N+X module-level redundancy UPS System
4.Multi-level decentralized control technology and Master-slave synchronization in sequency control which result in eliminate system failure bottleneck
5.Each module automatically even shares the input and output current, all UPS modules share batteries
6.Battery management: Battery discharge management, auto-transfer between floating and even charging, temperature compensation
7.Space-saving high density design, Rack-based for agility and aesthetics
8.Monitor Function：C/S-Oriented Architecture SICON Software which is available to monitor multiple UPS up to 600 sets;B/S-Oriented Architecture which is available to check via IE
9.Standard configuration：Manual maintenance bypass, SPD(Class C), RS232, RS485/RS422 Communication ports, Remote monitor software, day contacts
10.Optional configuration：EPO, Input/output Transformer, Battery Bank, IPDS(Intelligent Power Distribution System)
Application
IDC date center, government,telecom,bank,security,transportation,broadcast&TV network, HealthCare, Communication, E-business,Finance etc.
CMS UPS units are non-isolated, industrial level, green UPS, adopting advanced modular power protection concept. CMS Modular architecture can scale power as demand grows or as higher levels of availability are required. CMS UPS is industry-leading efficiency, availability, and performance for small, medium, and large data centers and mission critical environments.
Feature
1.Rational redundant structure
2.UPS module: 50 kVA; System: 500kVA
3.Great performance index：overall efficiency ≥ 95%(AC-AC), inverter efficiency ≥ 98%(DC-AC), THDI ≤ 3%, and input PF ≥ 0.99 N+X module-level redundancy UPS System
4.Multi-level decentralized control technology and Master-slave synchronization in sequency control which result in eliminate system failure bottleneck
5.Each module automatically even shares the input and output current, all UPS modules share batteries
6.Battery management: Battery discharge management, auto-transfer between floating and even charging, temperature compensation
7.Space-saving high density design, Rack-based for agility and aesthetics
8.Monitor Function：C/S-Oriented Architecture SICON Software which is available to monitor multiple UPS up to 600 sets;B/S-Oriented Architecture which is available to check via IE
9.Standard configuration：Manual maintenance bypass, SPD(Class C), RS232, RS485/RS422 Communication ports, Remote monitor software, day contacts
10.Optional configuration：EPO, Input/output Transformer, Battery Bank, IPDS(Intelligent Power Distribution System)
Application
IDC date center, government,telecom,bank,security,transportation,broadcast&TV network, HealthCare, Communication, E-business,Finance etc.
| System model | CMS-500/50 | |
| Maximum power | 50 kVA | |
| Power module model | 50 kVA | |
| Mains Input | Input mode | 3-phase +N +E, 1-phase +N +E |
| Input voltage | 380V/220V±20%, 400V/230V±20%, 415V/240V±20% | |
| Input frequency | 50Hz±10%, 60Hz±10% | |
| Power woke-in (Sec.) | 60sec | |
| THDI (%) | ＜3% | |
| Input PF | ≥0.99 | |
| Bypass Input | Input voltage | 380V/220V±20%, 400V/230V±20%, 415V/240V±20% |
| Input frequency | 50 Hz, 60 Hz | |
| Range of Frequency Synchro | 50 Hz±4%, 60 Hz±4% | |
| DC Input | Rated Input voltage | ±384VDC |
| Input voltage tolerance | ±345V~±440V DC | |
| Battery charging | Charging current limited | yes |
| Charging ability | 10 hours (2 hours back up) | |
| Stability of charging voltage | ±1% | |
| AC output | UPS power factor | 1 |
| Output voltage | 380V/220V AC, 400V/230V AC, 415V/240V AC | |
| Output frequency | ±4%;±0.2% (battery supply) | |
| Output voltage stability | ±1% | |
| Output voltage recovering time | ＜20ms (load 0~100% change) | |
| Overload ability | Operate 10mins with 125% load | |
| Transfer from mains to battery supply | 0ms | |
| Transfer from bypass to inverter supply | <1ms | |
| Peak factor | 3:01 | |
| Waveform distortion | ≤1% ( linear load ), ≤3%( non-linear load ) | |
| Overall efficiency | ≥95% (AC~AC), ≥98% (DC~AC) | |
| Load share precision | ≤5% | |
| Operation environment | Ambient temperature | -25℃～60℃ |
| Operating temperature | -5℃～40℃ | |
| Maximum operation altitude | ≤1500m | |
| Relative humidity | ≤95% non-cadency | |
| Protection degree | IP30 | |
| Cooling | Air cooling | |
| Applicable safety standards | EN62040-1-1:2003 IEC60950-1:2001 | |
| Electromagnetic compatibility | EN62040-2:2006 | |
| Acoustic noise | ≤55DB | |
| Others | Cabinet | Standard 19 inch cabinet |
| Monitor management system | UPSupervisor | |
| Interface | RS232, RS485 and 8 try contact, TCP/IP adapter, SNMP(optional) | |
| Display | Touch LCD/LED Screen | |
| Weight(kg) | 500 | |
