Uninterruptible Power System, High Frequency Modular UPS
Two available options: ERMS-12 modular UPS, or DSP-6KVA rack mount UPS
provide pure uninterruptable power supply to critical IT equipment
When AC power off, battery provide backup time to load
Remote shutdown function, remote turn off secondary server, to ensure running of critical sever
Inquiry now
provide pure uninterruptable power supply to critical IT equipment
When AC power off, battery provide backup time to load
Remote shutdown function, remote turn off secondary server, to ensure running of critical sever
Overview
Two available options: ERMS-12 modular UPS, or DSP-6KVA rack mount UPS
provide pure uninterruptible power supply to critical IT equipment
When AC power off, battery provide backup time to load
Feature
Two available options: ERMS-12 modular UPS, or DSP-6KVA rack mount UPS
provide pure uninterruptible power supply to critical IT equipment
When AC power off, battery provide backup time to load
Remote shutdown function, remote turn off secondary server, to ensure running of critical sever
Application
Micro data center series product
Two available options: ERMS-12 modular UPS, or DSP-6KVA rack mount UPS
provide pure uninterruptible power supply to critical IT equipment
When AC power off, battery provide backup time to load
Feature
Two available options: ERMS-12 modular UPS, or DSP-6KVA rack mount UPS
provide pure uninterruptible power supply to critical IT equipment
When AC power off, battery provide backup time to load
Remote shutdown function, remote turn off secondary server, to ensure running of critical sever
Application
Micro data center series product
|

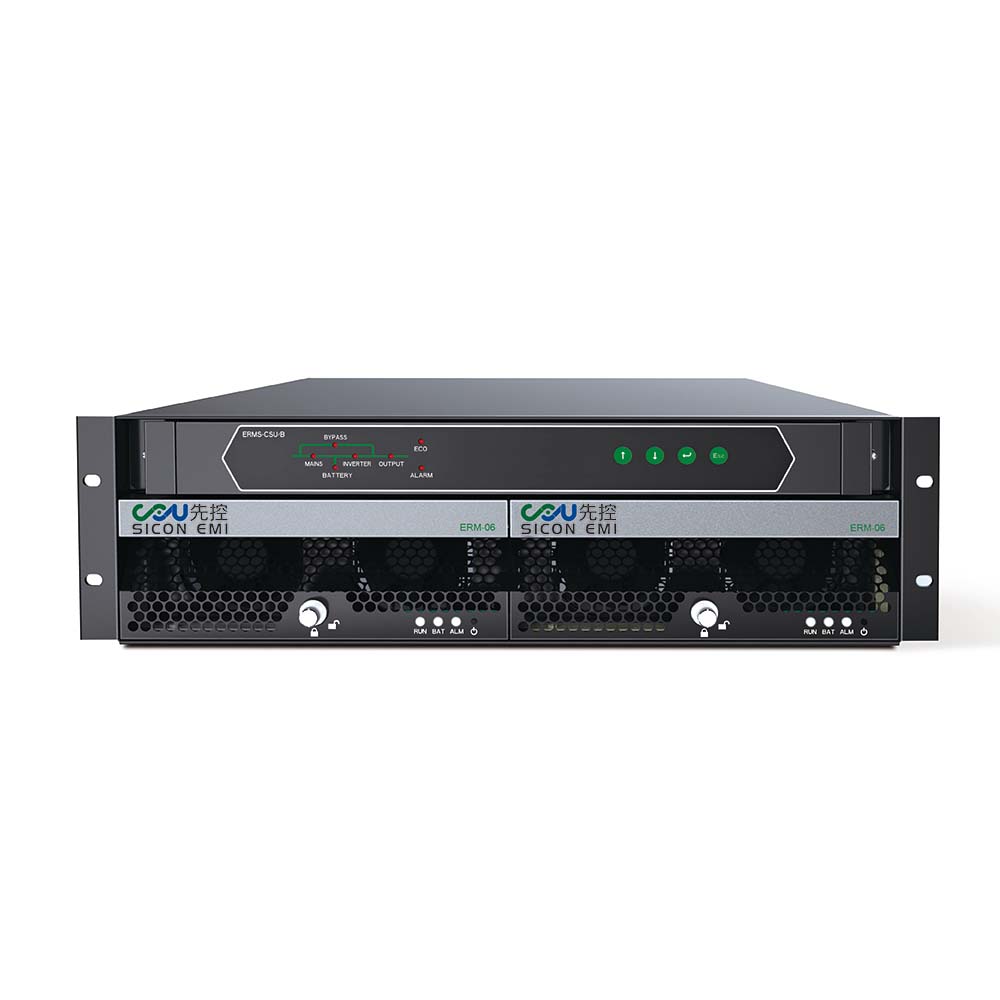

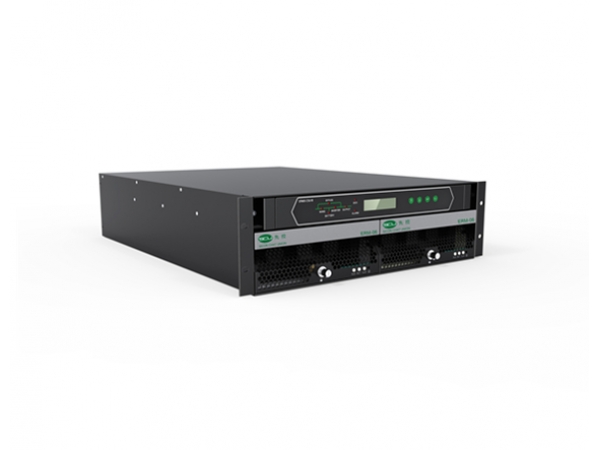

Product : ERMS-12/6 |
|
|
Product : DSP11-6KVA |
 |
| System model | ERMS-12/6 | |||||
| Maximum power | 12KVA | |||||
| Power module model | ERM-06 | |||||
| Mains Input | Input mode | 3-phase +N +E, 1-phase +N +E | ||||
| Input voltage | 380V/220V±20%, 400V/230V±20%, 415V/240V±20% | |||||
| Input frequency | 50Hz±10%, 60Hz±10% | |||||
| Power woke-in (Sec.) | 60sec | |||||
| THDI (%) | ＜3% | |||||
| Input PF | ≥0.99 | |||||
| Bypass Input | Input voltage | 380V/220V±20%, 400V/230V±20%, 415V/240V±20% | ||||
| Input frequency | 50 Hz, 60 Hz | |||||
| Range of Frequency Synchro | 50 Hz±4%, 60 Hz±4% | |||||
| DC Input | Rated Input voltage | ±240VDC | ||||
| Input voltage tolerance | ±216V~±246V DC | |||||
| Battery charging | Charging current limited | yes | ||||
| Charging ability | 10 hours (2 hours back up) | |||||
| Stability of charging voltage | ±1% | |||||
| AC output | UPS power factor | 0.9 | ||||
| Output voltage | 380V/220V AC, 400V/230V AC, 415V/240V AC | |||||
| Output frequency | ±4%;±0.2% (battery supply) | |||||
| Output voltage stability | ±1% | |||||
| Output voltage recovering time | ＜20ms (load 0~100% change) | |||||
| Overload ability | Operate 10mins with 125% load | |||||
| Transfer from mains to battery supply | 0ms | |||||
| Transfer from bypass to inverter supply | <1ms | |||||
| Peak factor | 3:01 | |||||
| Waveform distortion | ≤1% ( linear load ), ≤3%( non-linear load ) | |||||
| Overall efficiency | ≥95% (AC~AC), ≥98% (DC~AC) | |||||
| Load share precision | ≤5% | |||||
| Operation environment | Ambient temperature | -25℃～60℃ | ||||
| Operating temperature | -5℃～40℃ | |||||
| Maximum operation altitude | ≤1500m | |||||
| Relative humidity | ≤95% non-cadency | |||||
| Protection degree | IP30 | |||||
| Cooling | Air cooling | |||||
| Applicable safety standards | EN62040-1-1:2003 IEC60950-1:2001 | |||||
| Electromagnetic compatibility | EN62040-2:2006 | |||||
| Acoustic noise | ≤55DB | |||||
| Others | Cabinet | Standard 19 inch cabinet | ||||
| Monitor management system | UPSupervisor | |||||
| Interface | RS232, RS485, 2 try contact, TCP/IP adapter | |||||
| Display | LCD/LED | |||||
| Weight(kg) | 12 | |||||
