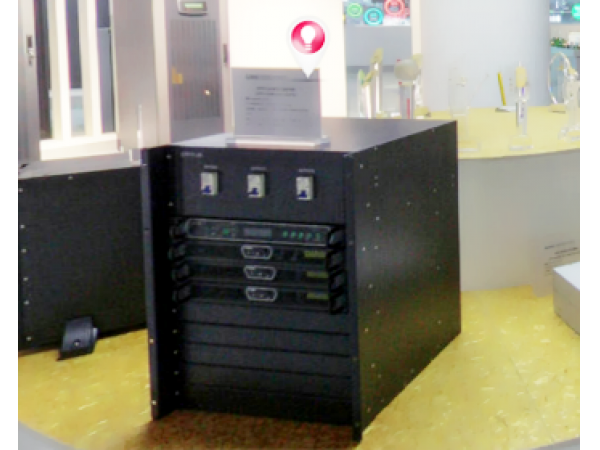

24KVA 48V 110V 220V Modular Inverter
System power: 24KVA
Inverter module: 3KVA
Dimension (w×d×h) mm: 442*420*575
Overview
DTP System
48V Modular Inverter System
Optional,
110V Modular Inverter System
220V Modular Inverter System
Sicon Modular Inverter System is pure sine wave, single phase, DC-AC inverter for critical telecom and electric power equipments. It is modular architecture,consisting of system rack and inverter modules, which could configure various power capacities by adding modules. With N+1 redundant design, if one inverter fails,it will withdraw from the system and the inverter system keeps supply to load.
DTP inverter system satisfies complex telecommunications and industrial power demands, and provides ultimate flexibility for your current and future power requirements.
Feature
User friendly LCD+LED, accurate display of system operation statues
Monitor module and inverter module are all hot swap, with self-detection and alarm function
Performance index indication and display, event record for failure tracing
Protection functions: input/output under or over voltage,overload protection to protect load equipment
System transfer: fast transfer under synchronize or non-synchronize
Communication interface: output dry contact, RS232/485
DC priority or AC priority(bypass) are available. And user could choose one as priority in monitor module.
Application
Telecommunication station, electrical substation and environments with poor utility grid conditions.
Related Products,
| Modular Inverter | Model | Contact Sicon |
| Sicon DTP 3kVA, Scalable to 9kVA, 220V 230V 240V | DTP11-09 | enquiry@scupower.com |
| Sicon DTP 3kVA, Scalable to 18kVA, 220V 230V 240V | DTP11-18 | enquiry@scupower.com |
| Sicon DTP 3kVA, Scalable to 24kVA, 220V 230V 240V | DTP11-24 | enquiry@scupower.com |
| Monoblock Inverter | ||
| Sicon DHP 1kVA 220V 230V 240V | DHP11-1kVA | enquiry@scupower.com |
| Sicon DHP 2kVA 220V 230V 240V | DHP11-2kVA | enquiry@scupower.com |
| Sicon DHP 3kVA 220V 230V 240V | DHP11-3kVA | enquiry@scupower.com |
| Modular UPS | ||
| Sicon ERMS 6kVA, Scalable to 12kVA, 220V 230V 240V 1P3W | ERMS-12/6 | enquiry@scupower.com |
| Sicon ERMS 6kVA, Scalable to 24kVA, 220V 230V 240V 1P3W | ERMS-24/6 | enquiry@scupower.com |
| Sicon ERMS 6kVA, Scalable to 36kVA, 220V 230V 240V 1P3W | ERMS-36/6 | enquiry@scupower.com |

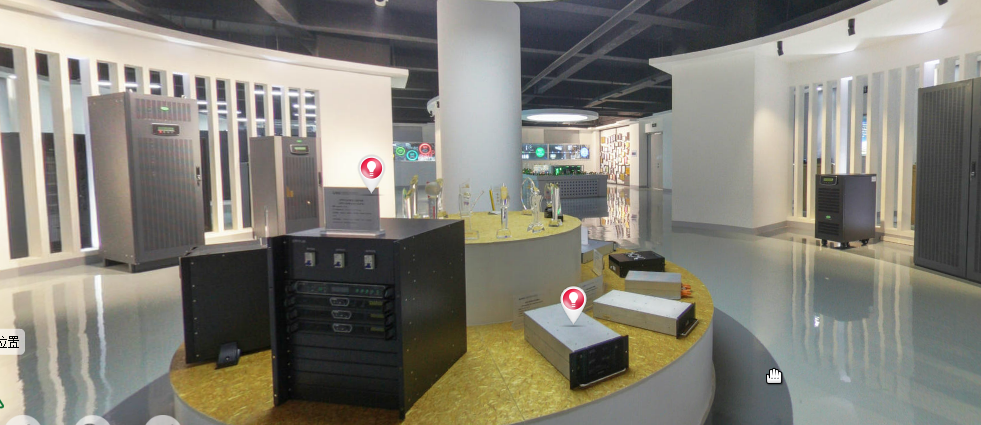

Sicon Online Show Room
DTP11-24
System power: 24KVA
Module power: 3KVA
Slot no.: 8
Dimension (H×W×D) mm: 575*442*420
Bypass √
48vdc 110vdc 220vdc input
220vac 230vac 240vac output
| Model | DTP11-24 | ||
| Max Capacity | 9KVA (8 Modules Parallel ) | ||
| DC Input | Rated Voltage | 48VDC, 110VDC, 220VDC | |
| Voltage Range | 42V～57V, 94V～128V, 189V～256V | ||
| Input Reflected Wind Band Noise Current | 10% | ||
| Input Reflected Weight Noise Current | 1% | ||
| AC Output | Output Voltage | 220V/ 230V/ 240V | |
| Voltage Precision | ±1% | ||
| Output Frequency | 50Hz/60Hz±1% | ||
| 60Hz±0.6 | |||
| Power Factor | 0.8 | ||
| Voltage Distortion | 3% (Liner Load) / 5% (Non-Liner Load) | ||
| Load Peak Factor | 3 | ||
| Overall Efficiency | ≥90% | ||
| Load Share Precision | ≤5% | ||
| Overload Capacity | 105~125% Load ≥60s; 126~150% Load ≥10s | ||
| Transfer Time | ≤4ms | ||
| Environment | Operating Temperature | -5℃~40℃ | |
| Relative Humidity | ≤ 93% Non-Cadency | ||
| Ambient Temperature | -40℃~70℃ 96% Non-Cadency | ||
| Operating Altitude | ≤1000m, De-Rating By1℃ Each 200m Higher | ||
| Mechanical | Acoustic Noise: (1m) | ≤65DB | |
| Dimension（H× W×D）Mm | 575*442*420 | ||
| Rack Weight | 23kg | ||
| Safety Compliance | EN62040-1-1:2003 EN60950-1:2001 | ||
| EN61000-4-6 | |||
| RS232, RS485 | |||
| Environmental Compliance | ETS300 753 | ||
