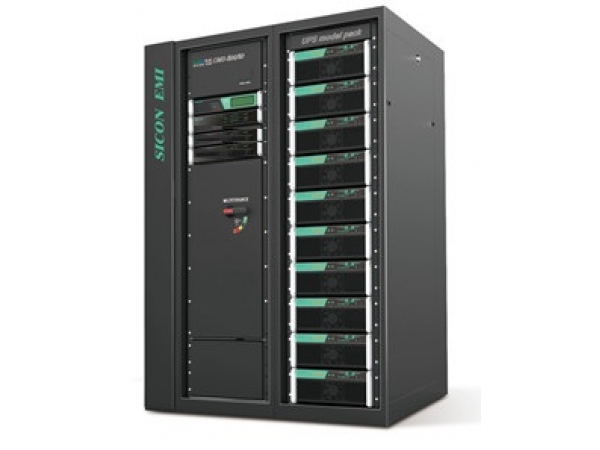

DSM Modular UPS 120-640KVA

System Capacity: 120kVA, 200kVA, 400kVA, 640kVA
Module Capacity: 40KVA
3/3, 3/1, 1/3, 1/1; 50/60Hz; BOTTOM/TOP feed
High Frequency MODULAR UPS
Choice of UPS module result in rational redundancy
Modular, hot-swappable, field-replaceable STS, monitor, UPS module.
Scalable from 120 KVA to 600 KVA.
Inquiry now

Overview

Sicon DSM is non-isolated, world class, redundant, scalable, 3 Phase Online UPS power protection system designed to cost effctively provide high levels of availability.

DSM is a true modular uninterruptible power supply, its architecture can scale power as demand grows or as higher levels of availability are required, perfect integrating into today's data center designs.

DSM online double conversion ups is industry-leading efficiency, availability, and performance for small, medium, large data centers and mission critical environments.

DSM Support Lithium-ion Battery Solution.



    Feature


3Phase Uninterruptible Power Supplies 40kVA- 80kVA -120kVA to -to 640kVA


UPS module: 40 kVA

System frame/chassis: 120kVA, 200kVA, 400kVA, 640kVA

Transformer Free UPS technology,  lower space and weight



Online double Conversion (VFI-SS-111) · Rational redundant structure · N+X redundancy

High efficiency · AC/DC, DC/AC 95%, DC/AC 98% efficiency

Input low current harmonic distortion · THDI ≤ 3%

High input power factor · input PF ≥ 0.99

High output power factor · Output PF = 0.9

Static and Maintenance bypass switch

Short circuit and overload protection

RS232 serial ports and dry contacts

Multi-level decentralized control technology and Master-slave synchronization in sequency control

Each module automatically even shares the input and output current, all UPS modules share batteries

Selectable input/ output voltage/ frequency range

Split by-pass


Battery management:

Battery discharge management

Auto-transfer between floating and even charging

Temperature compensation

Optional SNMP, Modbus adapters

Optional configuration: GENSET, EPO, Transformer, Battery Bank, IPDS


2 year warranty, 10 years spare parts support



Application

Date Center ups solution




Sicon Solutions

Industrial Modular UPS N+X Solution

2N Power Solution


Sicon References

Sicon UPS at International Fair

Astronomy Case-Sicon Modular UPS Applied to the World’s Largest Single-aperture Telescope Base


Sicon Online Show Room


Product: CMS-120

• Adaptable 40 to 120 kVA power capacity
• 40 kVA UPS module (CM40)
• Configuration: 3 slots
• Components: STS module, Monitor module, UPS module, Power distribution
• Top or bottom feed
• System Dimension: 600*1000*1600 (W*D*H) mm
• Module Dimension: 482*700*176 (W*D*H) mm

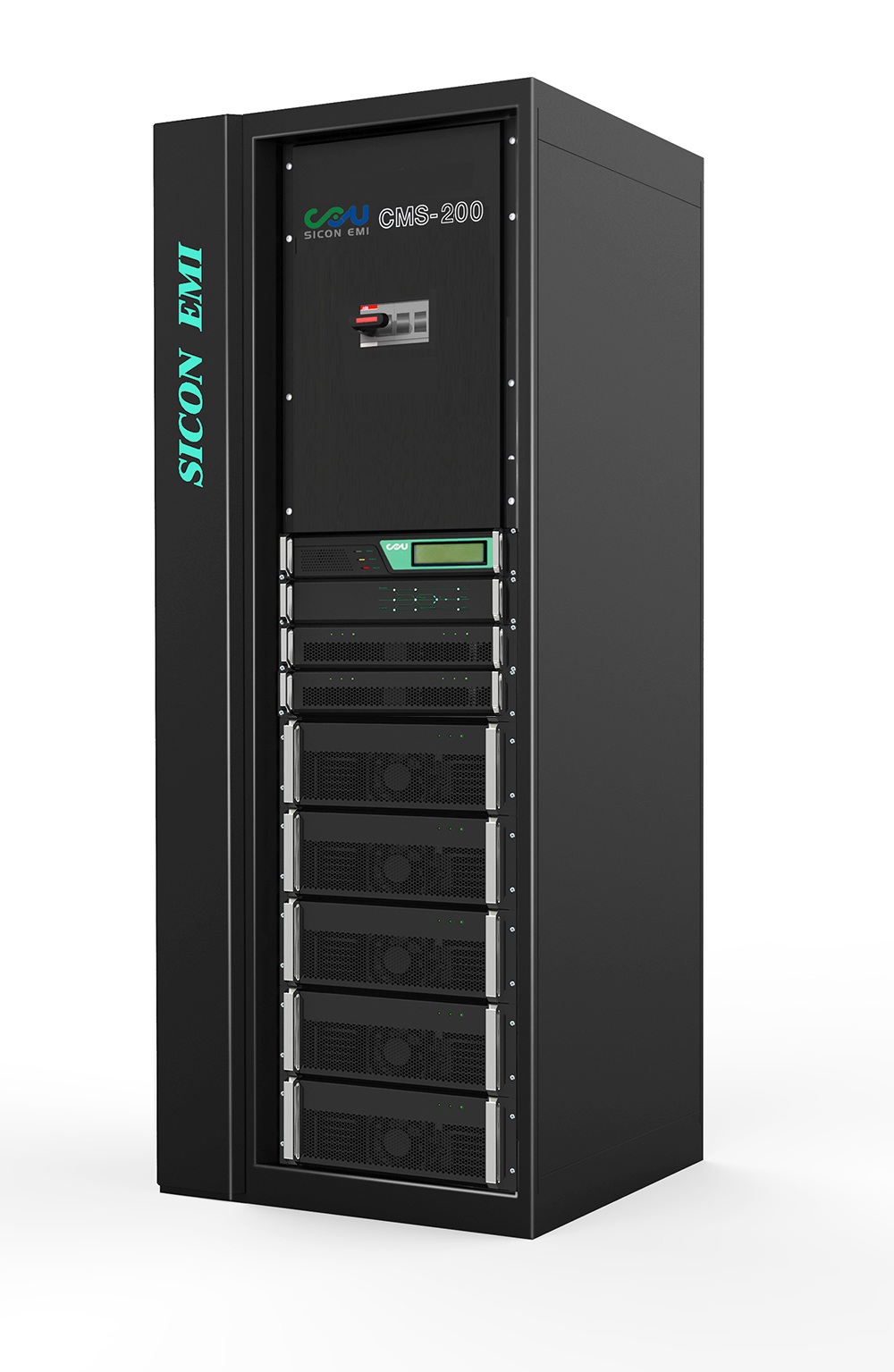

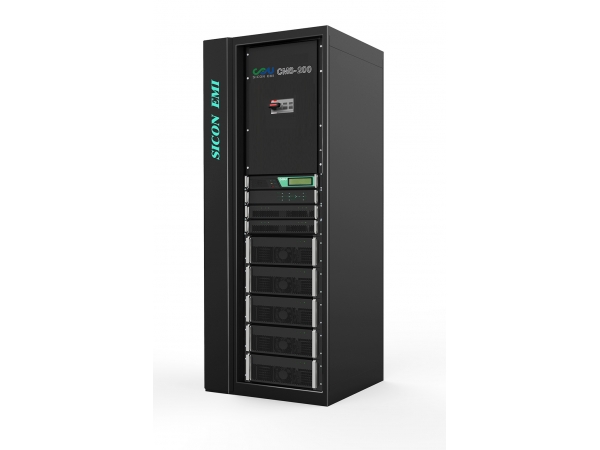

Product: CMS-200

• Adaptable 40 to 200 kVA power capacity
• 40 kVA UPS module (CM40)
• Configuration: 5 slots
• Components: STS module, Monitor module, UPS module, Power distribution
• Top or bottom feed
• System Dimensions: 800*1000*2000(W*D*H) mm
• Module Dimensions: 482*700*176 (W*D*H) mm




Product: CMS-400

• Adaptable 40 to 400 kVA power capacity
• 40 kVA UPS module (CM40)
• Configuration: 10 slots
• Components: STS module, Monitor module, UPS module, Power distribution
• Top or bottom feed
• System Dimensions: 1400*1000*2000(W*D*H) mm
• Module Dimensions: 482*700*176 (W*D*H) mm




Product: DSM640

Adaptable 40 to 640 kVA power capacity
• 40 kVA UPS module (CM40)
• Configuration: 16 slots
• Components: STS module, Monitor module, UPS module, Power distribution
• Top or bottom feed
• System Dimensions: 2200*1000*2000(W*D*H) mm
• Module Dimensions: 482*700*176(W*D*H) mm
