EVHS HPC Ultra Fast Charging Station

Application: highway rest stops, petrol stations etc.

Compatible vehicles: new generation of electric vehicles with large capacity batteries and long endurance abilities.


Overview:

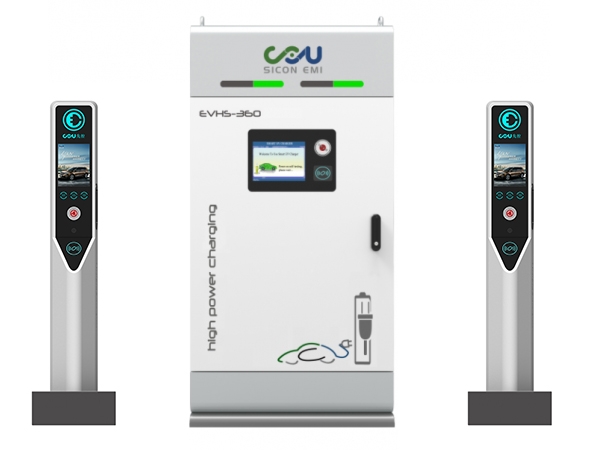

EVHS360 High Power Ultra Fast Charging Station is a new and innovative solution to the growing demand for fast high current charging of next-generation electric vehicles. EVHS360 system adopts modular structure design and the most advanced ultra-fast charging technology. It consists of one power stack and two charge posts.

Inquiry now
Feature:
Suitable for all current and next generation electric vehicles
Modular design, power stack up to 360kW~500kW
Distance between power stack and charging post(s) up to 150m.
Wide voltage range: 150-1000V
Supports CCS connector up to 500A liquid-cooled cables
Daylight readable touch screen display
RFID authorization
Low operational noise
Customizable


Model

EVHS-360

AC Input for the DC Output

Power connection

3P + N + PE

Voltage range

400 Vac ± 20 %

Frequency

50 Hz or 60 Hz

Power factor

> 0.99

Overall efficiency

95%

DC Output

Voltage

150Vdc to 1000 Vdc

Current

360A

Nominal Power

360 kW

General Specifications

Combo DC outputMode-4)

DC-Interface

CCS2

Display

12.1’’ TFT Color screen

RFID system

ISO/IEC14443A/B, Mifare;

Network connection

3G (GSM or CDMA) | LAN | Wi-Fi

Communication Protocols

OCPP 1.6

Environment

Indoor / outdoor

Operating temperature

-35ºC-60ºC ( -20ºC to -35ºC, heating required)

Storage Temperature

-40 ºC to +70 ºC

Operating humidity

≤95% non-condensing

Altitude

Up to 1000 m

Protection degree

IP54 , IK10

Acoustic noise

<55 dB

Dimension (W*D*H) mm

Power stack:1300*750*1950mm

Charge post: 320*280*1740mm

Compliance and safety

EN 61851, EN 62196,
DIN 70121, ISO 15118

Model

EVHS-360

AC Input for the DC Output

Power connection

3P + N + PE

Voltage range

400 Vac ± 20 %

Frequency

50 Hz or 60 Hz

Power factor

> 0.99

Overall efficiency

95%

DC Output

Voltage

150Vdc to 1000 Vdc

Current

360A

Nominal Power

360 kW

General Specifications

Combo DC outputMode-4)

DC-Interface

CCS2

Display

12.1’’ TFT Color screen

RFID system

ISO/IEC14443A/B, Mifare;

Network connection

3G (GSM or CDMA) | LAN | Wi-Fi

Communication Protocols

OCPP 1.6

Environment

Indoor / outdoor

Operating temperature

-35ºC-60ºC ( -20ºC to -35ºC, heating required)

Storage Temperature

-40 ºC to +70 ºC

Operating humidity

≤95% non-condensing

Altitude

Up to 1000 m

Protection degree

IP54 , IK10

Acoustic noise

<55 dB

Dimension (W*D*H) mm

Power stack:1300*750*1950mm

Charge post: 320*280*1740mm

Compliance and safety

EN 61851, EN 62196,
DIN 70121, ISO 15118
